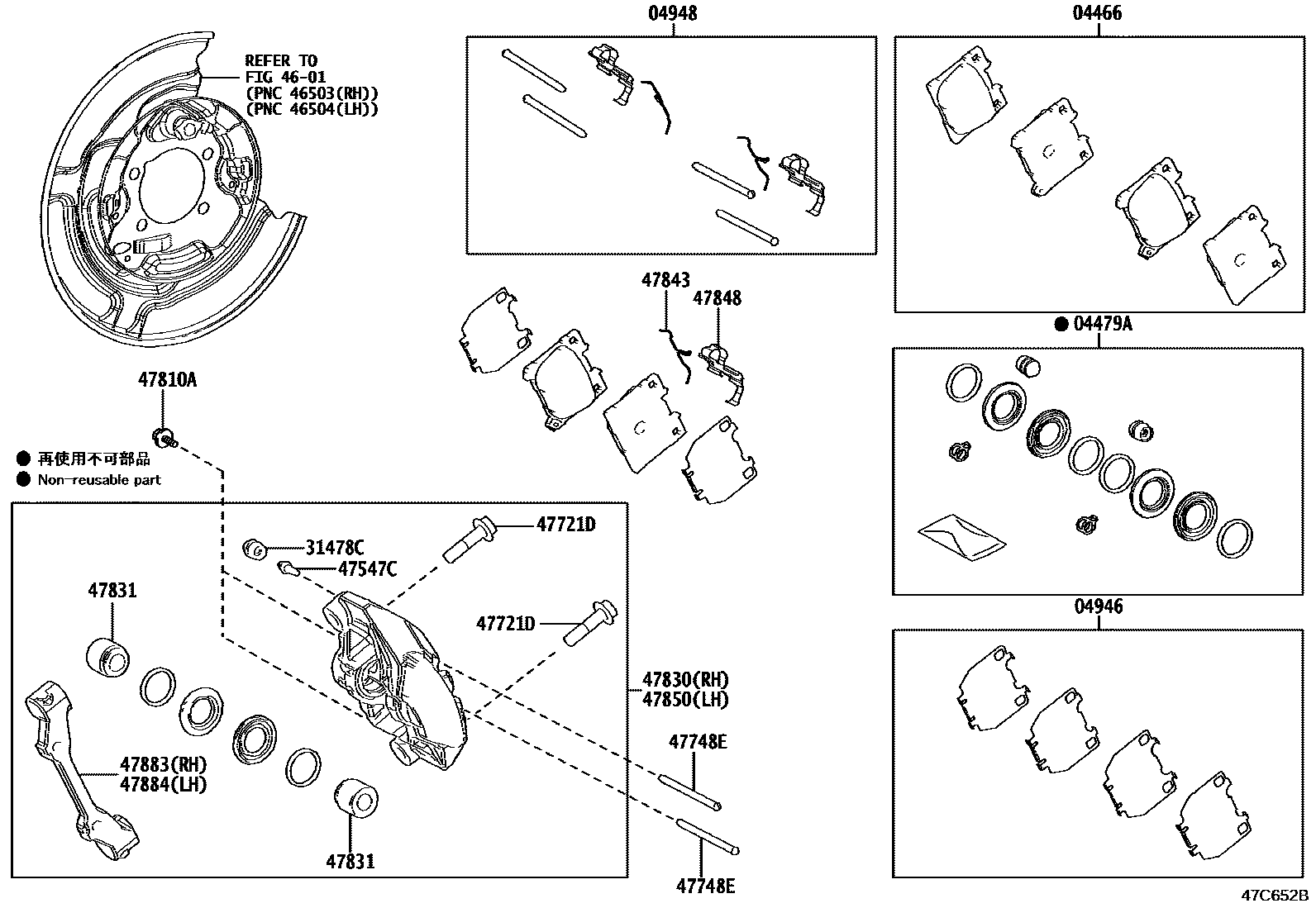

Toyota YARIS GR — REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK AK NS380H
MARK AK NS380H
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
SEBASTIEN OGIER EDITION *(S)&"HIGH PERFORMANCE"*(H)OR*(I)&FRONT WHEEL BRAKE-18INCHES DISC(BLUE PAINTED)
4601
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
*12-1.25PX48.1-23.6
*12-1.25PX48.1-23.6
47748EPIN, W/HOLE(FOR REAR DISC BRAKE)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47830CYLINDER ASSY, DISC BRAKE, REAR RH
47831PISTON, REAR DISC BRAKE
47843CLIP, REAR DISC BRAKE PIN HOLD
47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
47850CYLINDER ASSY, DISC BRAKE, REAR LH
47883BRACKET, CALIPER SUPPORT, REAR RH
47884BRACKET, CALIPER SUPPORT, REAR LH
17 parts on this diagram · 1 diagram in section
