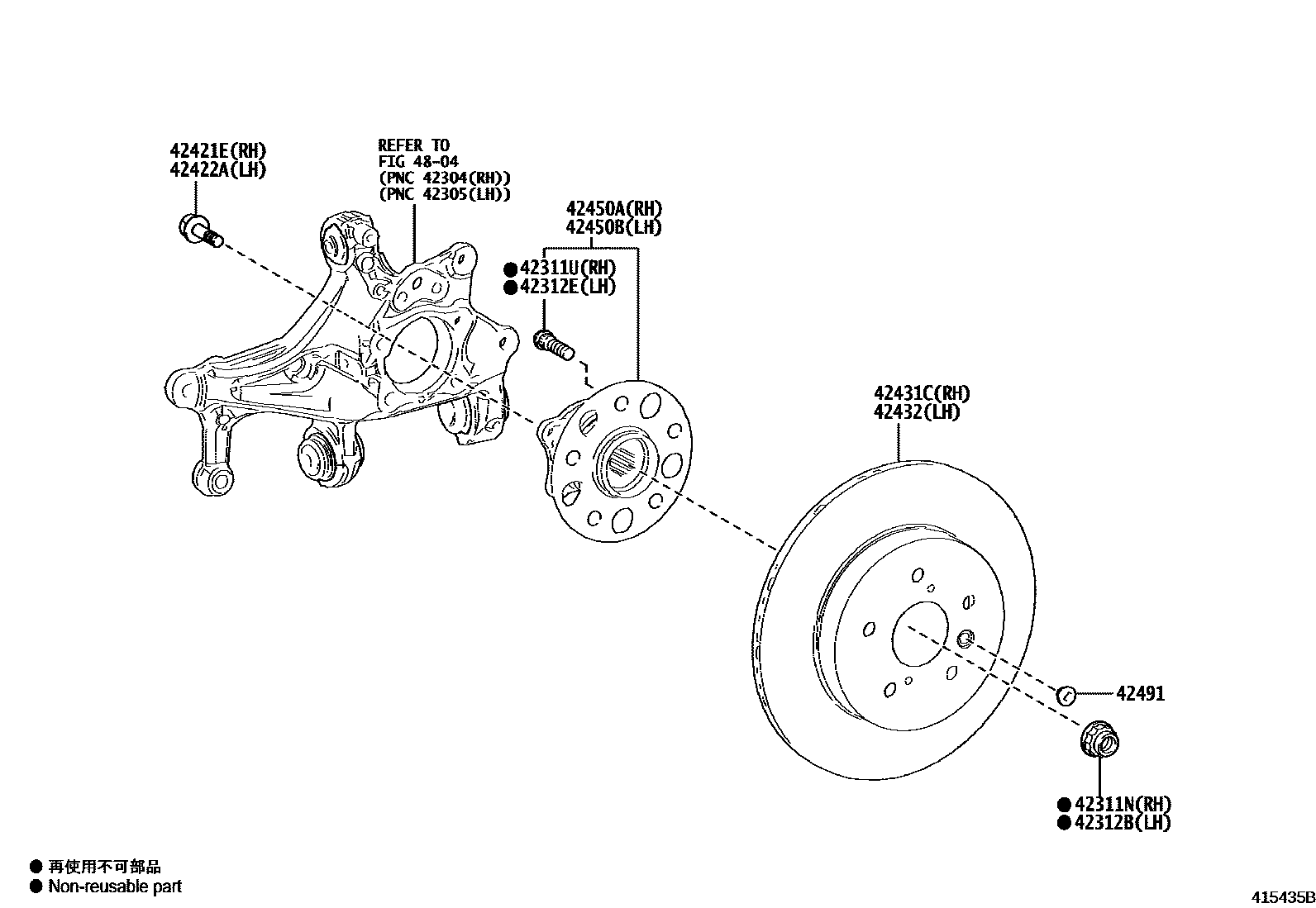

Toyota YARIS GR — REAR AXLE SHAFT & HUB

0001 1 0002 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-22001iGXPA16¥220202008-202404

main90177-22001iGXPA16..ARL,EUR¥220202404

main90177-22001iGXPA16..CHI¥220202412

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iGXPA16¥240202008-202404

main90942-02049iGXPA16..ARL,EUR¥240202404

main90942-02049iGXPA16..CHI¥240202412

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-22001iGXPA16¥220202008-202404

main90177-22001iGXPA16..ARL,EUR¥220202404

main90177-22001iGXPA16..CHI¥220202412

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iGXPA16¥240202008-202404

main90942-02049iGXPA16..ARL,EUR¥240202404

main90942-02049iGXPA16..CHI¥240202412

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406iGXPA16¥160202008-202404

main90105-12406iGXPA16..ARL,EUR¥160202404

main90105-12406iGXPA16..CHI¥160202412

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406iGXPA16¥160202008-202404

main90105-12406iGXPA16..ARL,EUR¥160202404

main90105-12406iGXPA16..CHI¥160202412

42431CDISC, REAR RH

main42431-52190iGXPA16¥25,700202008-202404

main42431-52190iGXPA16..ARL,EUR¥25,700202404

main42431-52190iGXPA16..CHI¥25,700202412

42432DISC, REAR LH

main42432-52010iGXPA16¥25,700202008-202404

main42432-52010iGXPA16..ARL,EUR¥25,700202404

main42432-52010iGXPA16..CHI¥25,700202412

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-42060iGXPA16¥11,900202008-202404

main42410-42060iGXPA16..ARL,EUR¥11,900202404

main42410-42060iGXPA16..CHI¥11,900202412

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-42060iGXPA16¥11,900202008-202404

main42410-42060iGXPA16..ARL,EUR¥11,900202404

main42410-42060iGXPA16..CHI¥11,900202412

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iGXPA16¥140202008-202404

main47491-22020iGXPA16..ARL,EUR¥140202404

main47491-22020iGXPA16..CHI¥140202412

4804

12 parts on this diagram · 2 diagrams in section
