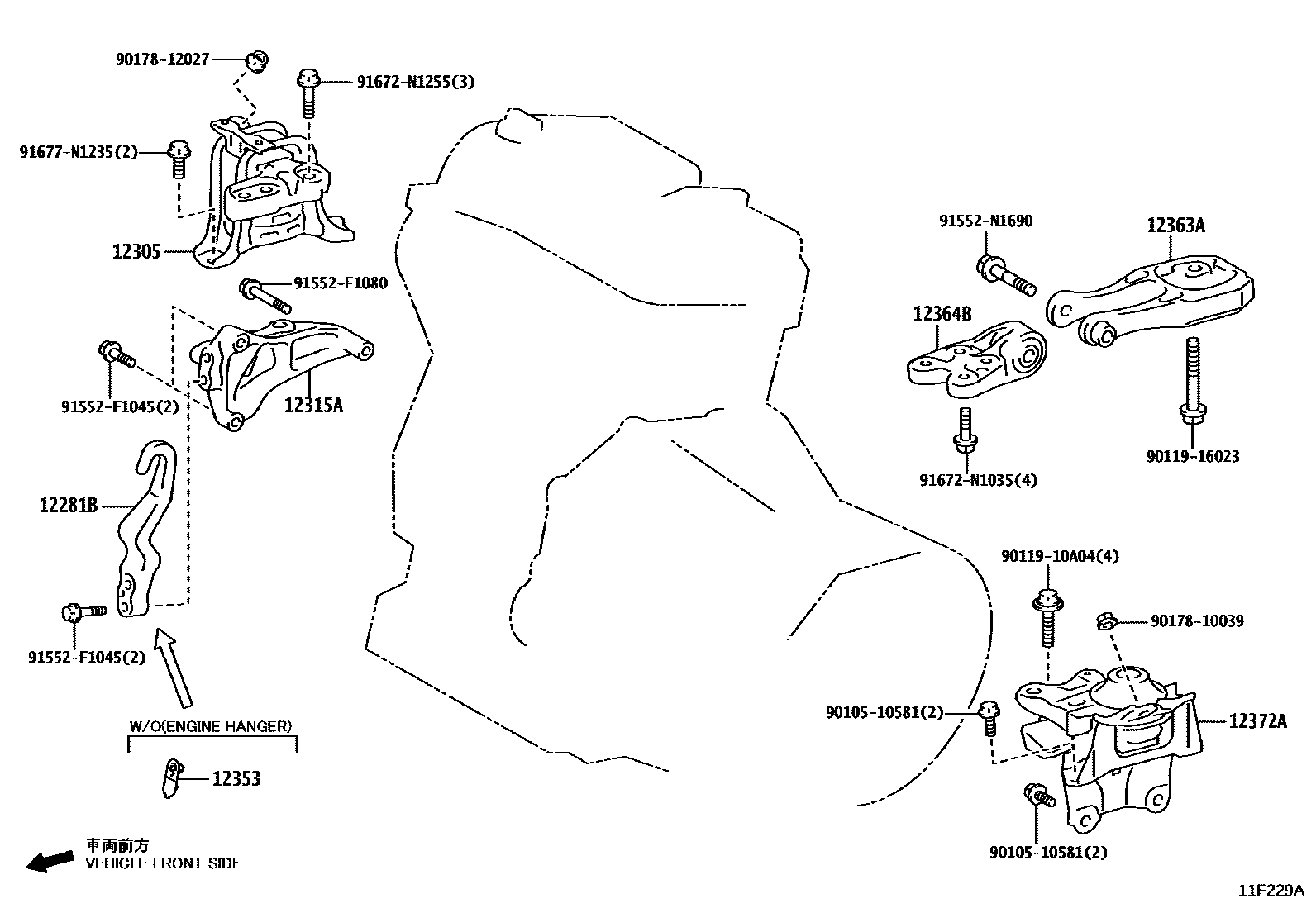

Toyota YARIS GR — MOUNTING

12281BHANGER, ENGINE, NO.1

main12281-25030iG16EGTS..GXPA16..CHI¥4,100202412

main12281-25030iG16EGTS..GXPA16¥4,100202008-202404

main12281-25030iG16EGTS..GXPA16..ARL,EUR¥4,100202404

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-18050iG16EGTS..GXPA16..CHI¥8,900202412

main12305-18050iG16EGTS..GXPA16¥8,900202008-202404

main12305-18050iG16EGTS..GXPA16..6F..(ARL,EUR)¥8,900202404

main12305-18070iG16EGTS..GXPA16..8FC¥8,900202404

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-18010iG16EGTS..GXPA16¥4,010202008-202404

main12315-18010iG16EGTS..GXPA16..ARL,EUR¥4,010202404

main12315-18010iG16EGTS..GXPA16..CHI¥4,010202412

12353CAP, ENGINE MOUNTING BRACKET

main12353-15010iG16EGTS..GXPA16..CHI¥190202412

main12353-15010iG16EGTS..GXPA16¥190202008-202404

main12353-15010iG16EGTS..GXPA16..ARL,EUR¥190202404

12363AROD, ENGINE MOVING CONTROL

main12363-18010iG16EGTS..GXPA16..CHI¥5,400202412

main12363-18010iG16EGTS..GXPA16..6F..(ARL,EUR)¥5,400202404

main12363-18010iG16EGTS..GXPA16¥5,400202008-202404

main12363-18030iG16EGTS..GXPA16..8FC¥5,400202404

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-18010iG16EGTS..GXPA16..CHI¥3,500202412

main12364-18010iG16EGTS..GXPA16¥3,500202008-202404

main12364-18010iG16EGTS..GXPA16..6F..(ARL,EUR)¥3,500202404

main12364-18030iG16EGTS..GXPA16..8FC¥3,500202404

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-18010iG16EGTS..GXPA16¥9,500202008-202403

sub12372-18011¥8,700

main12372-18011iG16EGTS..GXPA16..6F..(ARL,EUR)¥8,700202404

main12372-18011iG16EGTS..GXPA16..CHI¥8,700202412

main12372-18030iG16EGTS..GXPA16..8FC¥6,600202404

9010510581

main90105-10581¥100

9011910A04

main90119-10A04¥210

9011916023

main90119-16023¥490

9017810039

main90178-10039¥100

9017812027

main90178-12027¥100

91552F1045

main91552-F1045¥120

91552F1080

main91552-F1080¥190

91552N1690

main91552-N1690¥430

91672N1035

main91672-N1035¥120

91672N1255

main91672-N1255¥240

91677N1235

main91677-N1235¥190

18 parts on this diagram · 1 diagram in section
