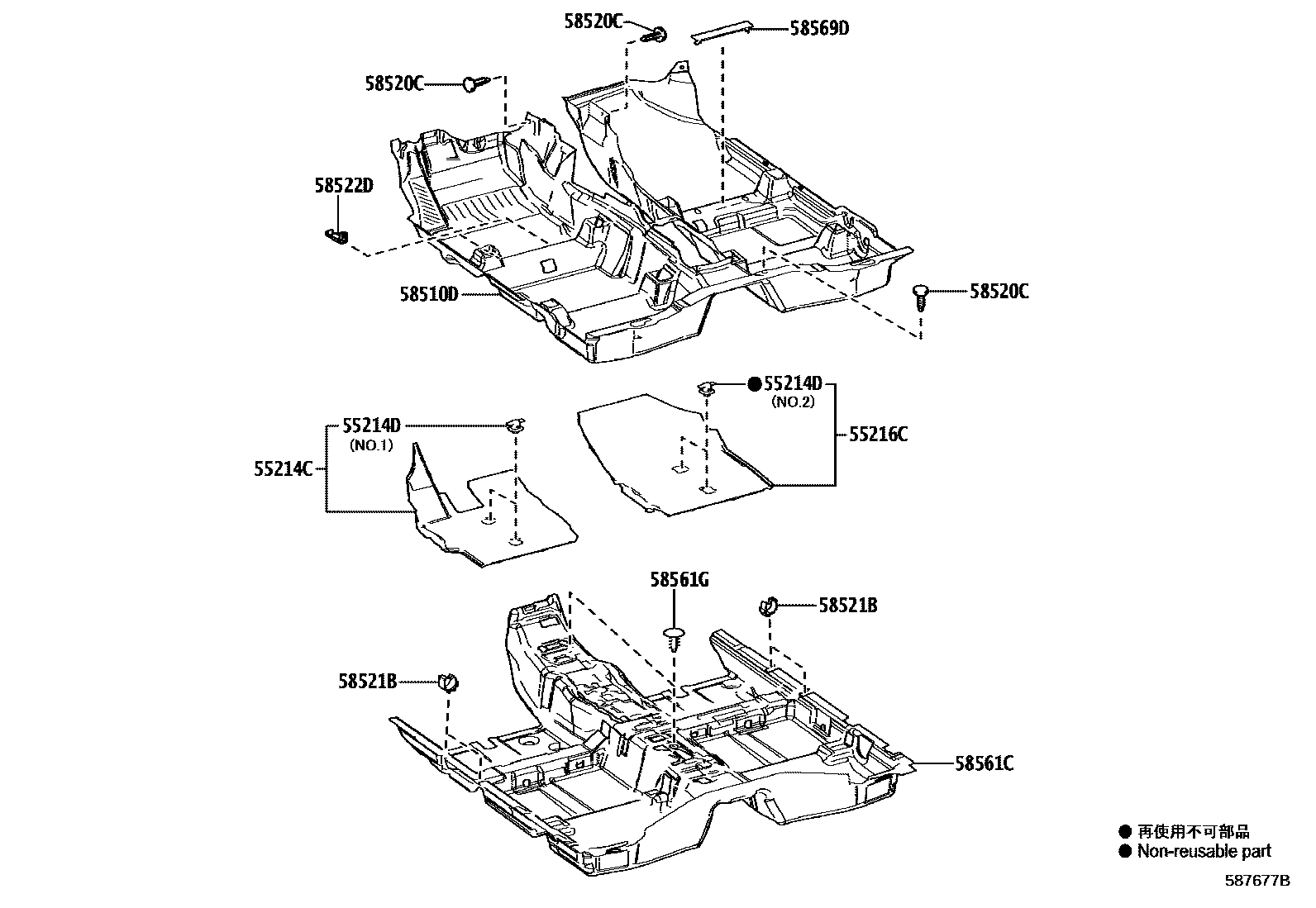

Toyota YARIS GR — MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55214DCLIP(FOR DASH PANEL INSULATOR PAD)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
55216CPAD, DASH PANEL INSULATOR, NO.4
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58522DHOOK, FLOOR CARPET, NO.2
58561CSILENCER, FRONT FLOOR, NO.1
58561GCLIP(FOR FRONT FLOOR SILENCER)
58569DCOVER, FRONT FLOOR CAUTION PLATE
10 parts on this diagram · 2 diagrams in section
