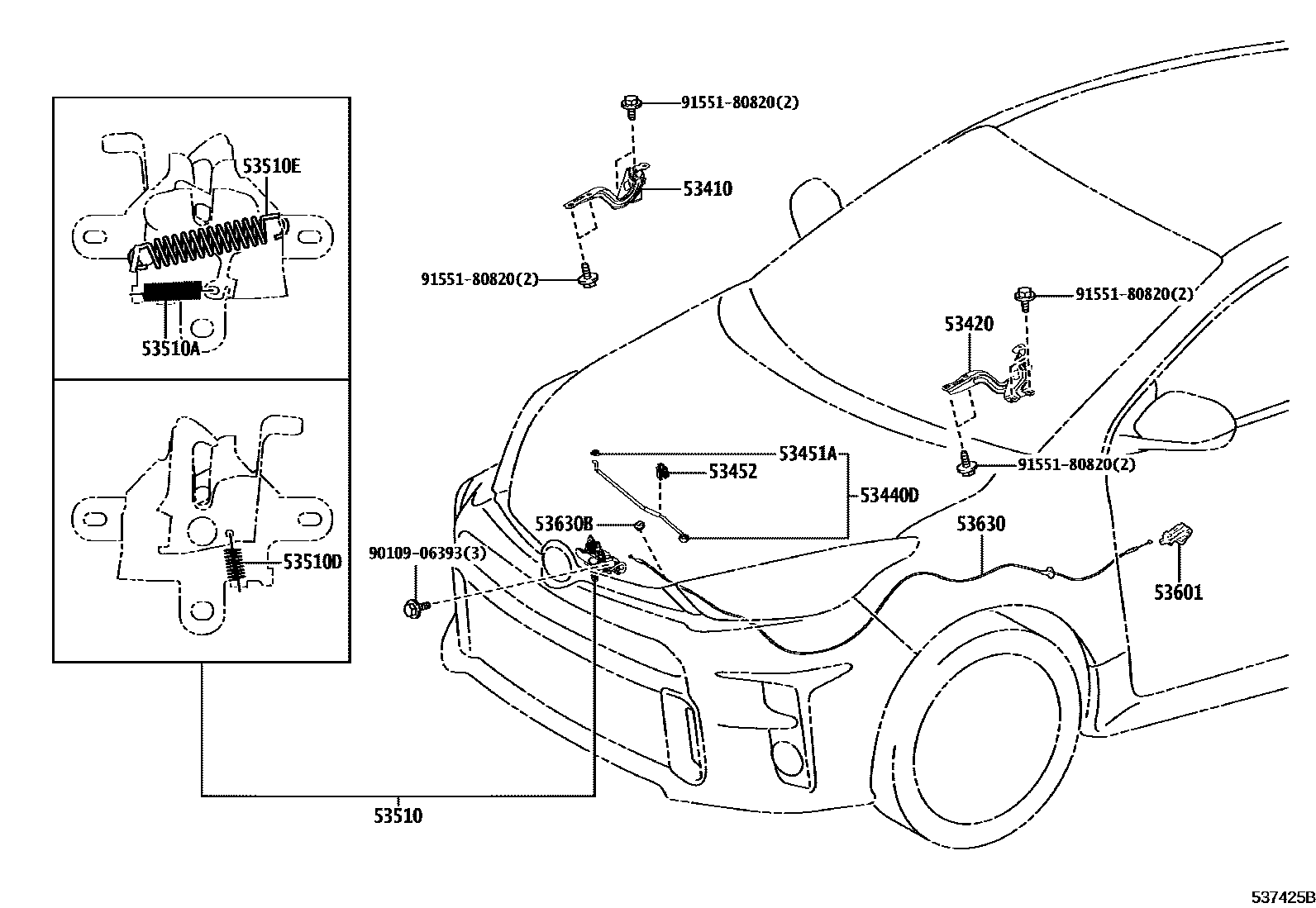

Toyota YARIS GR — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-52490iGXPA16¥1,700202008-202404

53420HINGE ASSY, HOOD, LH

main53420-52500iGXPA16¥1,700202008-202404

53440DSUPPORT ASSY, HOOD

main53440-K0010iGXPA16¥1,060202008-202404

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iGXPA16¥220202008-202404

53452HOLDER, HOOD STAY

main53452-12130iGXPA16¥340202008-202404

53510LOCK ASSY, HOOD

main53510-52A00iGXPA16..RHD¥3,520202008-202404

main53510-52A60iGXPA16..LHD202008-202404

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iGXPA16¥90202008-202404

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iGXPA16¥90202008-202404

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-14085iGXPA16¥120202008-202404

WD=1.4,CW=12

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iGXPA16202008-202404

BLACK,TRIM2#

main53601-30100-C0iGXPA16202404

BLACK,TRIM2#,3#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52240iGXPA16..RHD¥990202008-202404

main53630-52250iGXPA16..LHD202008-202404

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iGXPA16..LHD¥80202008-202404

9010906393

main90109-06393¥80

9155180820

main91551-80820¥80

14 parts on this diagram · 2 diagrams in section
