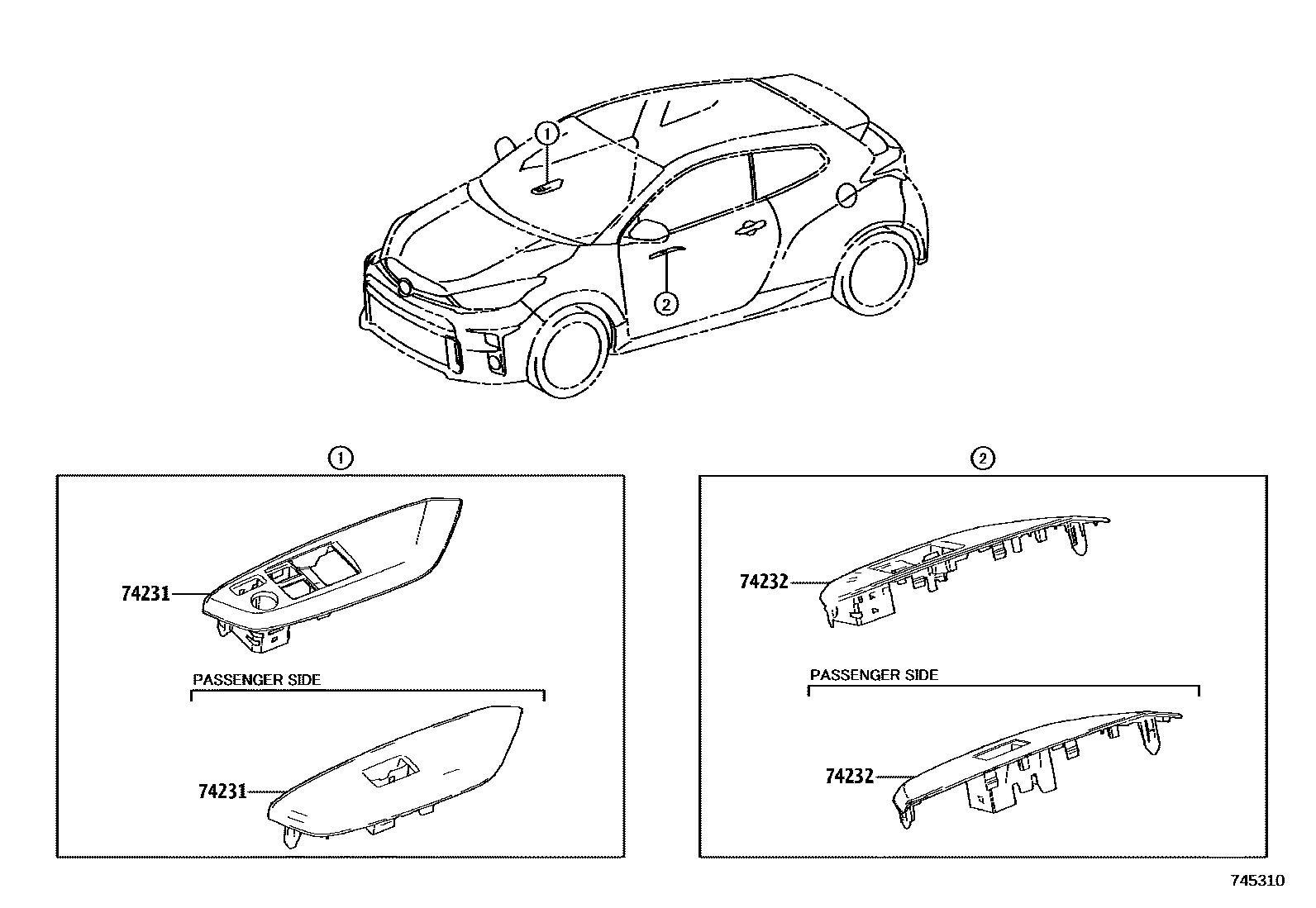

Toyota YARIS GR — ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52B60-C0iGXPA16..RHD202008-202404

BLACK,TRIM2#

main74231-52B70-C0iGXPA16..LHD202008-202404

BLACK,TRIM2#

main74231-52D20-C0iGXPA16..LHD202404

BLACK,TRIM2#,3#

main74231-52D30-C0iGXPA16..RHD202404

BLACK,TRIM2#,3#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52870-C0iGXPA16..LHD202404

BLACK,TRIM2#,3#

main74232-52890-C0iGXPA16..LHD202008-202404

BLACK,TRIM2#

main74232-52A20-C0iGXPA16..RHD202008-202404

BLACK,TRIM2#

main74232-52B40-C0iGXPA16..RHD202404

BLACK,TRIM2#,3#

2 parts on this diagram · 3 diagrams in section
