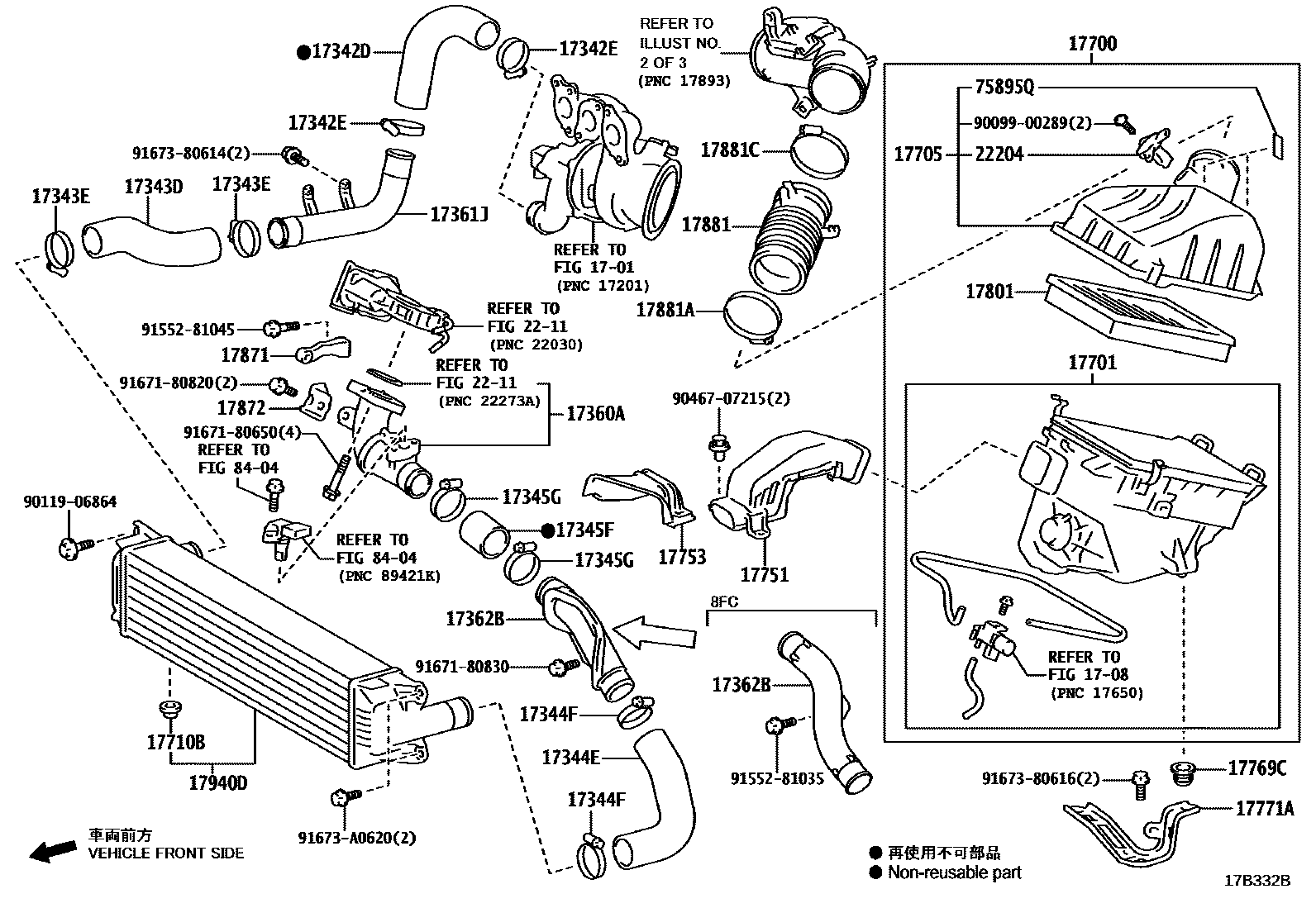

Toyota YARIS GR — AIR CLEANER
1701
1708
17342DHOSE, AIR, NO.2
17342ECLAMP OR CLIP(FOR AIR HOSE, NO.2)
17343DHOSE, AIR, NO.3
17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)
17344EHOSE, AIR, NO.4
17344FCLAMP, HOSE(FOR AIR HOSE, NO.4)
17345FHOSE, AIR, NO.5
17345GCLAMP OR CLIP(FOR AIR HOSE, NO.5)
17360ATUBE ASSY, AIR
17361JTUBE, AIR, NO.1
17362BTUBE, AIR, NO.2
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17751INLET, AIR CLEANER, NO.1
17753INLET, AIR CLEANER, NO.3
17769CSUPPORT, AIR CLEANER, NO.1
17771ABRACKET, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17871STAY, AIR CONNECTOR
17872BRACKET, INTAKE AIR CONNECTOR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
17940DINTERCOOLER ASSY
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
75895QTAPE, MOULDING, NO.1
8404
9009900289
9011906864
9046707215
9155281035
9155281045
9167180650
9167180820
9167180830
9167380614
9167380616
91673A0620
43 parts on this diagram · 4 diagrams in section
