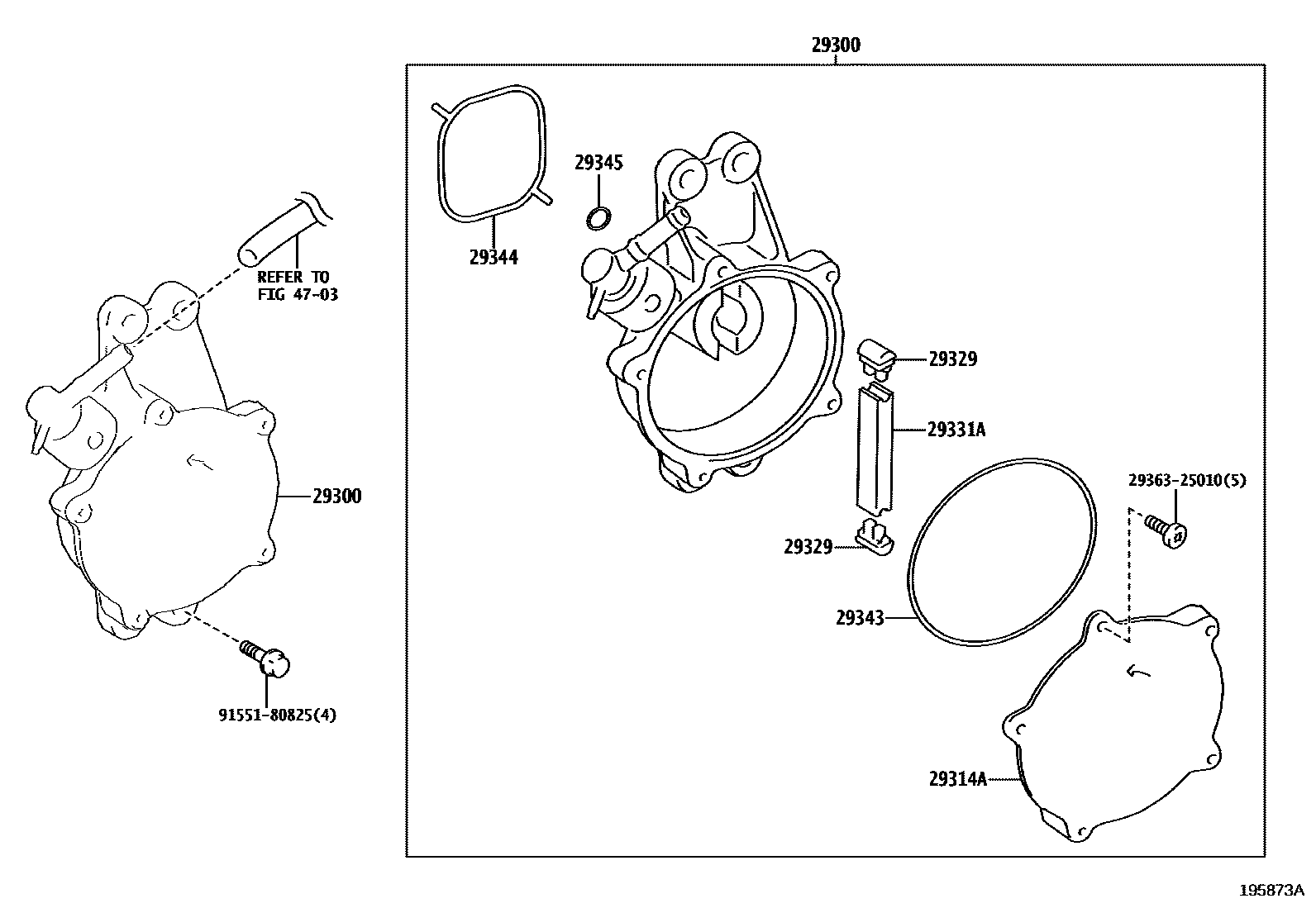

Toyota YARIS GR — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-18010iG16EGTS..GXPA16¥15,100202008-202404

29314ACOVER, END

main29314-36010iG16EGTS..GXPA16¥900202008-202404

29329CAP, VACUUM PUMP VANE

main29329-37010iG16EGTS..GXPA16¥200202008-202404

29331AVANE, VACUUM PUMP

main29331-36011iG16EGTS..GXPA16¥890202008-202404

29343RING, O VACUUM PUMP, NO.1

main29343-36010iG16EGTS..GXPA16¥160202008-202404

29344RING, O VACUUM PUMP, NO.2

main29344-36010iG16EGTS..GXPA16¥160202008-202404

29345RING, O VACUUM PUMP, NO.3

main29345-22011iG16EGTS..GXPA16¥130202008-202404

4703

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010¥200

9155180825

main91551-80825¥80

10 parts on this diagram · 1 diagram in section
