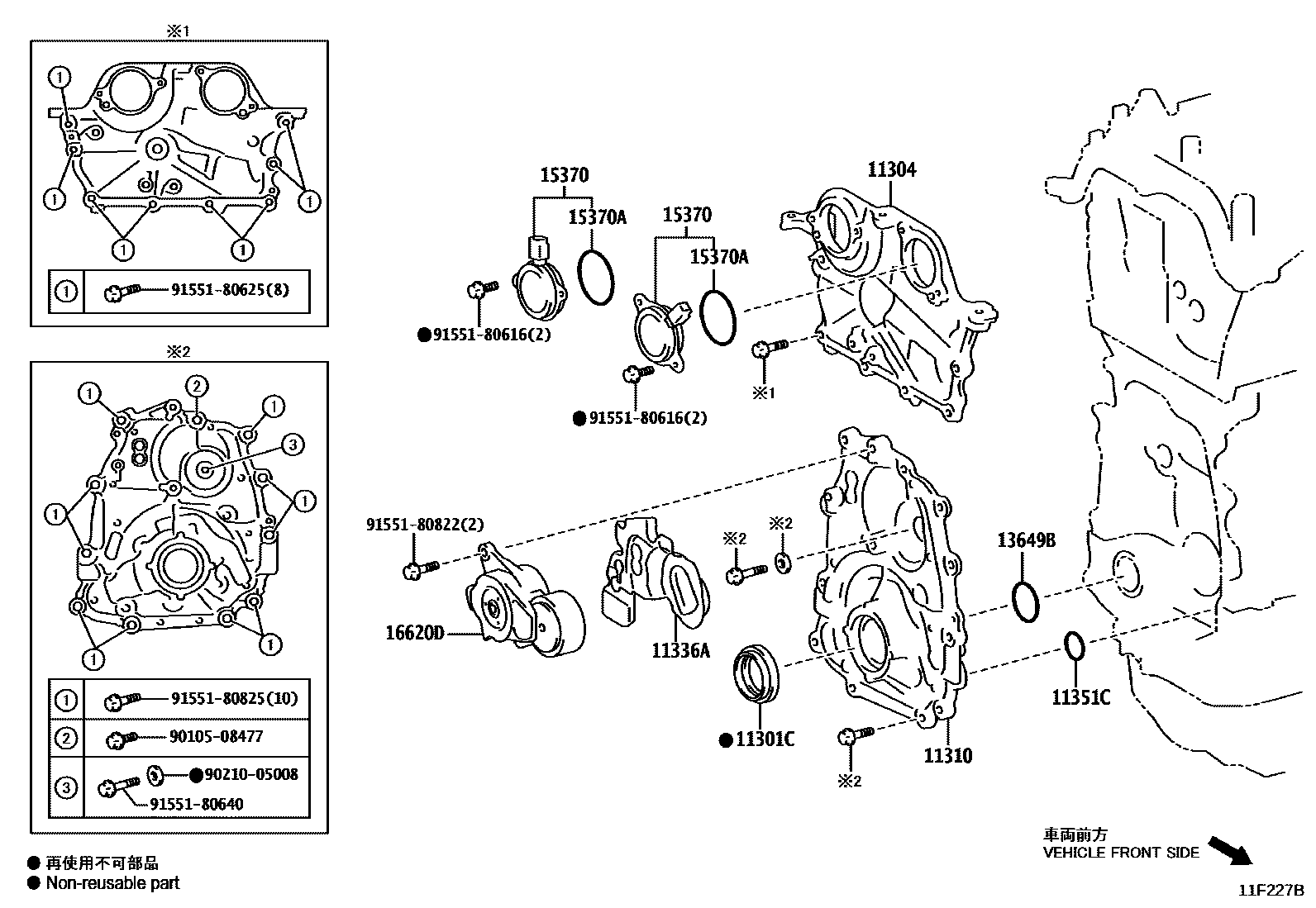

Toyota YARIS GR — TIMING GEAR COVER & REAR END PLATE
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11304COVER, TIMING CHAIN OR BELT, NO.2
11310COVER ASSY, TIMING CHAIN
11336AINSULATOR, TIMING GEAR COVER
11351CRING, O
13649BRING, O
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
16620DTENSIONER ASSY, V-RIBBED BELT
9010508477
9021005008
9155180616
9155180625
9155180640
9155180822
9155180825
16 parts on this diagram · 1 diagram in section
