Toyota YARIS GR — STANDARD TOOL

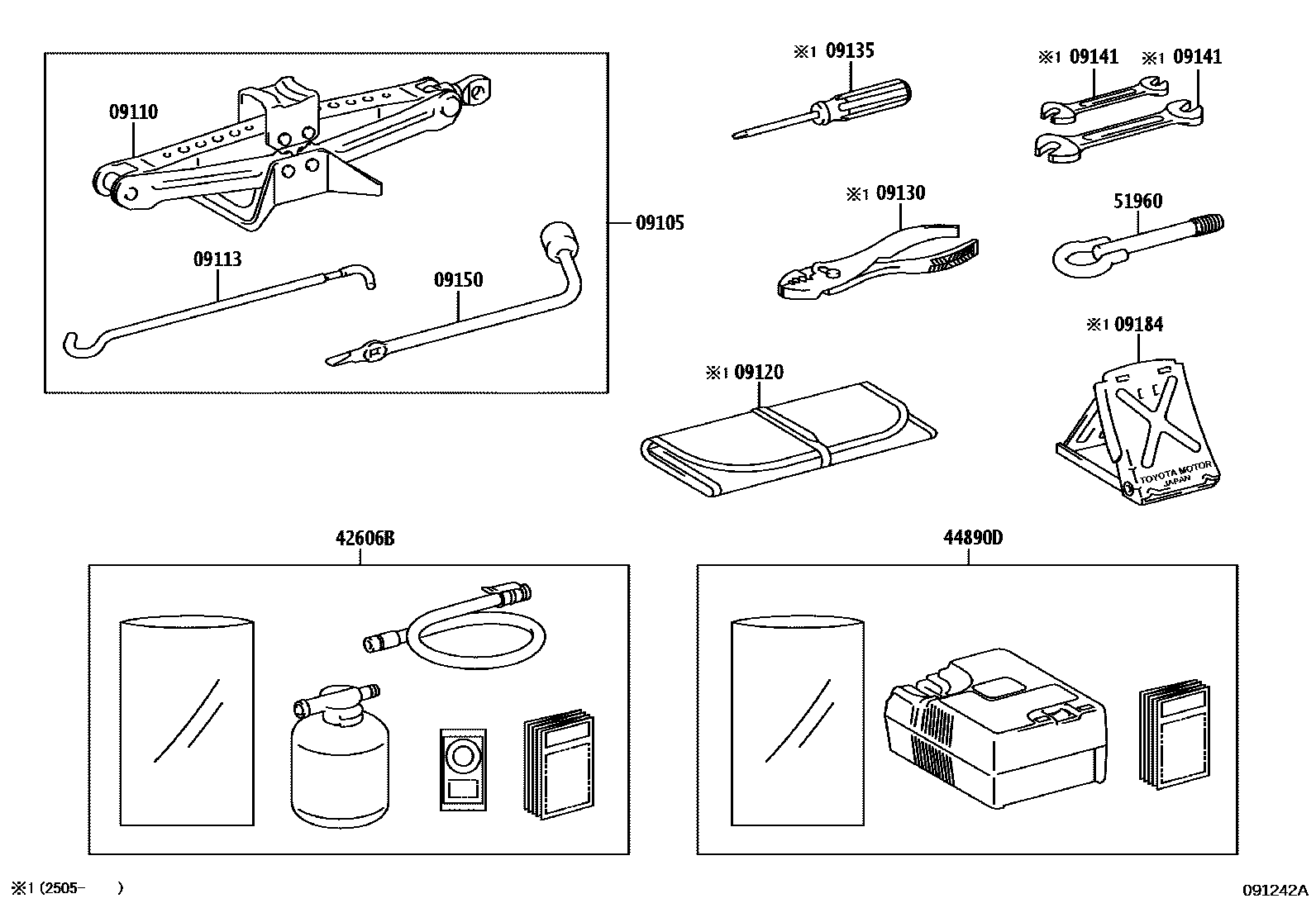

Parts diagram

09105BOX SET, JACK

main09105-52030i¥4,300202412

main09105-52030i¥4,300202404

09110JACK ASSY

main09110-K0010i202410

main09110-K0010i202008-202404

main09111-47051i¥5,900202404

09113HANDLE, JACK

main09113-42030i¥550202008-202404

main09113-42030i¥550202412

main09113-42030i¥550202404

09120BAG, TOOL

09130PLIERS

09135DRIVER, SCREW

09141SPANNER

09150WRENCH, HUB NUT BOX

main09150-42010i¥1,150202404

main09150-42010i¥1,150202412

main09150-42010i¥1,150202008-202404

09184STOPPER, WHEEL

42606BREPAIR KIT, TUBELESS TIRE

main42606-30011i¥3,600202008-202212

sub42606-42080¥3,600

main42606-42080i¥3,600202404

U.A.E. SPEC

main42606-42080i¥3,600202404

JORDAN,LEBANON SPEC

main42606-42080i¥3,600202404

OMAN SPEC

main42606-42080i¥3,600202404

IRAQ SPEC

main42606-42080i¥3,600202404

QATAR SPEC

main42606-42080i¥3,600202404

BAHRAIN SPEC

main42606-42080i¥3,600202404

SAUDI ARABIA SPEC

main42606-42080i¥3,600202404

KUWAIT SPEC

main42606-42080i¥3,600202212-202404

main42606-42110i¥3,600202412

44890DCOMPRESSOR ASSY, AIR

main44890-12011i¥7,500202109-202212

sub44890-42050¥7,500

main44890-30030i¥7,500202008-202108

sub44890-30031¥7,500

main44890-42050i¥7,500202404

KUWAIT SPEC

main44890-42050i¥7,500202404

U.A.E. SPEC

main44890-42050i¥7,500202404

JORDAN,LEBANON SPEC

main44890-42050i¥7,500202404

OMAN SPEC

main44890-42050i¥7,500202404

IRAQ SPEC

main44890-42050i¥7,500202404

QATAR SPEC

main44890-42050i¥7,500202404

BAHRAIN SPEC

main44890-42050i¥7,500202404

SAUDI ARABIA SPEC

main44890-42050i¥7,500202212-202404

main44890-42070i¥7,500202412

51960HOOK ASSY, FRONT

main51960-10010i¥1,680202008-202404

main51960-10010i¥1,680202404

main51960-10010i¥1,680202412

12 parts on this diagram · 2 diagrams in section
