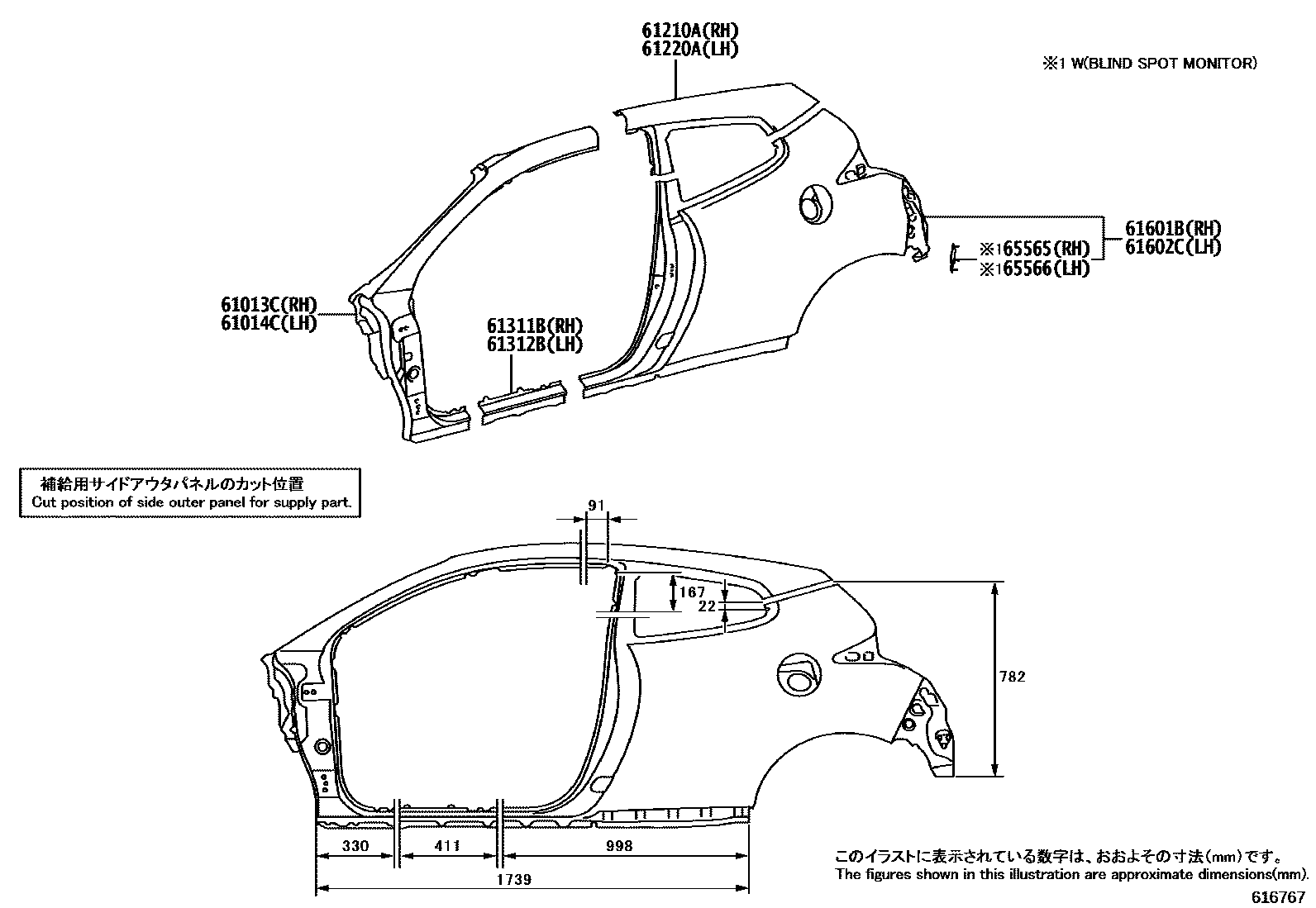

Toyota YARIS GR — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-52090iGXPA16¥13,000202008-202404

main61013-52090iGXPA16..ARL,EUR¥13,000202404

main61013-52090iGXPA16..CHI¥13,000202412

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-52080iGXPA16¥13,000202008-202404

main61014-52080iGXPA16..ARL,EUR¥13,000202404

main61014-52080iGXPA16..CHI¥13,000202412

61210ARAIL ASSY, ROOF SIDE, RH

main61210-52010iGXPA16¥4,660202008-202404

main61210-52010iGXPA16..ARL,EUR¥4,660202404

main61210-52010iGXPA16..CHI¥4,660202412

61220ARAIL ASSY, ROOF SIDE, LH

main61220-52010iGXPA16..CHI¥4,660202412

main61220-52010iGXPA16¥4,660202008-202404

main61220-52010iGXPA16..ARL,EUR¥4,660202404

61311BPILLAR, CENTER BODY, OUTER RH

main61311-52110iGXPA16¥3,510202008-202404

main61311-52110iGXPA16..ARL,EUR¥3,510202404

main61311-52110iGXPA16..CHI¥3,510202412

61312BPILLAR, CENTER BODY, OUTER LH

main61312-52090iGXPA16..ARL,EUR¥3,510202404

main61312-52090iGXPA16¥3,510202008-202404

main61312-52090iGXPA16..CHI¥3,510202412

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-52730iGXPA16..ARL¥44,200202404-202505

main61601-52730iGXPA16¥44,200202008-202404

main61601-52730iGXPA16..EUR¥44,200202404

main61601-52730iGXPA16..CHI¥44,200202412

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-52870iGXPA16¥45,300202008-202404

main61602-52870iGXPA16..ARL¥45,300202404-202505

main61602-52870iGXPA16..EUR¥45,300202404

main61602-52870iGXPA16..CHI¥45,300202412

65565PATCH, SIDE PANEL REAR END, RH

main65565-50010¥900

65566PATCH, SIDE PANEL REAR END, LH

main65565-50010¥900

10 parts on this diagram · 3 diagrams in section
