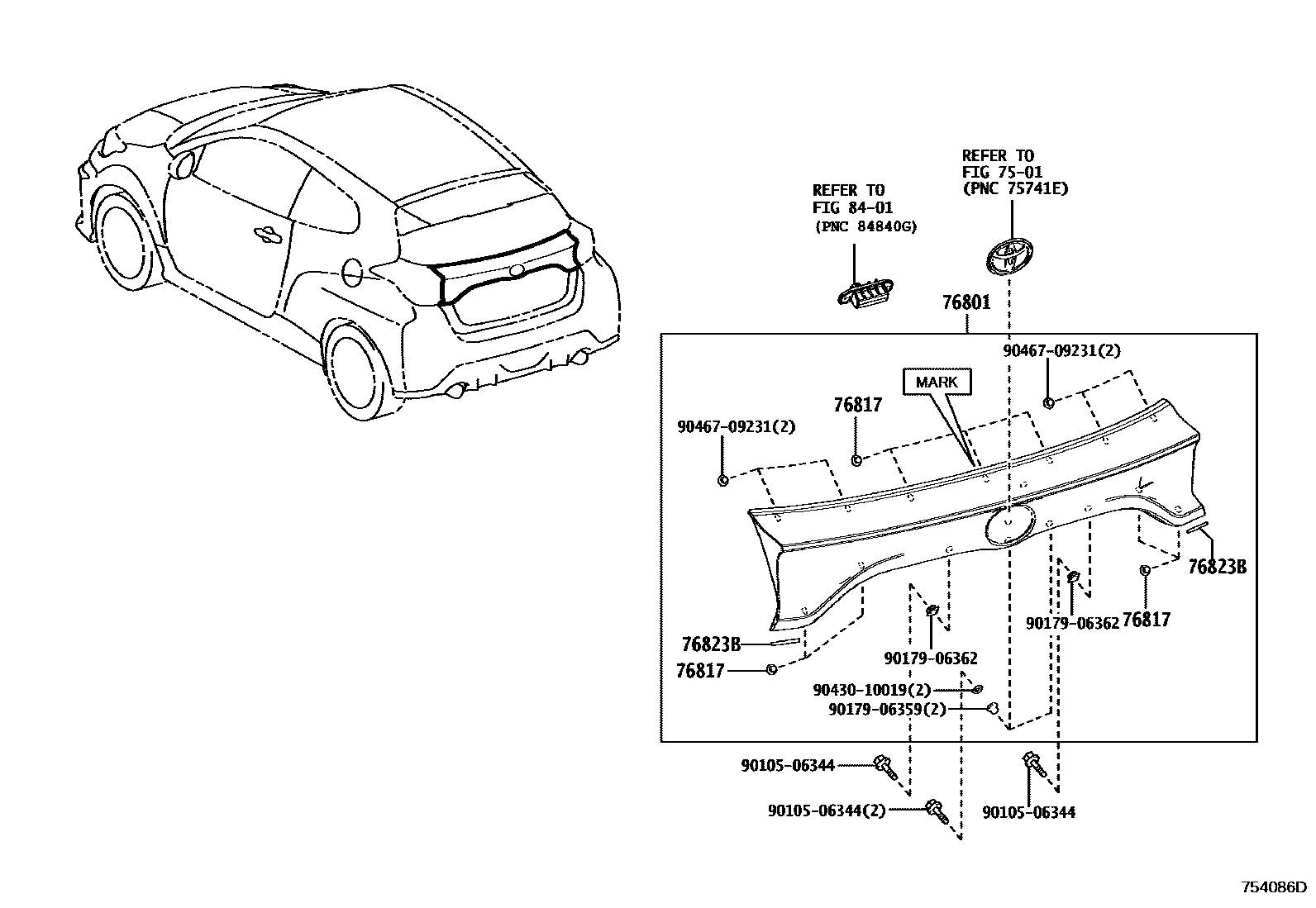

Toyota YARIS GR — REAR MOULDING

7501

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-52540iGXPA16¥24,700202008-202201

NO PAINT REQ.,MARK 76801-52540

sub76801-52541¥24,700

sub75442-52481¥1,980

main76801-52541iGXPA16..6F¥24,700202201

NO PAINT REQ.,MARK 76801-52541

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206iGXPA16..6F¥80202008

76823BPROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE

main76824-42030iGXPA16..6F¥280202104

8401

9010506344

main90105-06344¥60

9017906359

main90179-06359¥80

9017906362

main90179-06362¥60

9043010019

main90430-10019¥80

9046709231

main90467-09231¥90

10 parts on this diagram · 1 diagram in section
