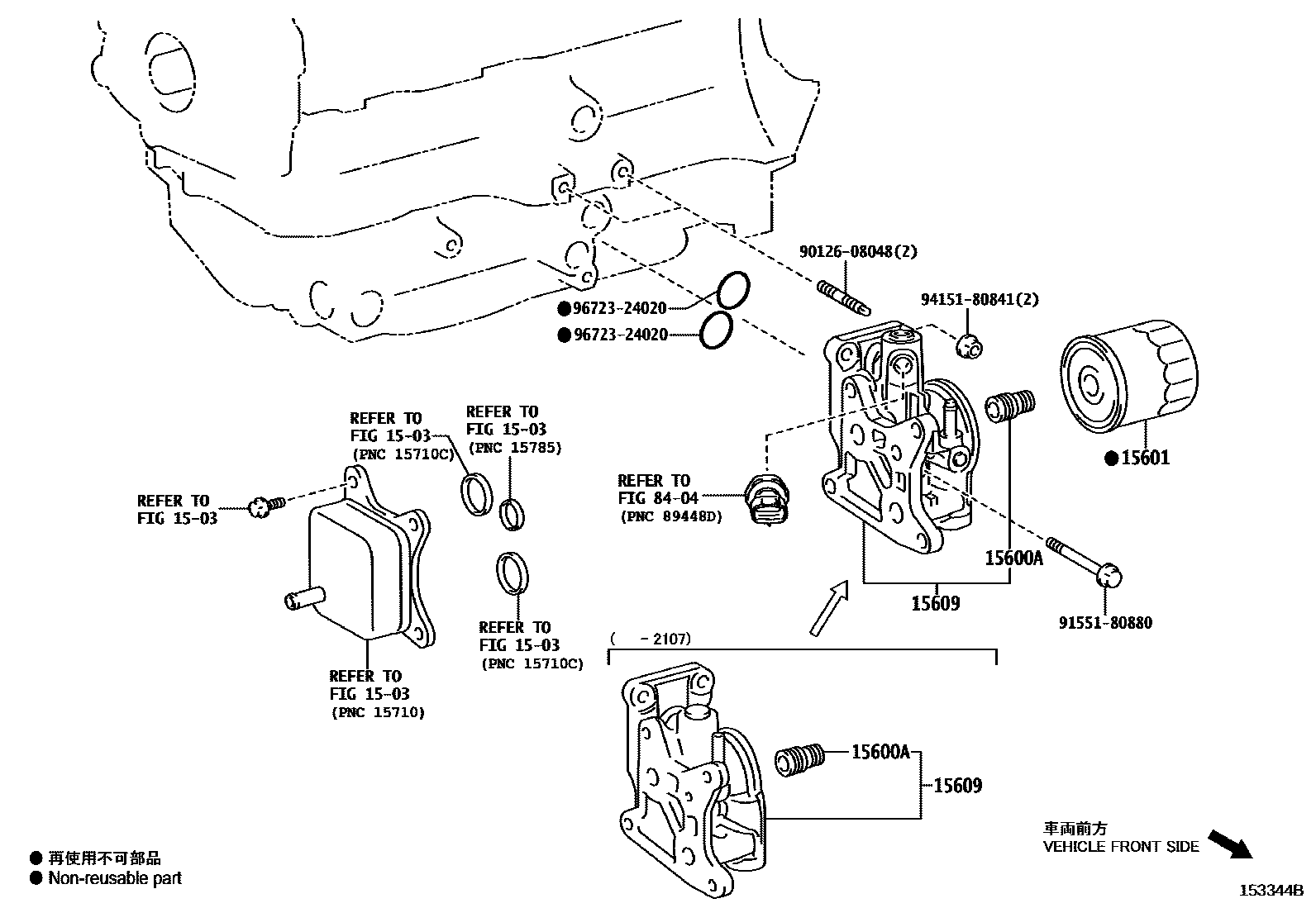

Toyota YARIS GR — OIL FILTER

1503

15600AUNION(FOR OIL FILTER)

main90904-04006iG16EGTS..GXPA16¥450202008-202404

15601FILTER SUB-ASSY, OIL

main90915-10009iG16EGTS..GXPA16¥1,050202008-202404

15609BRACKET SUB-ASSY, OIL FILTER

main15609-18010iG16EGTS..GXPA16¥9,500202008-202107

main15609-18011iG16EGTS..GXPA16¥8,700202107-202404

8404

9012608048

main90126-08048¥80

9155180880

main91551-80880¥120

9415180841

main94151-80841¥80

9672324020

main96723-24020¥140

9 parts on this diagram · 1 diagram in section
