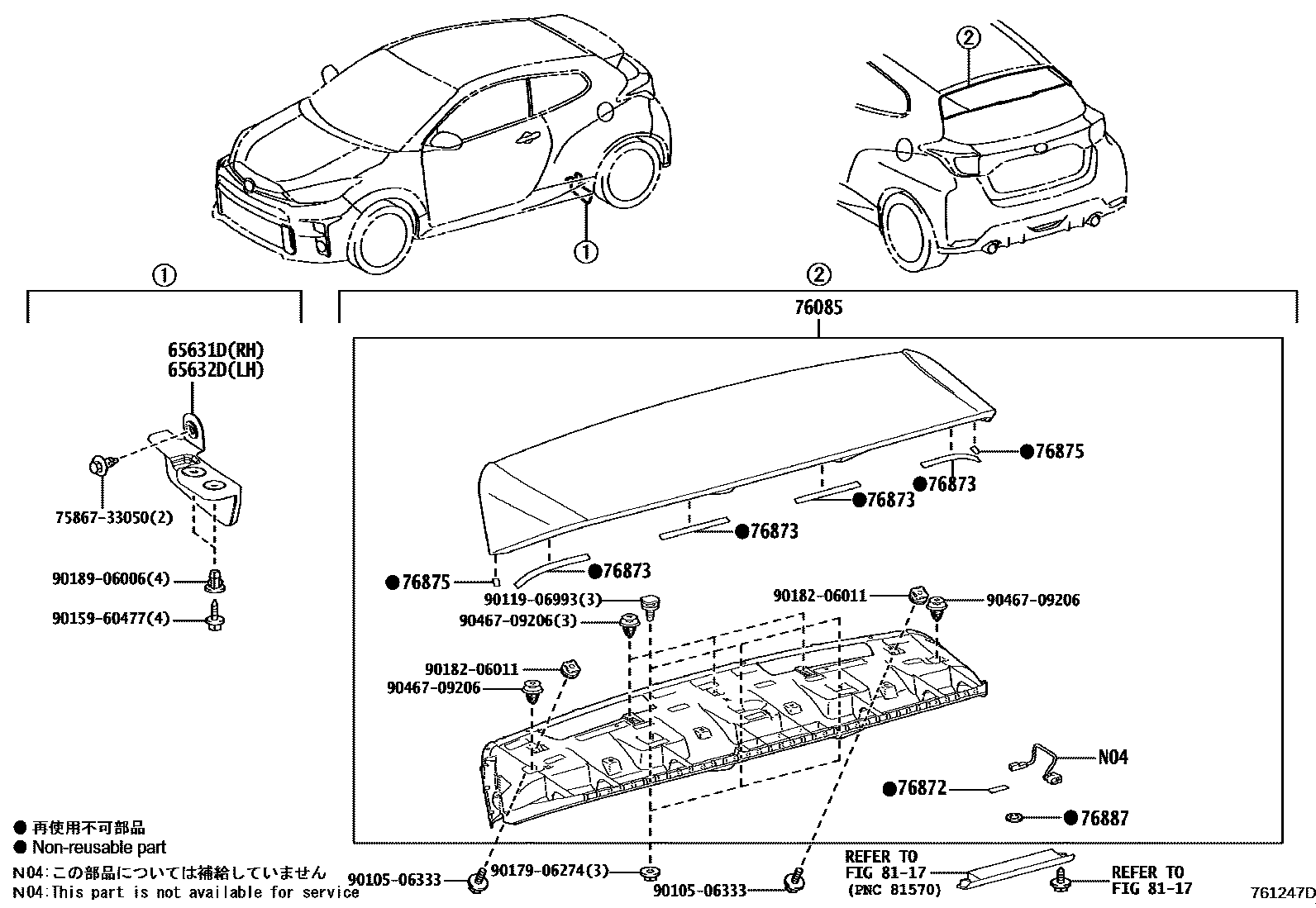

Toyota YARIS GR — MUDGUARD & SPOILER

0001 1 0002 1 0003 1WITH(FOR GR(CIRCUIT)) 0004 1SEBASTIEN OGIER EDITION

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-K0010iGXPA16¥970202008-202404

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-K0010iGXPA16..ARL,EUR¥970202008-202404

76085SPOILER SUB-ASSY, REAR

main76085-52400-A0iGXPA16..ARL,EUR202404

SUPER WHITE 2,040

main76085-52400-A1iGXPA16..ARL,EUR202404

PLATINUM WHITE PEARL MC.,089

main76085-52400-B0iGXPA16..ARL,EUR202404

PRECIOUS METAL,1L5

main76085-52400-C0iGXPA16..ARL,EUR202404

PRECIOUS BLACK,219

main76085-52400-D0iGXPA16..ARL,EUR202404

EMOTIONAL RED 2,3U5

main76085-52923iGXPA16¥66,800202008-202404

NO PAINT REQ.

main76085-52936iGXPA16202404

PAINT REQ.

76872PROTECTOR, REAR SPOILER, NO.1

main76872-52140iGXPA16..6F..EUR¥430202404

SEBASTIEN OGIER EDITION *(S)&"HIGH PERFORMANCE"*(H)OR*(I)

main76872-52140iGXPA16¥430202008-202404

main76872-52140iGXPA16¥430202404

KALLE ROVANPERA EDITION *(K)&"HIGH PERFORMANCE"*(H)OR*(I)

76873PROTECTOR, REAR SPOILER, NO.2

main76873-52150iGXPA16¥430202008-202404

main76873-52150iGXPA16¥430202404

SEBASTIEN OGIER EDITION *(S)&"HIGH PERFORMANCE"*(H)OR*(I)

main76873-52150iGXPA16¥430202404

KALLE ROVANPERA EDITION *(K)&"HIGH PERFORMANCE"*(H)OR*(I)

76875PROTECTOR, REAR SPOILER, NO.4

main76875-52090iGXPA16¥430202008-202404

76887SEAL, REAR SPOILER

main76887-52060iGXPA16¥430202008-202404

8117

7586733050MOULDING, FRONT PANEL

main75867-33050¥210

9010506333

main90105-06333¥60

9011906993

main90119-06993¥80

9015960477

main90159-60477¥70

9017906274

main90179-06274¥70

9018206011

main90182-06011¥100

9018906006

main90189-06006¥100

9046709206

main90467-09206¥80

16 parts on this diagram · 4 diagrams in section
