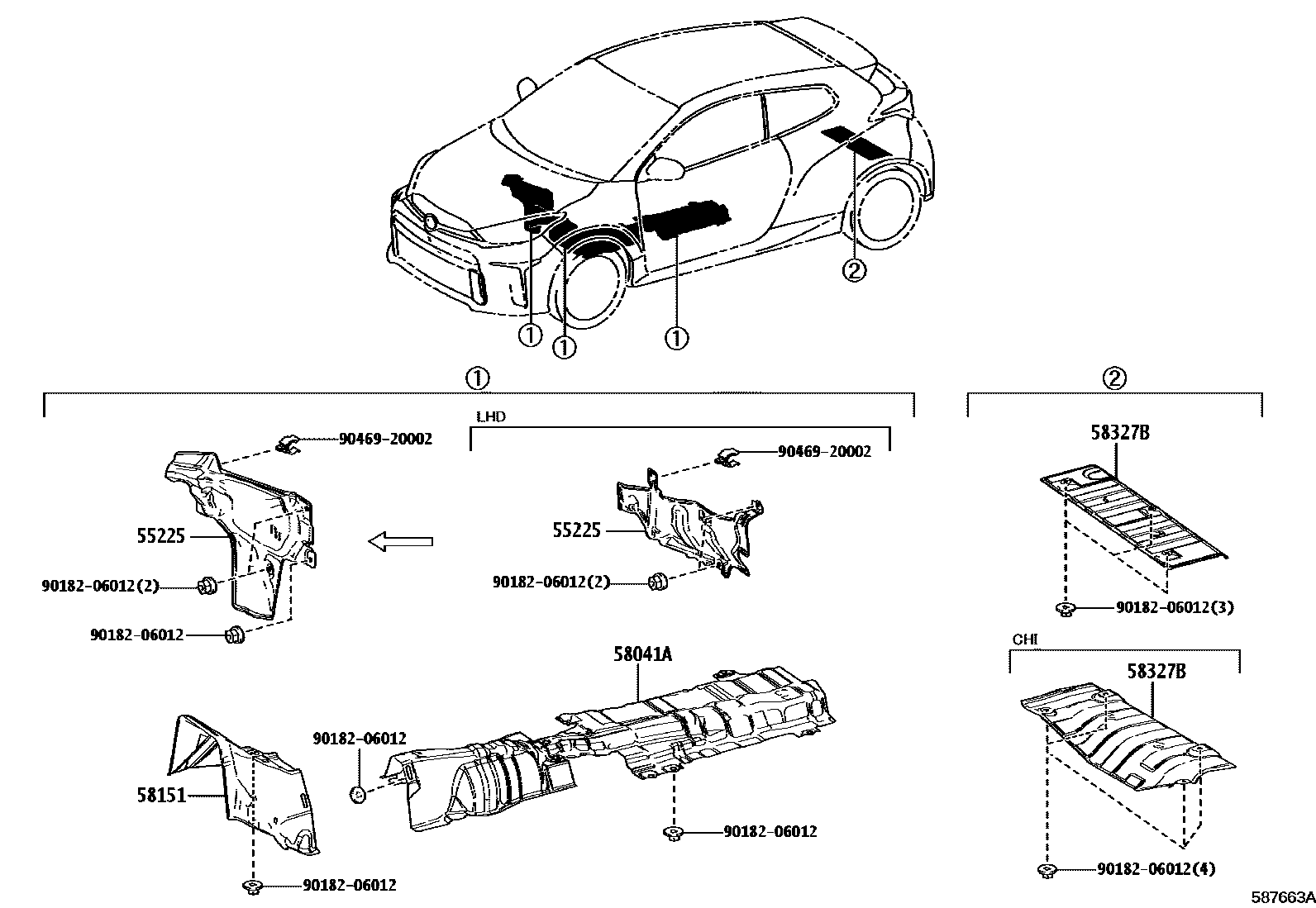

Toyota YARIS GR — FLOOR INSULATOR

55225INSULATOR, DASH PANEL HEAT

main55225-52010iGXPA16..RHD¥1,970202008-202404

main55225-52030iGXPA16..LHD202008-202404

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-52050iGXPA16¥5,900202008-202404

main58041-52090iGXPA16202404

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52130iGXPA16¥2,410202008-202404

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52180iGXPA16¥1,920202008-202404

main58327-52230iGXPA16..CHI202410

9018206012

main90182-06012¥60

9046920002

main90469-20002¥110

6 parts on this diagram · 1 diagram in section
