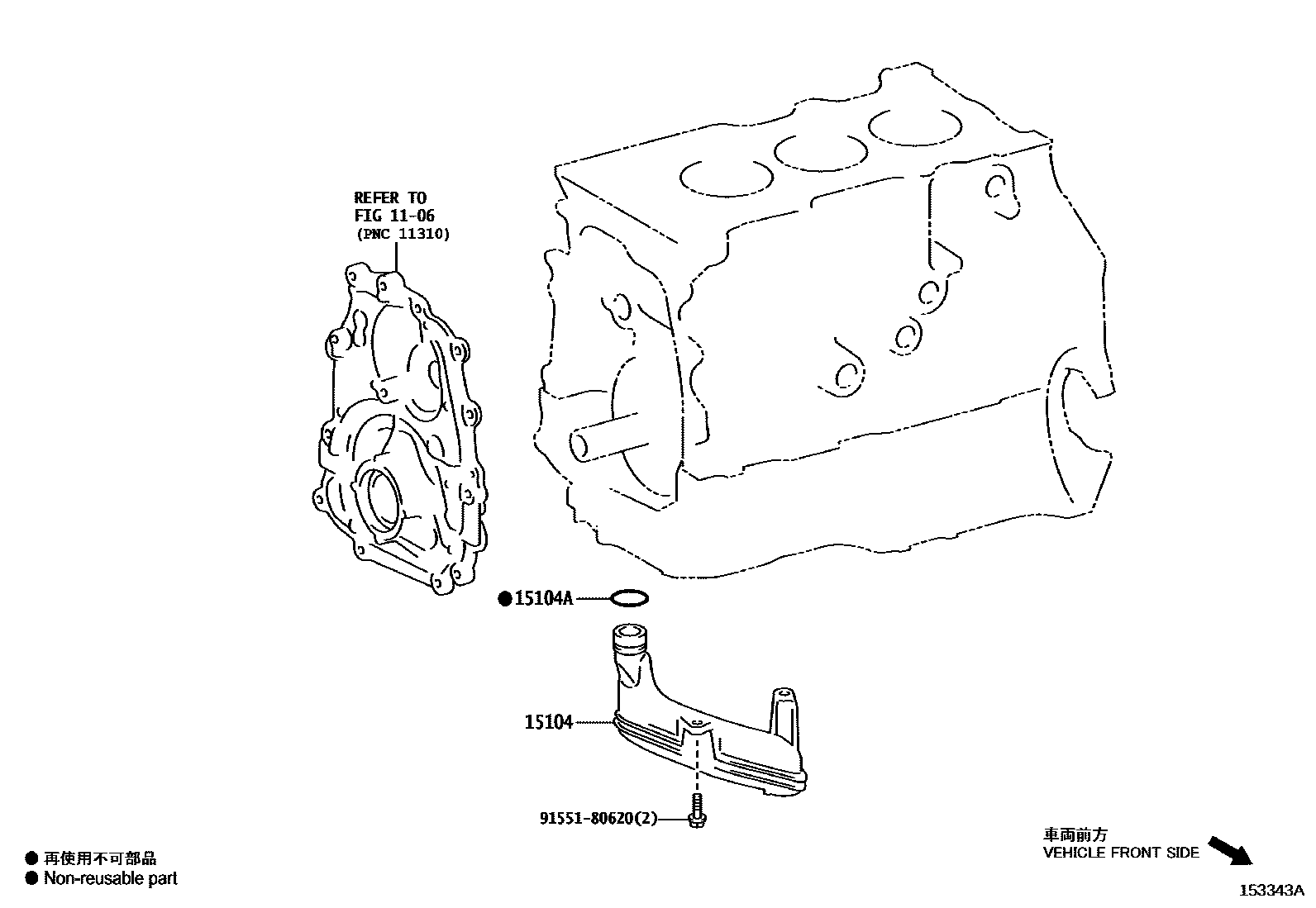

Toyota YARIS GR — ENGINE OIL PUMP

1106

15104STRAINER SUB-ASSY, OIL

main15104-18010iG16EGTS..GXPA16¥1,690202008-202404

main15104-18010iG16EGTS..GXPA16..ARL,EUR¥1,690202404

main15104-18010iG16EGTS..GXPA16..CHI¥1,690202412

15104ARING, O(FOR OIL STRAINER)

main96721-24025iG16EGTS..GXPA16¥160202008-202404

main96721-24025iG16EGTS..GXPA16..ARL,EUR¥160202404

main96721-24025iG16EGTS..GXPA16..CHI¥160202412

9155180620

main91551-80620¥60

4 parts on this diagram · 1 diagram in section
