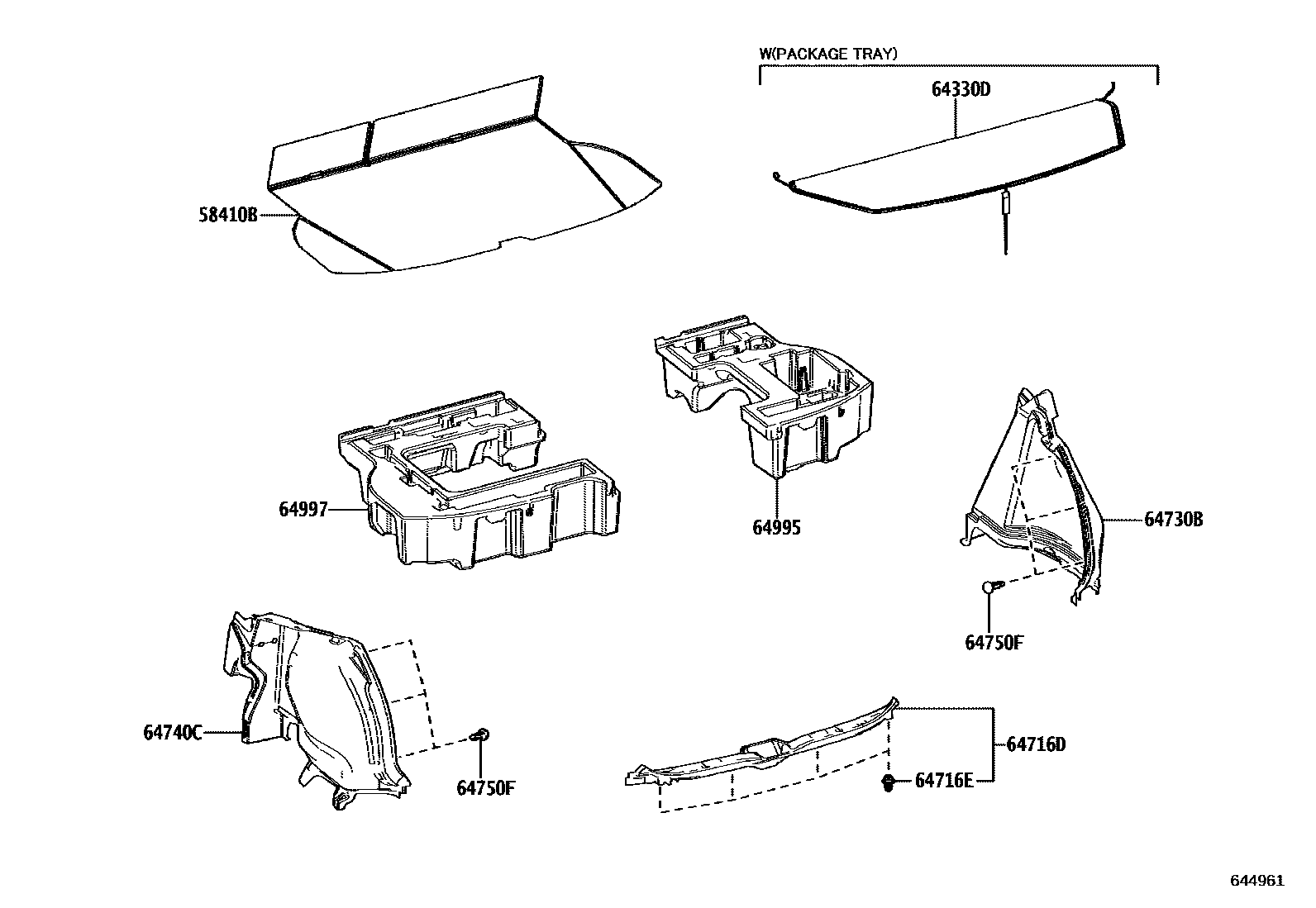

Toyota YARIS GR — DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58410BBOARD ASSY, DECK

main58410-52170-B0iGXPA16202008-202404

DARK GRAY,TRIM2#

main58410-52170-B0iGXPA16..ARL,EUR202404

DARK GRAY,TRIM2#,3#

main58410-52260-B0iGXPA16..CHI202412

DARK GRAY,TRIM2#,3#

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-52430iGXPA16..EUR¥6,000202008-202404

64716DCOVER, DECK TRIM, REAR

main64716-52220-C0iGXPA16202008-202404

BLACK,TRIM2#

main64716-52220-C0iGXPA16..ARL,EUR202404

BLACK,TRIM2#,3#

main64716-52290-C0iGXPA16..CHI202412

BLACK,TRIM2#,3#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161iGXPA16¥90202008-202404

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52700-B0iGXPA16202008-202404

DARK GRAY,TRIM2#

main64730-52700-B0iGXPA16..ARL,EUR202404

DARK GRAY,TRIM2#,3#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52780-B0iGXPA16202008-202404

DARK GRAY,TRIM2#

main64740-52780-B0iGXPA16..ARL,EUR202404

DARK GRAY,TRIM2#,3#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-08186-C3iGXPA16202008-202404

BLACK,TRIM2#

sub90467-08186¥120

main90467-08186-C3iGXPA16..ARL,EUR202404

BLACK,TRIM2#,3#

sub90467-08186¥120

64995BOX, DECK FLOOR, RH

main64995-52120iGXPA16¥5,500202008-202404

main64995-52160iGXPA16..CHI202412

64997BOX, DECK FLOOR, LH

main64997-52150iGXPA16¥6,800202008-202404

main64997-52190iGXPA16..CHI202412

9 parts on this diagram · 2 diagrams in section
