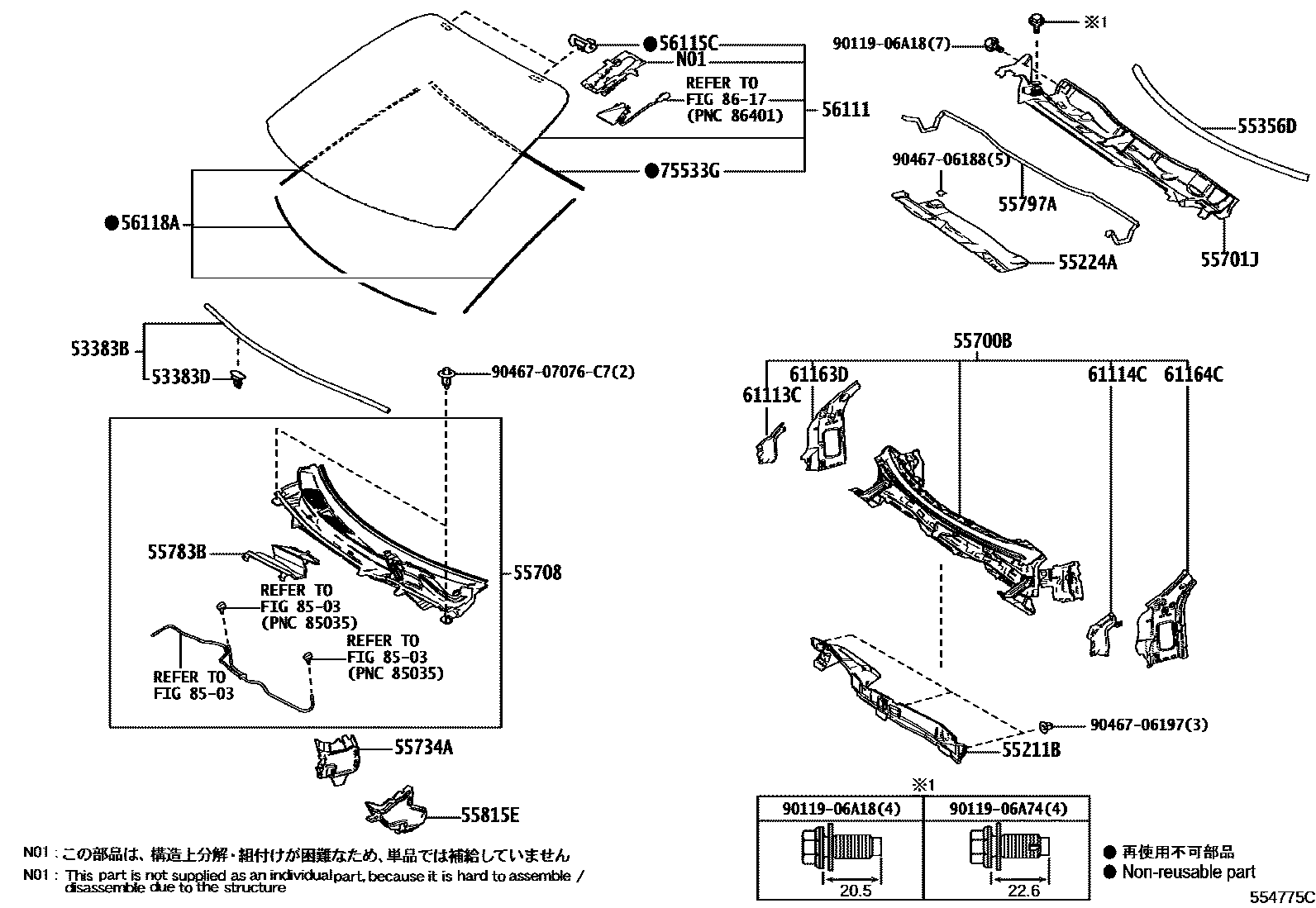

Toyota YARIS GR — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55734APLATE, WATER GUARD, RH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55797ASEAL, COWL WATER EXTRACT
55815ESEAL, FRONT VENTILATOR, NO.1
56111GLASS, WINDSHIELD
56115CSTOPPER, WINDSHIELD GLASS
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
*D,L=1234 OR 650,AZORES, MADEIRA SPEC&ENTRY PACKAGE
*D,L=1234 OR 650,AZORES, MADEIRA SPEC&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,CEUTA & MELILLA SPEC
*D,L=1234 OR 650,CEUTA & MELILLA SPEC&ENTRY PACKAGE
*D,L=1234 OR 650,CEUTA & MELILLA SPEC&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,ENTRY PACKAGE
*D,L=1234 OR 650,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
*D,L=1234 OR 650,HEAD UP DISPLAY-WITH
*D,L=1234 OR 650
*D,L=1234 OR 650,GUADELOUPE SPEC
*D,L=1234 OR 650,GUADELOUPE SPEC&ENTRY PACKAGE
*D,L=1234 OR 650,GUADELOUPE SPEC&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,MARTINIQUE SPEC
*D,L=1234 OR 650,MARTINIQUE SPEC&ENTRY PACKAGE
*D,L=1234 OR 650,MARTINIQUE SPEC&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,NEW CALEDONIA SPEC
*D,L=1234 OR 650,NEW CALEDONIA SPEC&ENTRY PACKAGE
*D,L=1234 OR 650,NEW CALEDONIA SPEC&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,KENYA SPEC
*D,L=1234 OR 650,KENYA SPEC&ENTRY PACKAGE
*D,L=1234 OR 650,KENYA SPEC&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,AZORES, MADEIRA SPEC
*D,L=1234 OR 650,SEBASTIEN OGIER EDITION *(S)
*D,L=1234 OR 650,KALLE ROVANPERA EDITION *(K)
61113CPANEL, SIDE, INNER RH
61114CPANEL, SIDE, INNER LH
61163DPILLAR, FRONT BODY, LOWER INNER RH
61164CPILLAR, FRONT BODY, LOWER INNER LH
75533GMOULDING, WINDSHIELD, OUTSIDE
8503
8617
9011906A18
9011906A74
9046706188
9046706197
9046707076C7
main90467-07076C7
27 parts on this diagram · 2 diagrams in section
