Toyota YARIS GR — BACK UP LAMP

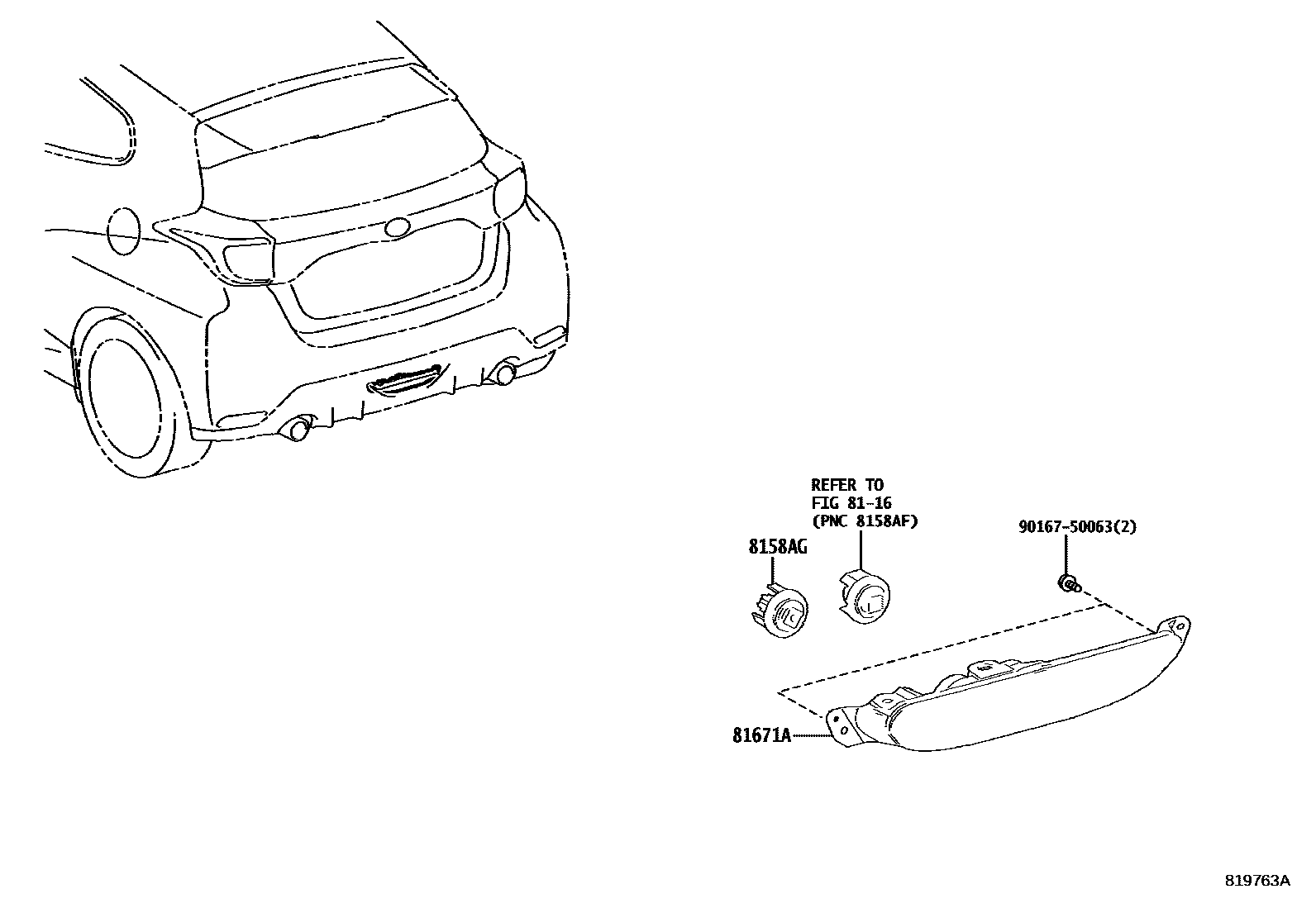

Parts diagram

8116

8158AGLED, BACK-UP LAMP

main8158A-K0140i¥4,760202008-202303

sub81965-52070¥3,200

main81965-52070i¥3,200202303-202404

81671ALENS & BODY, BACK-UP LAMP

main81581-K0130i¥4,890202008-202404

9016750063

main90167-50063¥60

4 parts on this diagram · 1 diagram in section
