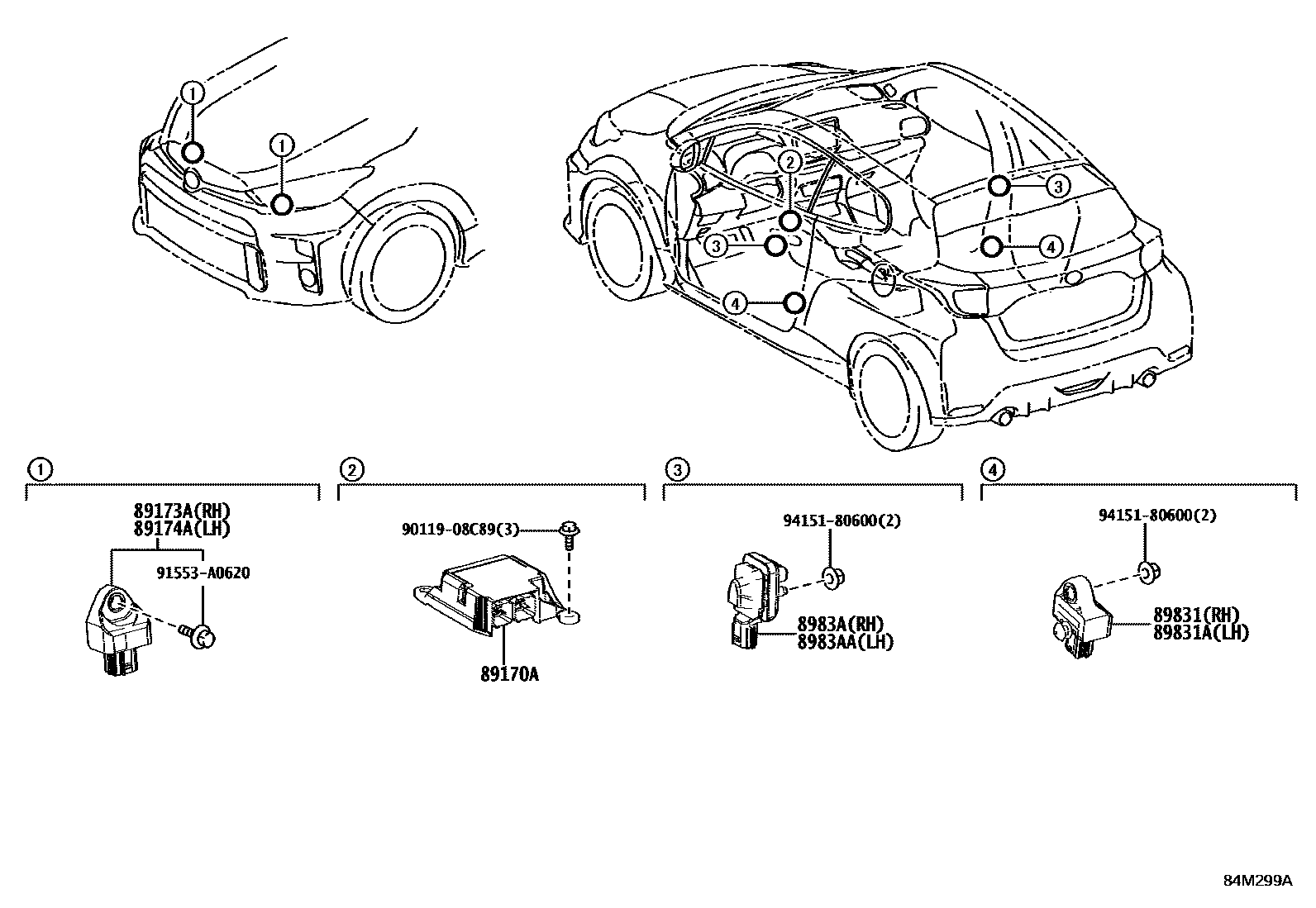

Toyota YARIS GR — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-52P90iGXPA16..ARL202008-202404

*614

main89170-52Q00iGXPA16..RHD..EUR202008-202404

*614

main89170-52Q10iGXPA16..LHD¥28,000202008-202404

*614

main89170-52S10iGXPA16¥25,400202404

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-59335iGXPA16¥4,110202008-202404

89174ASENSOR, AIRBAG, FRONT LH

main89173-59335iGXPA16¥4,110202008-202404

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-52120iGXPA16¥4,110202008-202404

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-52120iGXPA16¥4,110202008-202404

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-52010iGXPA16¥4,520202008-202101

sub8983A-52011¥4,110

main8983A-52011iGXPA16¥4,110202102-202404

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-52010iGXPA16¥4,520202008-202101

sub8983A-52011¥4,110

main8983A-52011iGXPA16¥4,110202102-202404

9011908C89

main90119-08C89¥80

91553A0620

main91553-A0620¥60

9415180600

main94151-80600¥60

10 parts on this diagram · 1 diagram in section
