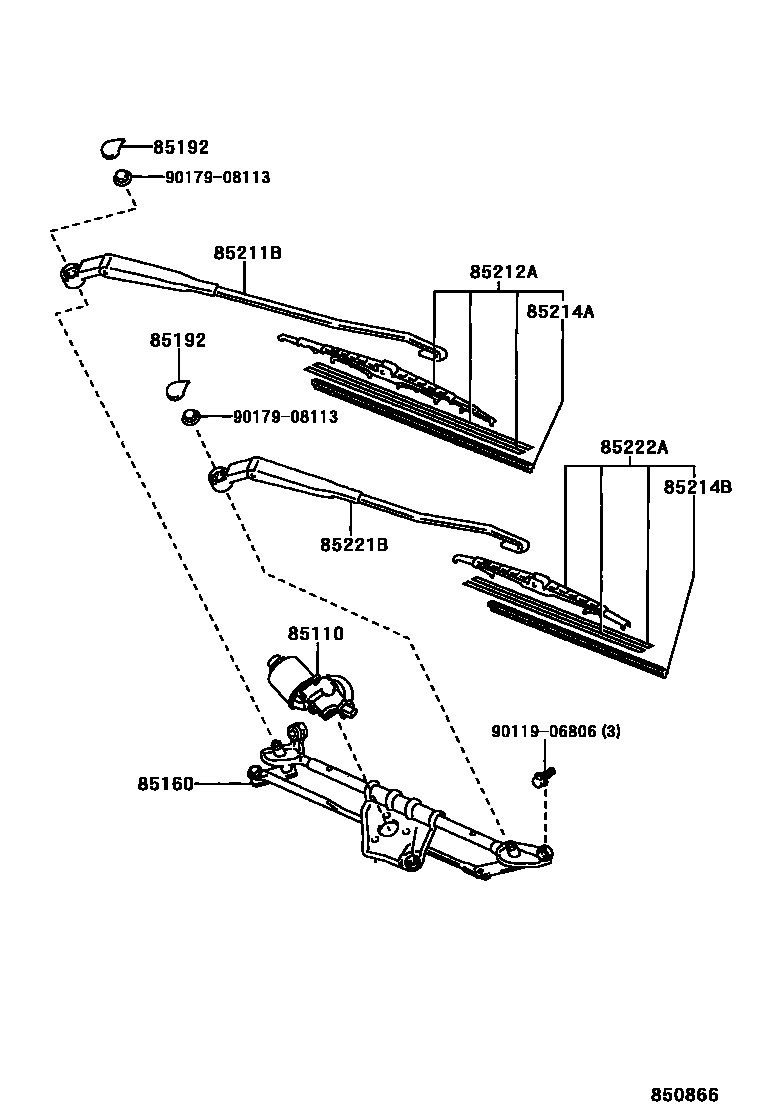

Toyota YARIS (FRP) — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D010iSCP1#..RHD200101-200302

main85110-0D020iNLP10,SCP1#..FRP..LHD200101-200302

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D010iNLP10,SCP1#..FRP..RHD200101-200411

sub85150-0D011

main85150-0D011iNLP10,SCP1#..FRP..RHD200411

main85150-0D020iSCP1#..LHD200101-200411

sub85150-0D021

main85150-0D021iNLP10,SCP1#..FRP..LHD200411

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iNLP10,SCP1#..FRP¥270200101-200302

85211BARM, FRONT WIPER, RH

main85211-0D010iSCP1#..RHD200101-200302

main85211-0D020iSCP1#..LHD200101-200302

85212ABLADE, FR WIPER, RH

main85212-0D010iNLP10,SCP1#..FRP..RHD¥3,040200101-200302

sub85212-0D011

main85222-0D010iSCP1#..LHD¥1,710200101-200302

sub85222-0D011

85214ARUBBER, WIPER, RH

main85214-0D010iNLP10,SCP1#..FRP..RHD200101-200302

sub85214-0W050

main85214-0D020iNLP10,SCP1#..FRP..LHD200101-200302

85214BRUBBER, WIPER, LH

main85214-0D010iNLP10,SCP1#..FRP..LHD200101-200302

sub85214-0W050

main85214-0D020iNLP10,SCP1#..FRP..RHD200101-200302

85221BARM, FRONT WIPER, LH

main85221-0D010iSCP1#..RHD200101-200302

main85221-0D020iSCP1#..LHD200101-200302

85222ABLADE, FR WIPER, LH

main85212-0D010iSCP1#..LHD¥3,040200101-200302

sub85212-0D011

main85222-0D010iNLP10,SCP1#..FRP..RHD¥1,710200101-200302

sub85222-0D011

9011906806

main90119-06806¥70

9017908113

main90179-08113¥120

11 parts on this diagram · 2 diagrams in section
