Toyota YARIS (FRP) — VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-0N010i1NDTV..NLP10..FRP¥52,400200310

main29300-33012i1NDTV..NLP10..FRP¥52,400200302-200310

29331BLADE, VACUUM PUMP, A

main29331-33010i1NDTV..NLP10..FRP¥1,330200302-200310

9007910013

main90079-10013¥110

9007960022

main90079-60022¥280

9007960023

main90079-60023¥240

9007960024

main90079-60024¥240

9010508264

main90105-08264¥130

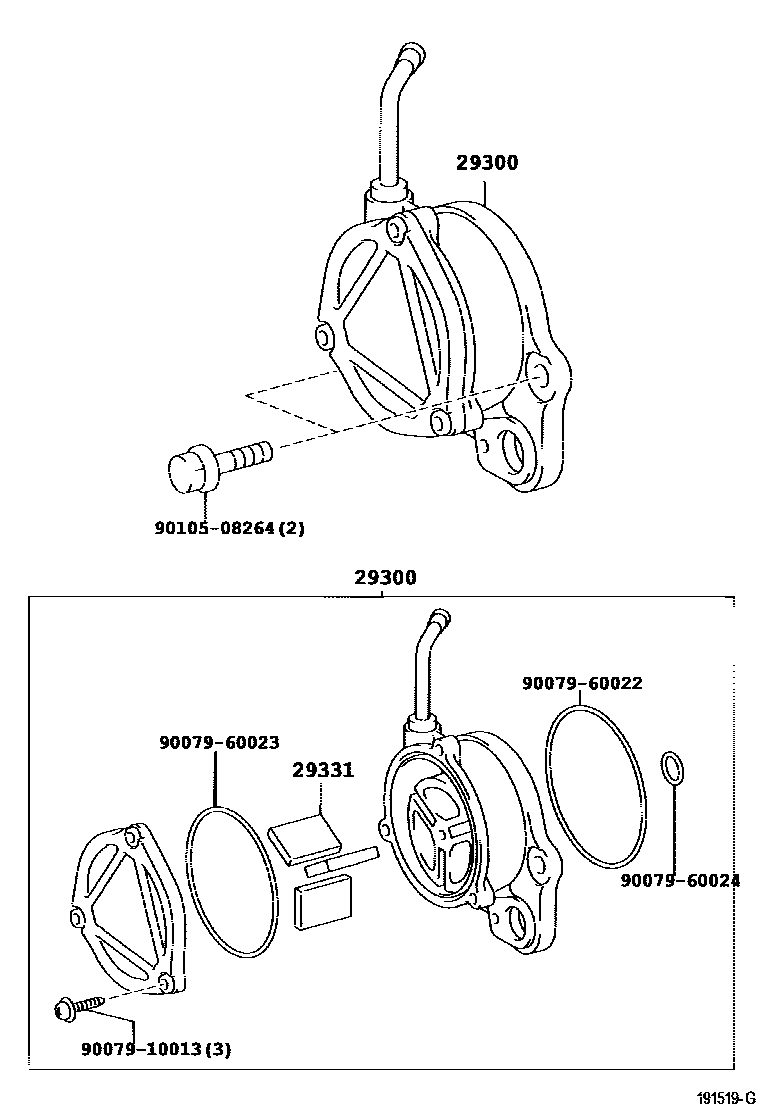

7 parts on this diagram · 2 diagrams in section
