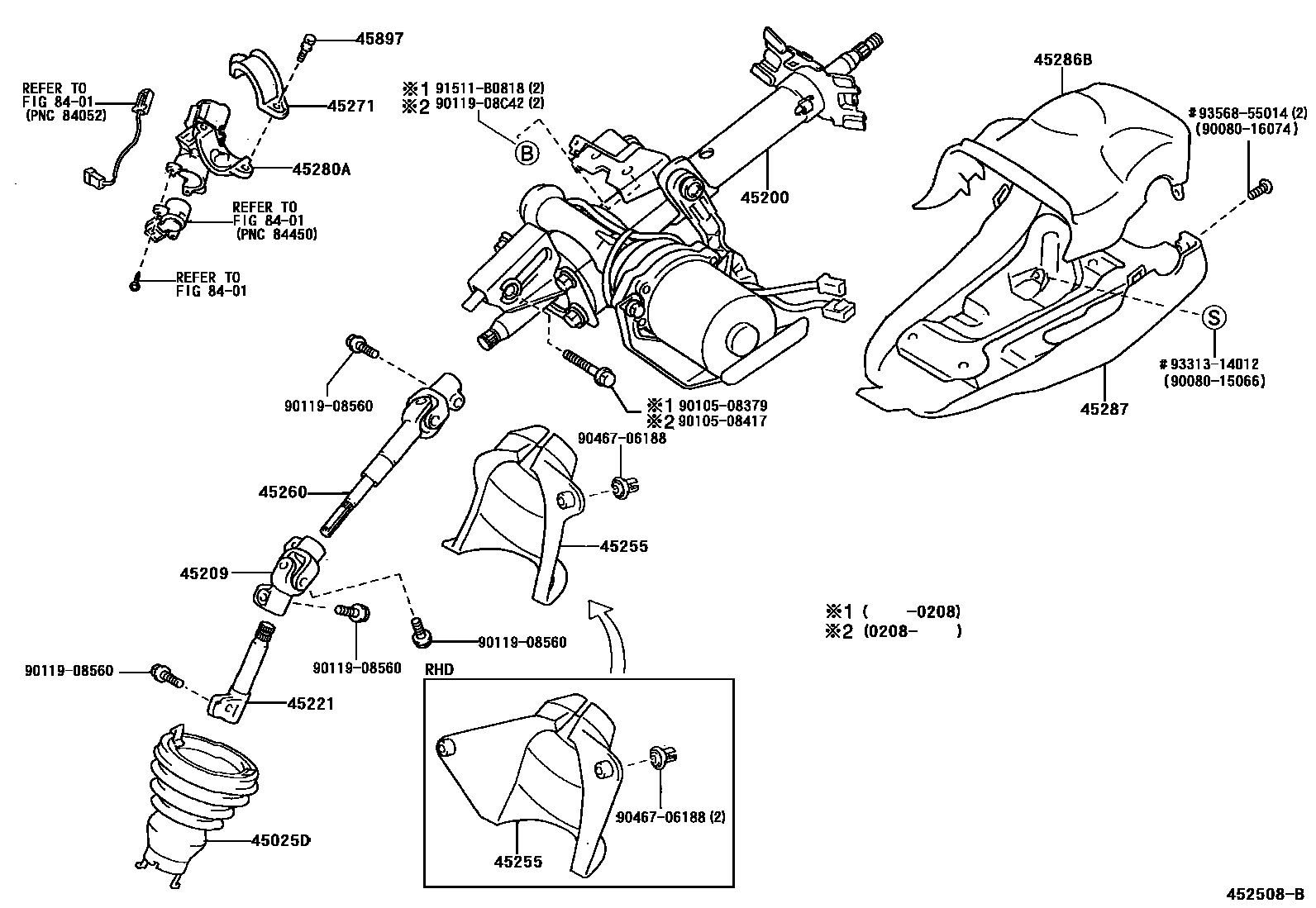

Toyota YARIS (FRP) — STEERING COLUMN & SHAFT

0001 1W(POWER STEERING) 0002 1W(MANUAL STEERING)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52020iSCP1#..RHD¥2,790200101-200302

main45025-52040iSCP1#..LHD¥2,790200101-200302

45200POST ASSY, STEERING

main45200-0D010iSCP1#..LHD..(LUNA,TRSTD)200101-200302

W(MANUAL STEERING)

main45200-0D020iNLP10,SCP1#..FRP..RHD..TRSTD..5F200101-200302

W(MANUAL STEERING)

main45200-0D060iSCP1#..LHD200101-200302

W(POWER STEERING)

main45200-0D061iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200302-200411

W(POWER STEERING)

sub45200-0D062

main45200-0D062iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200411

main45200-0D070iSCP1#..RHD200101-200302

W(POWER STEERING)

main45200-0D071iNLP10,SCP1#..FRP..RHD200302-200411

W(POWER STEERING)

sub45200-0D072

main45200-0D072iNLP10,SCP1#..FRP..RHD200411

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-0D010iSCP1#200101-200302

45221SHAFT, STEERING INTERMEDIATE

main45297-0D010iSCP1#200101-200302

sub45297-52070¥12,800

45255PLATE, STEERING COLUMN HOLE COVER

main45255-52010iSCP1#..RHD¥1,620200101-200302

main45255-52020iNLP10,SCP1#..FRP..LHD¥1,200200101-200302

sub45255-52060¥1,140

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0D030iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200101-200302

main45260-0D040iNLP10,SCP1#..FRP..RHD200101-200302

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNLP10,SCP1#..FRP¥520200101-200302

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-0D010iNLP10,SCP1#..FRP..MTM200101-200302

main45280-0D020iSCP12..4FC200205-200302

45286BCOVER, STEERING COLUMN, UPR

main45286-0D010-B1iSCP1#200101-200302

MD.GRAY,TRIM1#

main45286-0D010-B2iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17,18,19

main45286-0D010-B2iNLP10..FRP..RHD..TRSTD200302-200401

DK.GRAY,TRIM10,11,17

main45286-0D010-B2iNLP10,SCP1#..FRP..SOL200302

DK.GRAY,TRIM10,11

main45286-0D010-B2iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main45286-0D010-G0iSCP1#200101-200302

MIST GREEN,TRIM7#

45287COVER, STEERING COLUMN, LWR

main45024-0D010-B1iSCP1#200101-200208

MD.GRAY,TRIM1#

sub45024-0D011

main45024-0D010-G0iSCP1#200101-200208

MIST GREEN,TRIM7#

sub45024-0D011

main45024-0D011-B1iSCP1#200208-200302

MD.GRAY,TRIM1#

main45024-0D011-B2iNLP10,SCP1#..FRP..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main45024-0D011-B2iSCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11

main45024-0D011-B2iSCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302-200401

DK.GRAY,TRIM10,11,17

main45024-0D011-B2iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main45024-0D011-G0iSCP1#200208-200302

MIST GREEN,TRIM7#

45897BOLT, STEERING LOCK SET

main45897-12020iNLP10,SCP1#..FRP¥210200101-200302

8401

9008015066

main90080-15066¥60

9008016074

main90080-16074

9010508379

main90105-08379¥170

9010508417

main90105-08417¥170

9011908560

main90119-08560¥110

9011908C42

main90119-08C42¥80

9046706188

main90467-06188¥160

91511B0818

main91511-B0818¥110

9331314012

main93313-14012¥60

9356855014

main93568-55014¥70

22 parts on this diagram · 2 diagrams in section
