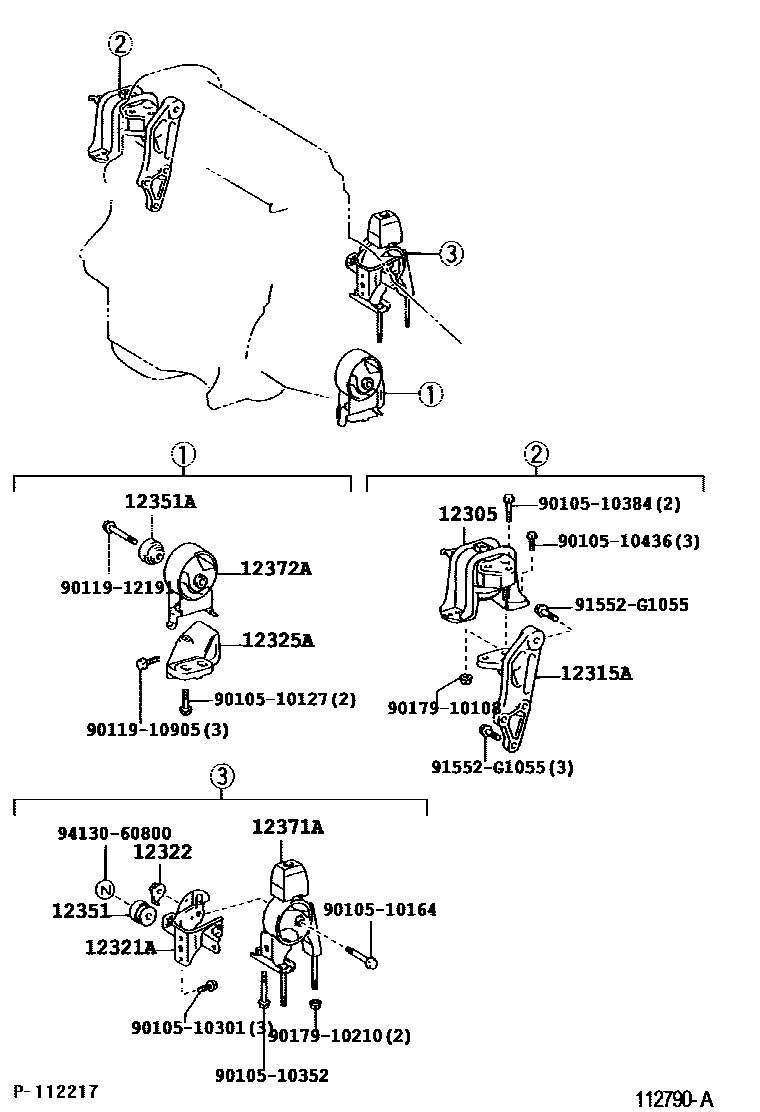

Toyota YARIS (FRP) — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12322BRACKET, ENGINE MOUNTING, REAR NO.2
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510127
9010510164
9010510301
9010510352
9010510384
9010510436
9011910905
9011912191
9017910108
9017910210
91552G1055
9413060800
21 parts on this diagram · 3 diagrams in section
