Toyota YARIS (FRP) — MAT & CARPET

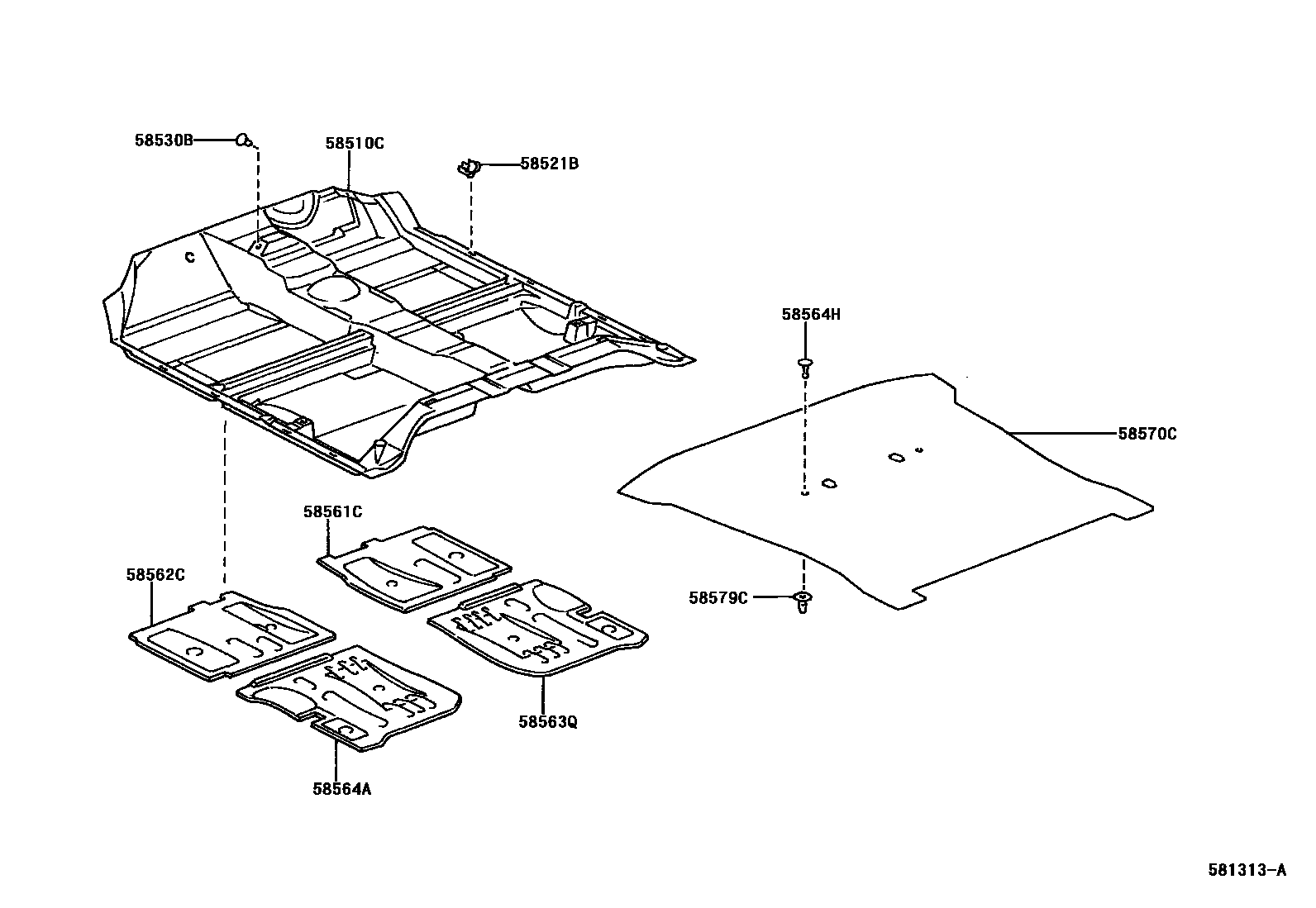

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-0D010-B0i200101-200205
W(REAR HEATER DUCT),GRAY,TRIM1#,7#
main58510-0D020-B0i200101-200205
GRAY,TRIM1#,7#
main58510-0D030-B0i200101-200302
GRAY,TRIM1#,7#
main58510-0D040-B0i200101-200302
W(REAR HEATER DUCT),GRAY,TRIM1#,7#
main58510-0D050-B0i200101-200302
GRAY,TRIM1#,7#
main58510-0D060-B0i200101-200302
GRAY,TRIM1#,7#
main58510-0D070-B0i200205-200302
W(KICK DOWN SWITCH & REAR HEATER DUCT),GRAY,TRIM1#,7#
main58510-0D070-B0i200205-200302
W(REAR HEATER DUCT),GRAY,TRIM1#,7#
main58510-0D080-B0i200205-200211
GRAY,TRIM1#,7#
main58510-0D280-B0i200302
W(REAR HEATER DUCT),DK.GRAY,TRIM10,11,17,18,19
main58510-0D280-B0i200302
W(REAR HEATER DUCT),DK.GRAY,TRIM10,11
main58510-0D290-B0i200302
DK.GRAY,TRIM10,11
main58510-0D290-B0i200302
DK.GRAY,TRIM10,11,17,18,19
main58510-0D290-B0i200306
DK.GRAY,TRIM10,11,17
main58510-0D300-B0i200302-200401
DK.GRAY,TRIM10,11,17
main58510-0D300-B0i200401
DK.GRAY,TRIM10,11,17,18
main58510-0D300-B0i200302
DK.GRAY,TRIM10,11
main58510-0D300-B0i200302
DK.GRAY,TRIM10,11,17,18,19
main58510-0D310-B0i200302
W(REAR HEATER DUCT),DK.GRAY,TRIM10,11
main58510-0D310-B0i200302
W(REAR HEATER DUCT),DK.GRAY,TRIM10,11,17,18,19
main58510-0D320-B0i200302
DK.GRAY,TRIM10,11
main58510-0D320-B0i200302
DK.GRAY,TRIM10,11,17,18,19
main58510-0D330-B0i200302
DK.GRAY,TRIM10,11,17,18,19
main58510-0D330-B0i200302-200401
DK.GRAY,TRIM10,11,17
main58510-0D330-B0i200302
DK.GRAY,TRIM10,11
main58510-0D330-B0i200401
DK.GRAY,TRIM10,11,17,18
58521BHOOK, FLOOR CARPET
main58521-0D010i200101-200302
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-10091i¥120200101-200302
58561CSILENCER, FRONT FLOOR, NO.1
main58561-0D010i200101-200302
main58561-0D060i200302
58562CSILENCER, FRONT FLOOR, NO.2
main58562-0D010i200101-200302
main58562-0D060i200302
58563QSILENCER, FRONT FLOOR, NO.3
main58563-0D010i200101-200302
58564ASILENCER, FRONT FLOOR, NO.4
main58564-0D010i200101-200302
58564HCLIP(FOR REAR FLOOR CARPET)
main90467-07026-B4i200101-200302
SHADOW GRAY,TRIM1#,7#
sub90467-07026¥140
main90467-07026-B5i200302-200401
DK.GRAY,TRIM10,11,17
sub90467-07026¥140
main90467-07026-B5i200302
DK.GRAY,TRIM10,11
sub90467-07026¥140
main90467-07026-B5i200302
DK.GRAY,TRIM10,11,17,18,19
sub90467-07026¥140
main90467-07026-B5i200401
DK.GRAY,TRIM10,11,17,18
sub90467-07026¥140
58570CCARPET ASSY, REAR FLOOR
main58570-0D010-B0i200302
DARK GRAY,TRIM10,11,17,18,19
main58570-0D010-B0i200302-200303
DARK GRAY,TRIM10,11
main58570-0D010-B0i200302-200401
DARK GRAY,TRIM10,11,17
main58570-0D010-B0i200401
DARK GRAY,TRIM10,11,17,18
main58570-0D010-C1i200101-200302
BLACK,TRIM1#,7#
main58570-0D020-B0i200401
W(INSULATOR),DARK GRAY,TRIM10,11,17,18
main58570-0D020-B0i200303
W(INSULATOR),DARK GRAY,TRIM10,11
main58570-0D020-B0i200303
W(INSULATOR),DARK GRAY,TRIM10,11,17,18,19
main58570-0D020-B0i200303-200401
W(INSULATOR),DARK GRAY,TRIM10,11,17
main58570-0D020-C1i200101-200302
W(INSULATOR),BLACK,TRIM1#,7#
main58570-0D020-C1i200205-200302
BLACK,TRIM1#,7#
58579CCLIP, REAR FLOOR CARPET SET
main90467-10023i¥70200101-200302

10 parts on this diagram · 1 diagram in section
