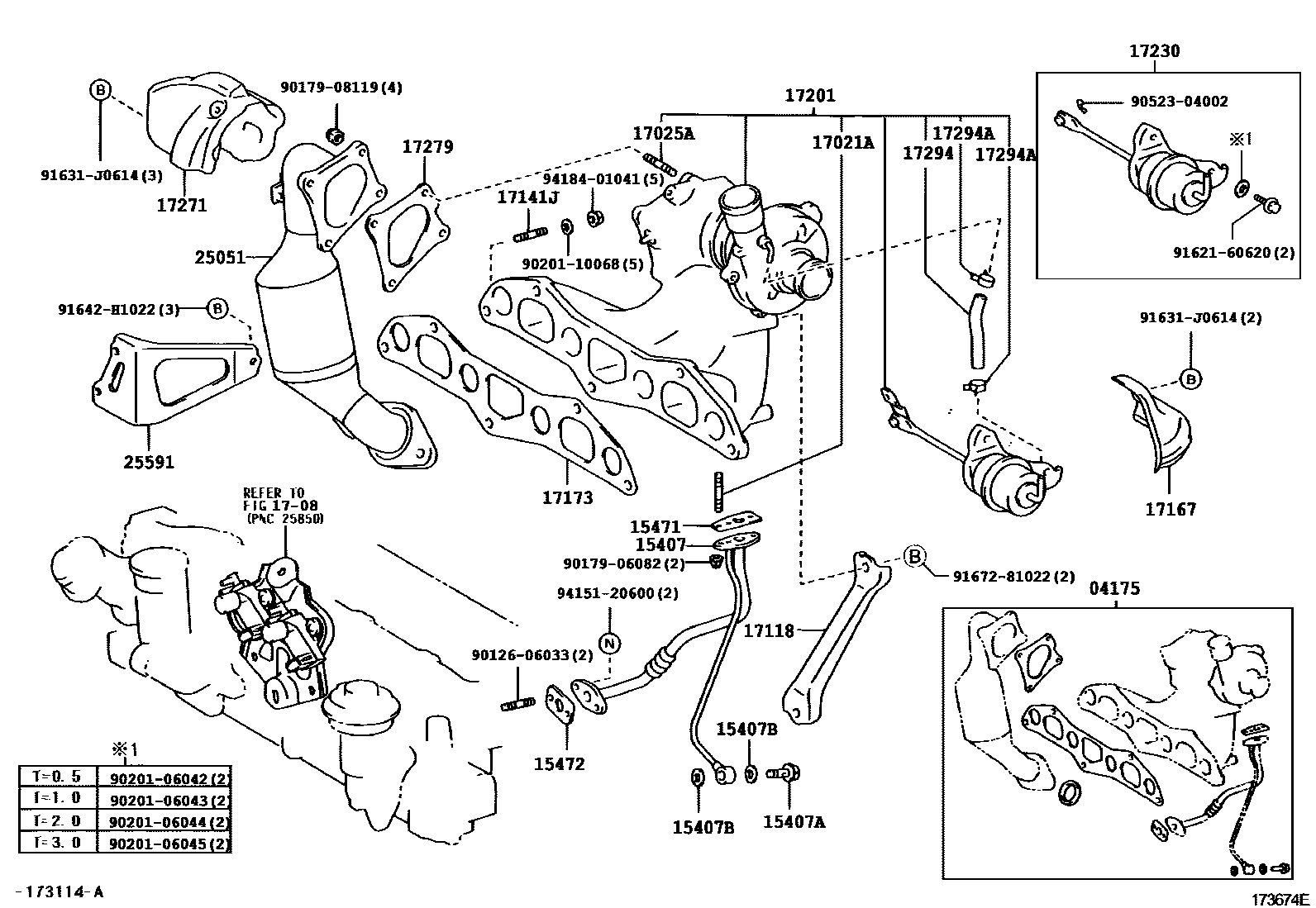

Toyota YARIS (FRP) — MANIFOLD
04175GASKET KIT, TURBOCHARGER
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
15407BGASKET(FOR TURBO OIL INLET PIPE)
15471GASKET, TURBO OIL INLET
15472GASKET, TURBO OIL OUTLET, NO.1
17021ABOLT, STUD(FOR BEARING HOUSING)
17025ABOLT, STUD(FOR TURBINE HOUSING)
1708
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
(J)
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(L)
(J)
(J)
17201TURBOCHARGER SUB-ASSY
17230ACTUATOR ASSY, W/BRACKET
17271INSULATOR, TURBO, NO.1
17279GASKET, TURBINE OUTLET ELBOW
17294HOSE, ACTUATOR
17294ACLIP(FOR ACTUATOR HOSE)
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*114=TOYOTA/0J010/Y
*114=TOYOTA/0J010/Y
*115=TOYOTA/03-/Y
25591BRACKET, MANIFOLD SUPPORT
9012606033
9017906082
9017908119
9020106042
9020106043
9020106044
9020106045
9020110068
9052304002
9162160620
91631J0614
91642H1022
9167281022
9415120600
9418401041
37 parts on this diagram · 4 diagrams in section
