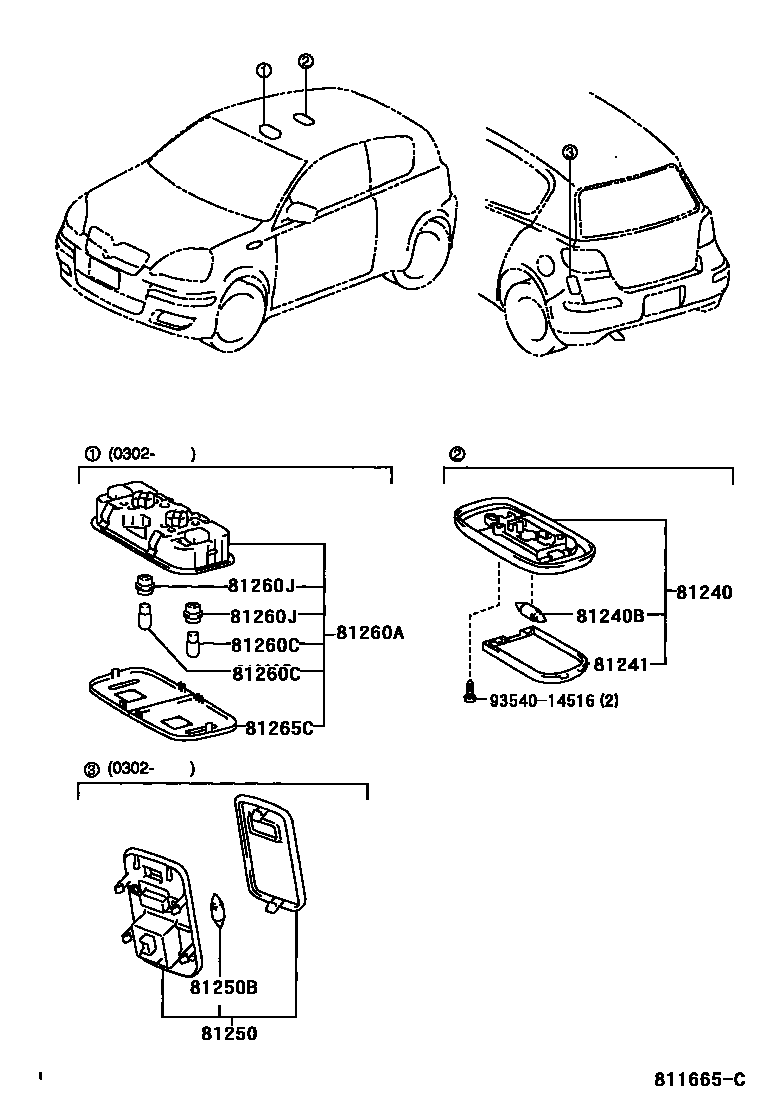

Toyota YARIS (FRP) — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-05030-B2iNLP10..FRP..RHD..TRSTD200302-200406

LT.GRAY,TRIM10,11,17,18

sub81240-05031

main81240-05030-B2iNLP10..FRP..RHD..TRSTD200302-200406

LT.GRAY,TRIM10,11,17

sub81240-05031

main81240-05030-B2iNLP10,SCP1#..FRP..SOL200302-200406

LT.GRAY,TRIM10,11

sub81240-05031

main81240-05031-B2iSCP10..FRP..TSGS;NLP10..FRP..RHD..TRSTD;SCP10..FRP..RHD..TRSTD..5FS200407

LT.GRAY,TRIM10,11

main81240-05031-B2iNLP10,SCP1#..FRP..SOL200407

LT.GRAY,TRIM10,11,17,18,19

main81240-05031-B2iNLP10,SCP1#..FRP..SOL200407

LT.GRAY,TRIM10,11,17

main81240-12060-P0iSCP1#200101-200302

LT.GRAY,TRIM1#,7#

sub81240-12060¥3,110

81240BBULB, ROOM LAMP, NO.1

main90080-81078iNLP10,SCP1#..FRP200302-200407

12V 10W

sub90981-WE001

main90981-14011iSCP1#¥180200101-200302

12V 8W

main90981-WE001iNLP10,SCP1#..FRP200407

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-05010iNLP10,SCP1#..FRP200302

main81241-12020iSCP1#¥400200101-200302

81250LAMP ASSY, ROOM, NO.2

main81330-05020iNLP10,SCP1#..FRP200302-200406

main81330-05021iNLP10,SCP1#..FRP¥2,910200407

sub81250-05040¥1,590

81250BBULB, ROOM LAMP, NO.2

main90080-81049iNLP10,SCP1#..FRP200302-200407

12V 5W

81260ALAMP ASSY, MAP

main81260-0D010-B0iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS200302-200401

LT.GRAY,TRIM10,11,17

main81260-0D010-B0iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS200302

LT.GRAY,TRIM10,11,17,18,19

main81260-0D010-B0iNLP10,SCP1#..FRP..SOL200302

LT.GRAY,TRIM10,11

main81260-0D010-B0iNLP10..FRP..RHD..TRSTD200401

LT.GRAY,TRIM10,11,17,18

81260CBULB(FOR MAP LAMP)

main90981-WB002iNLP10,SCP1#..FRP200302

12V

81260JSOCKET, BULB(FOR MAP LAMP)

main90069-81055iNLP10,SCP1#..FRP200302

81265CLENS, MAP LAMP, NO.1

main81265-0D010iNLP10,SCP1#..FRP200302

9354014516

main93540-14516¥260

10 parts on this diagram · 1 diagram in section
