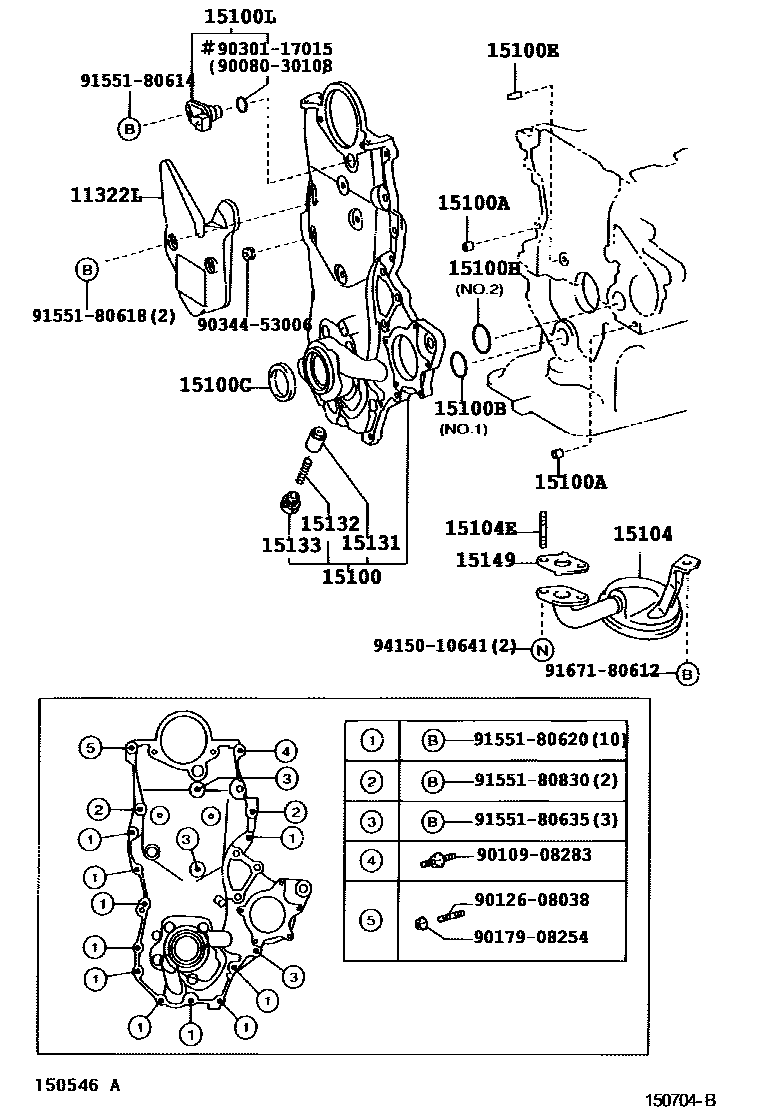

Toyota YARIS (FRP) — ENGINE OIL PUMP

0001 1 0002 1 0003 1

11322LCOVER, TIMING CHAIN, NO.2

main11322-0N010i1NDTV..NLP10..FRP200302

15100PUMP ASSY, OIL

main15100-23020i1SZFE,2SZFE..SCP1#¥15,300200101-200302

main15100-33020i1NDTV..NLP10..FRP¥20,100200302

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003i1NDTV..NLP10..FRP¥80200302

15100BRING, O(FOR OIL PUMP)

main90301-31012i1NDTV..NLP10..FRP¥240200302

NO.1

sub12151-21010¥80

main90301-42006i1NDTV..NLP10..FRP¥240200302

NO.2

sub11497-21010¥340

15100CSEAL(FOR OIL PUMP)

main90080-31093i1NDTV..NLP10..FRP200302

(L)

sub90311-38084¥400

main90311-38084i1NDTV..NLP10..FRP¥400200302

(J)

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main90250-10030i1NDTV..NLP10..FRP¥160200302

15100LSENSOR, CAM POSITION

main90080-19026i1NDTV..NLP10..FRP200302

(L)

main90919-05055i1NDTV..NLP10..FRP¥6,700200302

(J)

15104STRAINER SUB-ASSY, OIL

main15104-23040i1SZFE..SCP10¥4,270200101-200302

main15104-23050i2SZFE..SCP12¥4,560200205-200302

main15104-33020i1NDTV..NLP10..FRP¥3,110200302

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021i1NDTV..NLP10..FRP¥80200302

main92122-60614i1SZFE,2SZFE..SCP1#¥160200101-200302

15131VALVE, OIL PUMP RELIEF

main15131-24010i1NDTV..NLP10..FRP¥340200302

15132SPRING, OIL PUMP RELIEF VALVE

main15132-33020i1NDTV..NLP10..FRP¥260200302

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1NDTV..NLP10..FRP¥340200302-200404

main15133-33020i1NDTV..NLP10..FRP¥440200405

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NDTV..NLP10..FRP¥270200302

9008030108

main90080-30108

9010908283

main90109-08283¥80

9012608038

main90126-08038¥210

9017908254

main90179-08254¥80

9030117015

main90301-17015¥240

9034453006

main90344-53006¥130

9155180614

main91551-80614¥60

9155180618

main91551-80618¥60

9155180620

main91551-80620¥60

9155180635

main91551-80635¥80

9155180830

main91551-80830¥80

9167180612

main91671-80612¥60

9415010641

main94150-10641¥60

26 parts on this diagram · 3 diagrams in section
