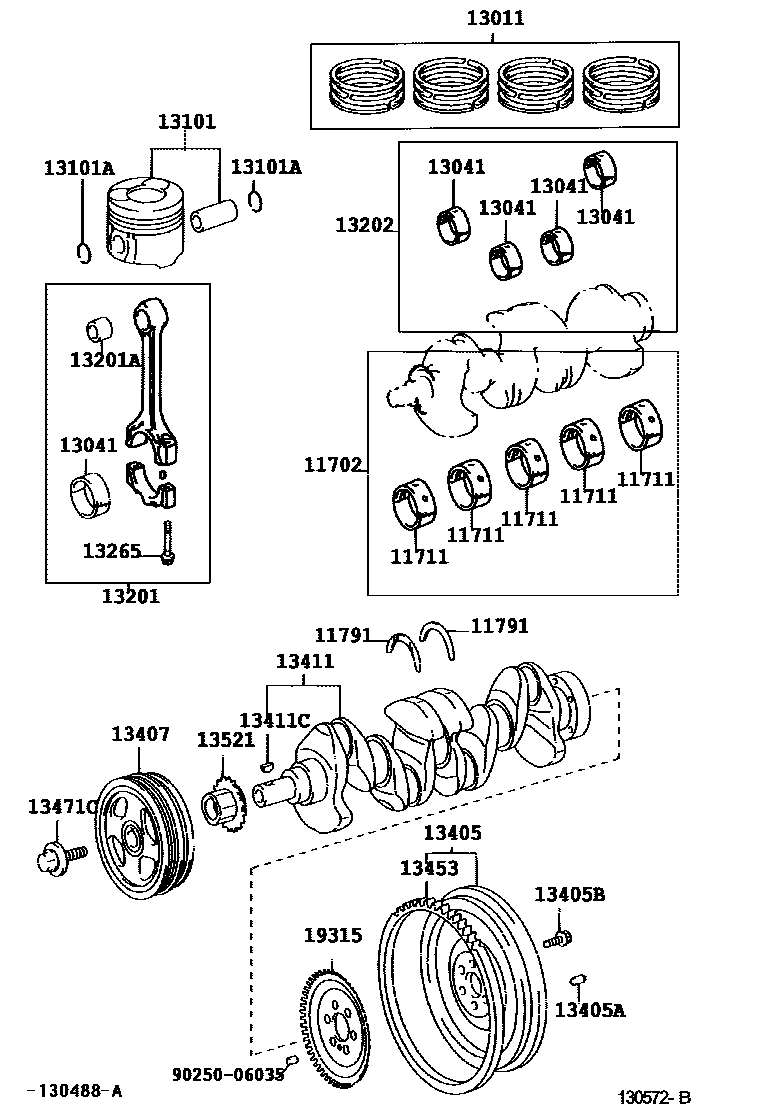

Toyota YARIS (FRP) — CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK5,(L):REFER R/M
MARK 1:REFER TO REPAIR MANUAL,MARK 1,(J)
MARK 2:REFER TO REPAIR MANUAL,MARK 2,(J)
MARK 3:REFER TO REPAIR MANUAL,MARK 3,(J)
MARK 4:REFER TO REPAIR MANUAL,MARK 4,(J)
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
O/S 0.125
O/S 0.25
13011RING SET, PISTON
STD
STD
STD
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 1,(J):REFER R/M
MARK 2,(J):REFER R/M
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 3,(J):REFER R/M
(J):REFER R/M
MARK 1:REFER TO REPAIR MANUAL,MARK 1
MARK 2:REFER TO REPAIR MANUAL,MARK 2
MARK 3:REFER TO REPAIR MANUAL,MARK 3
MARK 1:REFER TO REPAIR MANUAL,MARK1
MARK 2:REFER TO REPAIR MANUAL,MARK2
MARK 3:REFER TO REPAIR MANUAL,MARK3
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
O/S 0.50
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13407DAMPER SUB-ASSY, CRANKSHAFT
13411CRANKSHAFT
(J)
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13453GEAR, FLYWHEEL RING
(L)
(J)
13471PULLEY, CRANKSHAFT
(L)
(J)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
19315PLATE, CRANK ANGLE SENSOR, NO.1
9025006035
23 parts on this diagram · 3 diagrams in section
