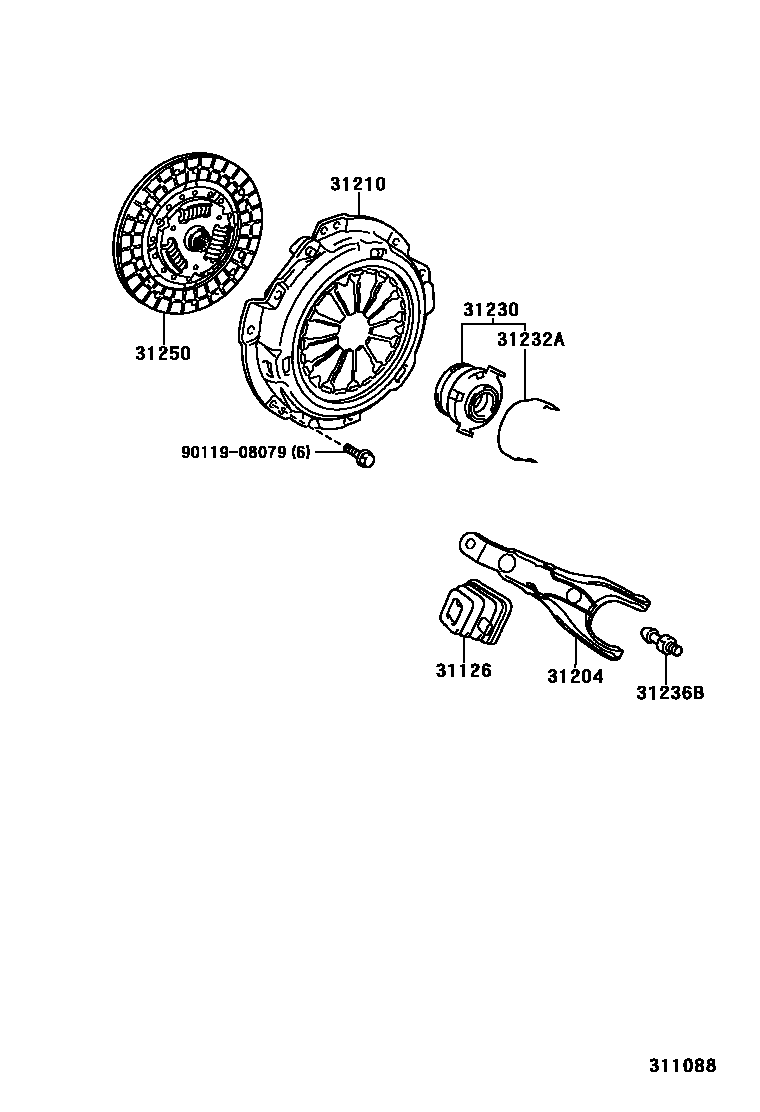

Toyota YARIS (FRP) — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0D010iNLP10,SCP12..FRP..5F200302

(L)

sub31126-12051¥570

main31126-0D010iSCP12..5F200205-200302

sub31126-12051¥570

main31126-12051iSCP10..FRP..5F¥570200101-200302

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iSCP1#..5F¥2,630200101-200302

main31204-52010iNLP10..FRP¥1,290200302

main31204-52020iSCP10..FRP..TSGS¥2,030200306

31210COVER ASSY, CLUTCH

main31210-0D010iSCP10..FRP..5F¥11,100200101-200302

main31210-0D030iSCP12..5F200205-200302

main31210-0D040iNLP10..FRP200302

main31210-52030iSCP10..FRP..5FS200302

sub31210-70010

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNLP10..FRP¥4,470200302

sub31230-12181¥3,520

main31230-52010iSCP1#..FRP..5F¥2,530200101-200505

sub31230-52011¥2,530

main31230-52011iSCP1#..FRP..5F¥2,530200505

main31230-52031iSCP10..FRP..5FS200302-200505

sub31230-52032

main31230-52032iSCP10..FRP..5FS200505

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNLP10..FRP¥110200302

main31232-52010iSCP1#..5F¥180200101-200302

main31232-52031iSCP10..FRP..5FS¥130200302

31236BSUPPORT, RELEASE FORK

main31236-12011iSCP12..FRP..5F¥710200205-200302

main31236-12020iNLP10..FRP¥460200302

main31236-52010iSCP10¥510200101-200302

31250DISC ASSY, CLUTCH

main31250-0D010iSCP10200101-200210

sub31250-0D050

main31250-0D030iSCP12..5F200205-200210

sub31250-0D060

main31250-0D040iNLP10..FRP200302

sub31250-0D041

main31250-0D050iSCP10200210-200308

sub31250-0D051¥8,400

main31250-0D051iSCP10..FRP..5F¥8,400200308

main31250-0D060iSCP12..FRP..5F200210-200302

9011908079

main90119-08079¥120

8 parts on this diagram · 2 diagrams in section
