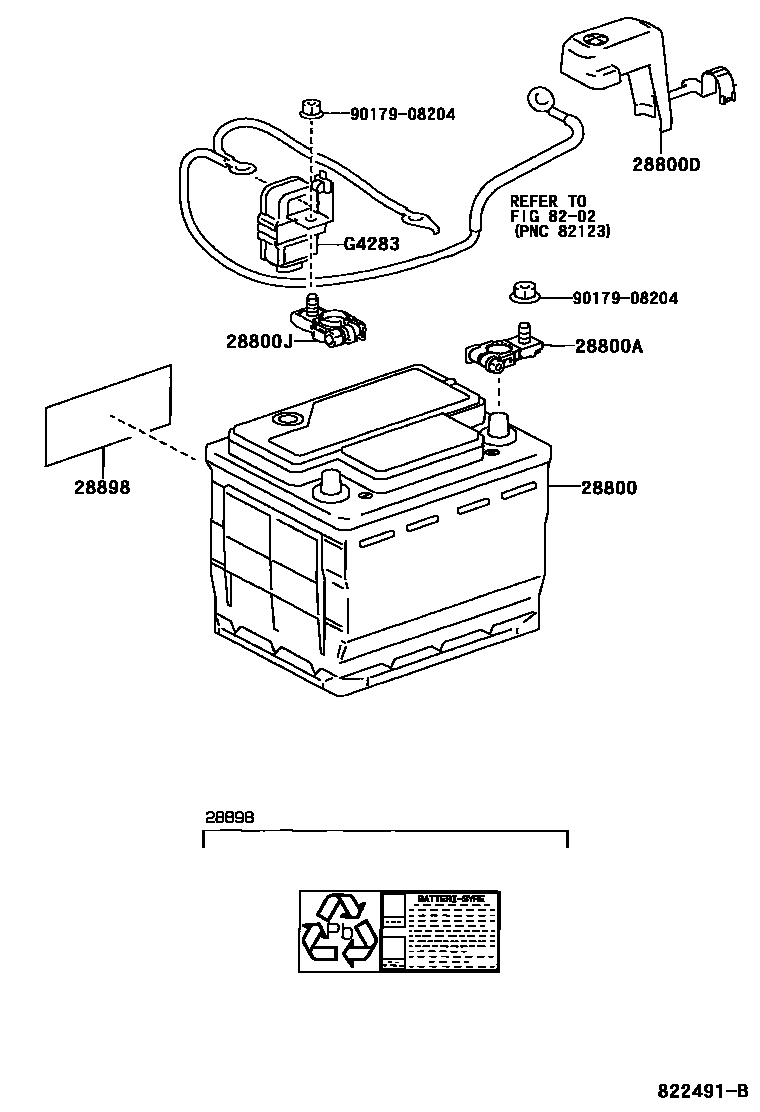

Toyota YARIS (FRP) — BATTERY & BATTERY CABLE

28800BATTERY

main28800-0J010i1SZFE,2SZFE..SCP1#..5F200101-200302

LN1

main28800-0J020i1SZFE,2SZFE..SCP1#200101-200302

LN1

main28800-0N010i1NDTV..NLP10;1SZFE..SCP10..TSGS200302

LN2

main28800-0N020i1NDTV..NLP10..FRP200302

LN3

28800ATERMINAL, BATTERY POSITIVE

main90982-05056i1NDTV,1SZFE,2SZFE..NLP10,SCP1#¥850200101-200302

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-0D010i1NDTV..NLP10;1SZFE..SCP10..TSGS200302

main82821-52060i1SZFE,2SZFE..SCP1#¥760200101-200302

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i1SZFE..SCP10..FRP..TSGS¥390200306

28898PLATE, BATTERY

main28898-0B010i1NDTV,1SZFE,2SZFE..NLP10,SCP1#..LHD..(SOL,TRSTD)200302

main28898-46010i1SZFE,2SZFE..SCP1#..LHD¥200200101-200302

8202

G4283SENSOR, BATTERY CURRENT

mainG428352071iSCP10..FRP..TSGS200306

9017908204

main90179-08204¥140

8 parts on this diagram · 1 diagram in section
