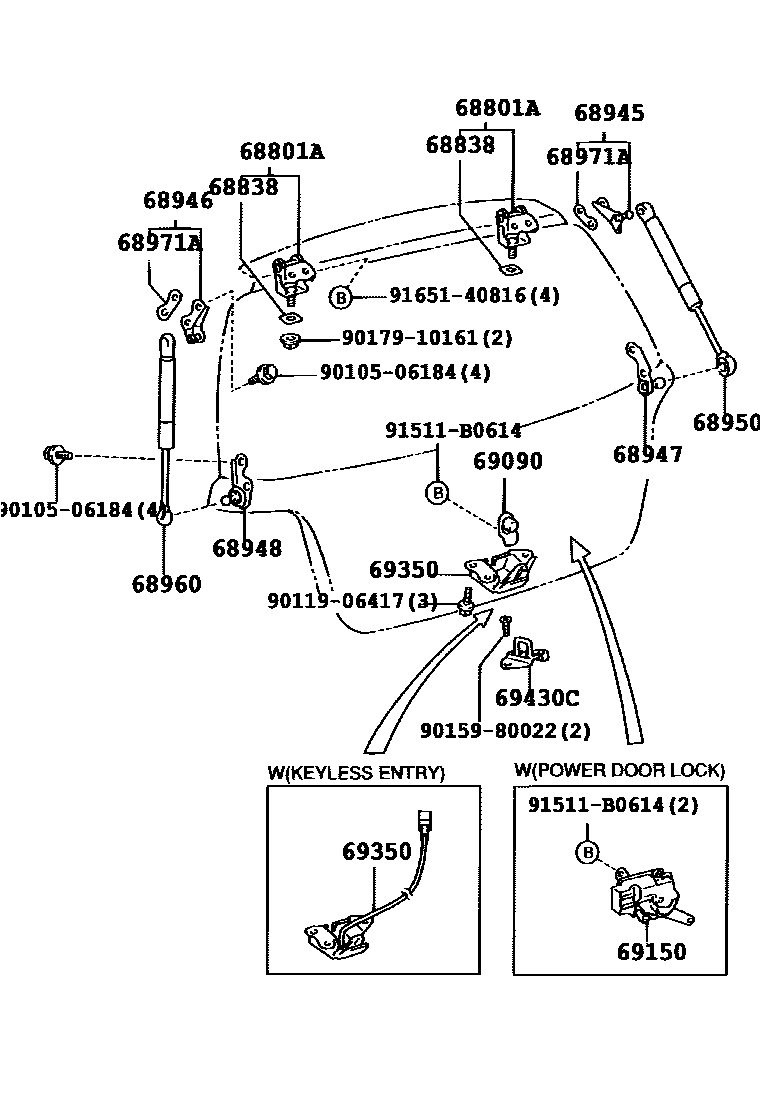

Toyota YARIS (FRP) — BACK DOOR LOCK & HANDLE

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-0D010iNLP10,SCP1#..FRP200302

main68801-52010iSCP1#¥1,810200101-200302

68838PAD, BACK DOOR HINGE, NO.1

main68838-0D010iNLP10,SCP1#..FRP200302

T=1.0

main68838-0D020iNLP10,SCP1#..FRP200302

T=0.5

main68838-10020iSCP1#¥260200101-200302

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52010iSCP1#¥390200101-200302

sub68945-52070¥450

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-52010iSCP1#¥390200101-200302

sub68946-52030¥450

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-52010iSCP1#¥350200101-200302

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-52010iSCP1#¥350200101-200302

68950CSTAY ASSY, BACK DOOR, RH

main68950-09110iSCP1#200101-200302

sub68950-09111

68960STAY ASSY, BACK DOOR, LH

main68950-09120iNLP10,SCP1#..FRP200101-200302

sub68950-09121

68971APACKING, BACK DOOR STAY, NO.1

main68971-52010iNLP10,SCP1#..FRP¥170200101-200302

RH

main68971-52020iNLP10,SCP1#..FRP¥170200101-200302

LH

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-0D010iSCP10200101-200203

main69090-0D020iSCP1#200203-200302

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-0D010iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200407

sub69150-0D011

main69150-0D011iNLP10,SCP1#..FRP..(SOL,TRSTD)200407

69350LOCK ASSY, BACK DOOR

main69350-0D010iSCP1#200101-200302

main69350-0D030iNLP10,SCP1#..FRP200302-200407

sub69350-0D031

main69350-0D031iNLP10,SCP1#..FRP200407

main69350-52080iSCP1#¥7,500200101-200302

W(KEY LESS ENTRY)

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0D010iSCP1#200101-200302

9010506184

main90105-06184¥70

9011906417

main90119-06417¥120

9015980022

main90159-80022¥100

9017910161

main90179-10161¥100

91511B0614

main91511-B0614¥90

9165140816

main91651-40816¥80

19 parts on this diagram · 1 diagram in section
