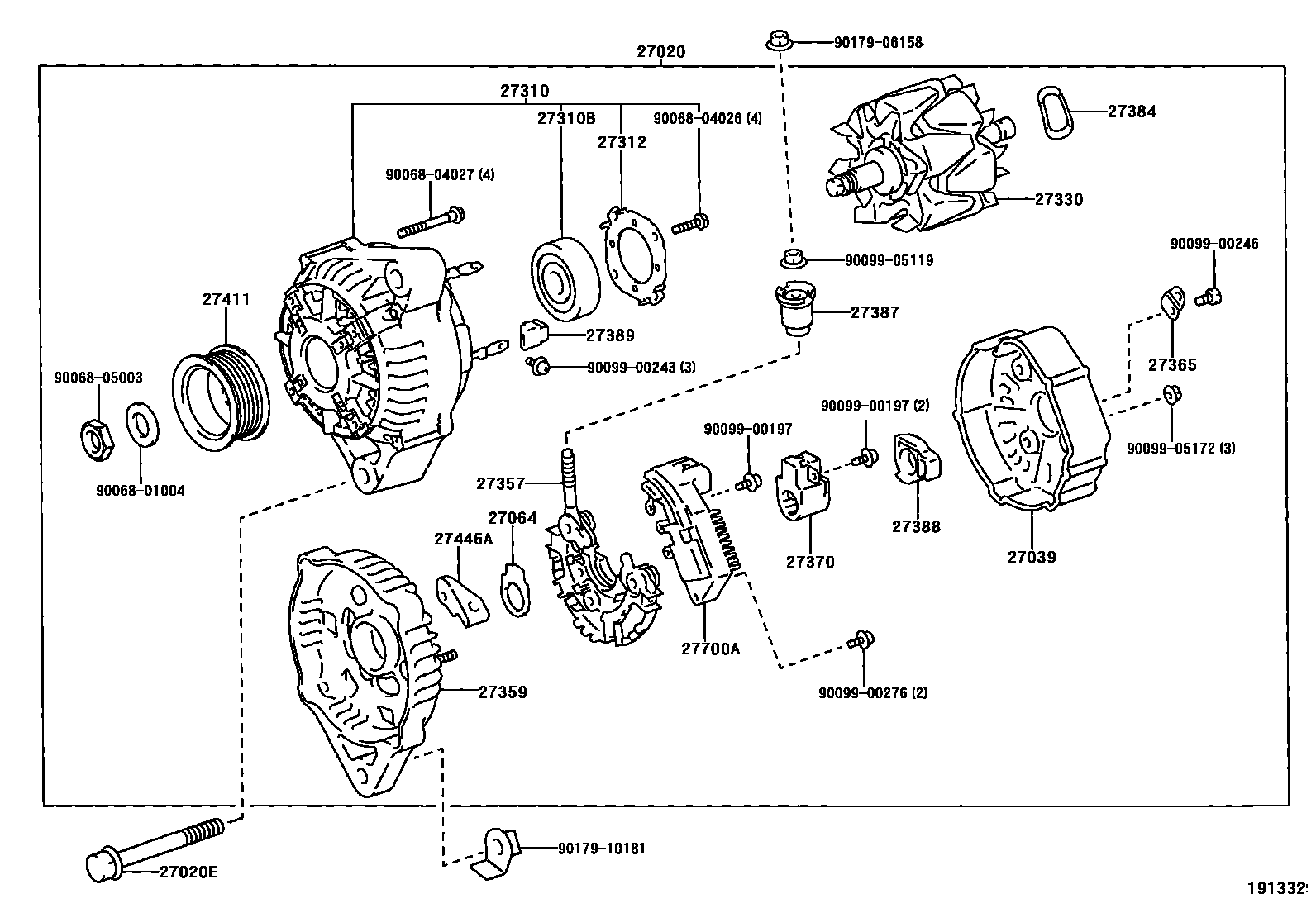

Toyota YARIS (FRP) — ALTERNATOR

0001 112V 70A,90A 0002 112V 70A,NAME PLATE MARK;NB 0003 112V 70A,NAME PLATE MARK;NC 0004 112V 90A,NAME PLATE MARK;ND 0005 112V 90A,NAME PLATE MARK;NE 0006 112V 70A,90A

27020ALTERNATOR ASSY

main27060-0J010i1SZFE,2SZFE..SCP1#200101-200302

12V 70A

sub27060-0J030

main27060-0J020i1SZFE,2SZFE..SCP1#..LHD200101-200302

12V 90A

sub27060-0J040

main27060-0J030i1SZFE,2SZFE..SCP1#..FRP..(SOL,TRSTD)200302-200409

12V 70A

main27060-0J040i1SZFE,2SZFE..SCP1#..FRP200302

12V 90A

main27060-33010i1NDTV..NLP10..FRP¥117,000200302

12V 70A,MARK = NB

sub27060-33020¥117,000

main27060-33020i1NDTV..NLP10..FRP¥117,000200302

12V 70A,MARK = NC

main27060-33030i1NDTV..NLP10..FRP¥129,000200302

12V 90A,MARK = ND

sub27060-33040¥129,000

main27060-33040i1NDTV..NLP10..FRP¥129,000200302

12V 90A,MARK = NE

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1NDTV..NLP10..FRP¥180200302

main90105-10468i1SZFE,2SZFE..SCP1#¥390200101-200302

27039COVER, ALTERNATOR REAR END

main27039-55080i1SZFE,2SZFE..SCP1#200101-200302

sub27039-70470

27064SEAL, ALTERNATOR PLATE

main27064-42010i1SZFE,2SZFE..SCP1#200101-200302

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0J010i1SZFE,2SZFE..SCP1#200101-200302

12V 70A

main27310-0J020i1SZFE,2SZFE..SCP1#..LHD200101-200302

12V 90A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10016i1SZFE,2SZFE..SCP1#200101-200302

27312PLATE, RETAINER

main27312-0J010i1SZFE,2SZFE..SCP1#200101-200302

27330ROTOR ASSY, ALTERNATOR

main27330-0J010i1SZFE,2SZFE..SCP1#..FRP..(SOL,TRSTD)200101-200409

12V 70A

main27330-0J020i1SZFE,2SZFE..SCP1#..FRP200101-200302

12V 90A

main27330-67100i1NDTV..NLP10..FRP200302

12V 70A

main27330-74550i1NDTV..NLP10..FRP200302

12V 90A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-21060i1NDTV..NLP10..FRP200302

12V 70A

main27357-22050i1SZFE,2SZFE..SCP1#..FRP200302

12V 90A

main27357-22070i1NDTV..NLP10..FRP200302

12V 90A

main27357-23040i1SZFE,2SZFE..SCP1#200101-200302

12V 70A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-0J010i1SZFE,2SZFE..SCP1#200101-200302

27365PLATE, TERMINAL

main27365-55080i1SZFE,2SZFE..SCP1#¥0200101-200302

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i1NDTV..NLP10..FRP200302

12V 70A

main27370-75060i1NDTV..NLP10..FRP200302

12V 90A

main27370-75060i1NDTV..NLP10..FRP200101-200302

12V 70A,90A

27384WASHER

main27384-16380i1SZFE,2SZFE..SCP1#200101-200302

27387INSULATOR, TERMINAL

main27387-42021i1SZFE,2SZFE..SCP1#200101-200302

27388COVER, ALTERNATOR BRUSH

main27388-42010i1SZFE,2SZFE..SCP1#200101-200302

27389INSULATOR, TERMINAL

main27389-0J010i1SZFE,2SZFE..SCP1#200101-200302

27411PULLEY, ALTERNATOR

main27411-0J010i1SZFE,2SZFE..SCP1#200101-200302

12V 70A,90A

main27411-33050i1NDTV..NLP10..FRP200302

12V 70A

main27411-74070i1NDTV..NLP10..FRP200302

12V 90A

27446ACLAMP

main27446-72250i1SZFE,2SZFE..SCP1#200101-200302

27700AREGULATOR ASSY, GENERATOR

main27700-21010i1NDTV..NLP10..FRP¥19,500200302

main27700-23010i1SZFE,2SZFE..SCP1#¥19,700200101-200302

9006801004

main90068-01004

9006804026

main90068-04026

9006804027

main90068-04027

9006805003

main90068-05003

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009900276

main90099-00276¥110

9009905119

main90099-05119

9009905172

main90099-05172

9017906158

main90179-06158¥70

9017910181

main90179-10181¥160

31 parts on this diagram · 6 diagrams in section
