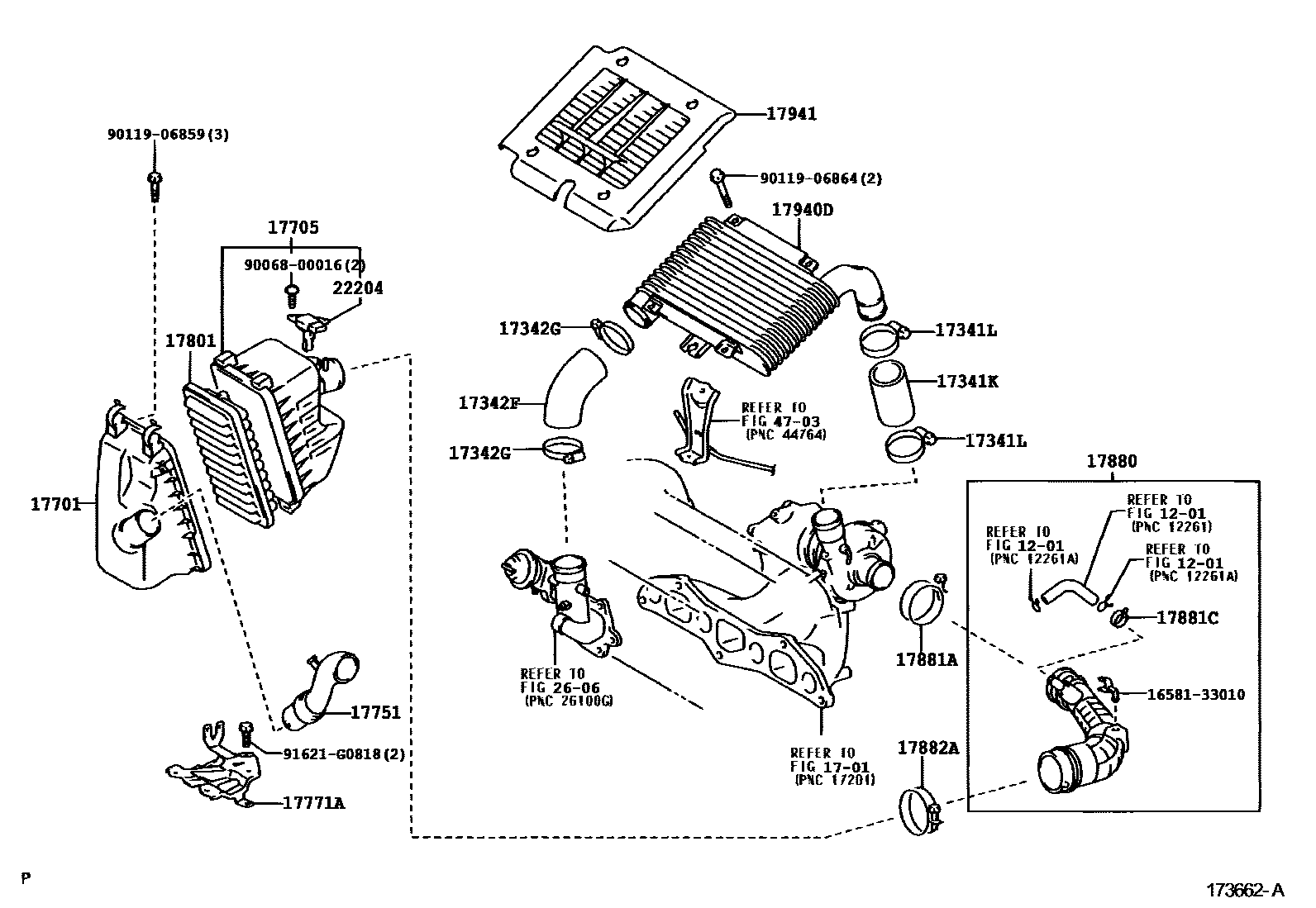

Toyota YARIS (FRP) — AIR CLEANER

0001 1 0002 1 0003 1

1201

1701

17341KHOSE, AIR, NO.1(FOR INTERCOOLER)

main17341-33010i1NDTV..NLP10..FRP¥1,550200302-200309

sub17341-33030¥1,550

main17341-33030i1NDTV..NLP10..FRP¥1,550200309

17341LCLAMP, HOSE

main90466-41005i1NDTV..NLP10..FRP¥310200302

17342FHOSE, AIR, NO.2(FOR INTERCOOLER)

main17342-33010i1NDTV..NLP10..FRP¥2,290200302

17342GCLAMP, HOSE, NO.2(FOR INTERCOOLER)

main90460-60006i1NDTV..NLP10..FRP¥310200302

17701CASE SUB-ASSY, AIR CLEANER

main17701-0N010i1NDTV..NLP10..FRP200302

17705CAP SUB-ASSY, AIR CLEANER

main17705-0J010i1SZFE,2SZFE..SCP1#200101-200505

main17705-0N010i1NDTV..NLP10..FRP200302

17751INLET, AIR CLEANER, NO.1

main17751-0J010i1SZFE,2SZFE..SCP1#200101-200302

sub17751-23030¥4,150

main17751-33060i1NDTV..NLP10..FRP200302

17771ABRACKET, AIR CLEANER

main17771-33020i1NDTV..NLP10..FRP¥2,320200302

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0N010i1NDTV..NLP10..FRP200302

(L)

main17801-23030i1SZFE,2SZFE..SCP1#..FRP¥2,200200101-200505

main17801-33040i1NDTV..NLP10..FRP¥2,940200302

(J)

17880HOSE ASSY, AIR CLEANER

main17880-0N010i1NDTV..NLP10..FRP200302

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10580i1NDTV..NLP10..FRP¥170200302

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96134-52600i1NDTV..NLP10..FRP¥200200302

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10690i1NDTV..NLP10..FRP¥160200302

17940DINTERCOOLER ASSY

main17940-33010i1NDTV..NLP10..FRP¥47,600200302

17941GUIDE, INTERCOOLER AIR, NO.1

main17941-33010i1NDTV..NLP10..FRP¥6,800200302

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0J010i1SZFE,2SZFE..SCP1#¥19,800200101-200505

sub22204-0C020¥12,400

main22204-0N010i1NDTV..NLP10..FRP200302

sub22204-0L010

2606

4703

1658133010CLAMP, HOSE(FOR WATER HOSE)

main16581-33010

9006800016

main90068-00016¥70

9011906859

main90119-06859¥130

9011906864

main90119-06864¥80

91621G0818

main91621-G0818¥80

25 parts on this diagram · 3 diagrams in section
