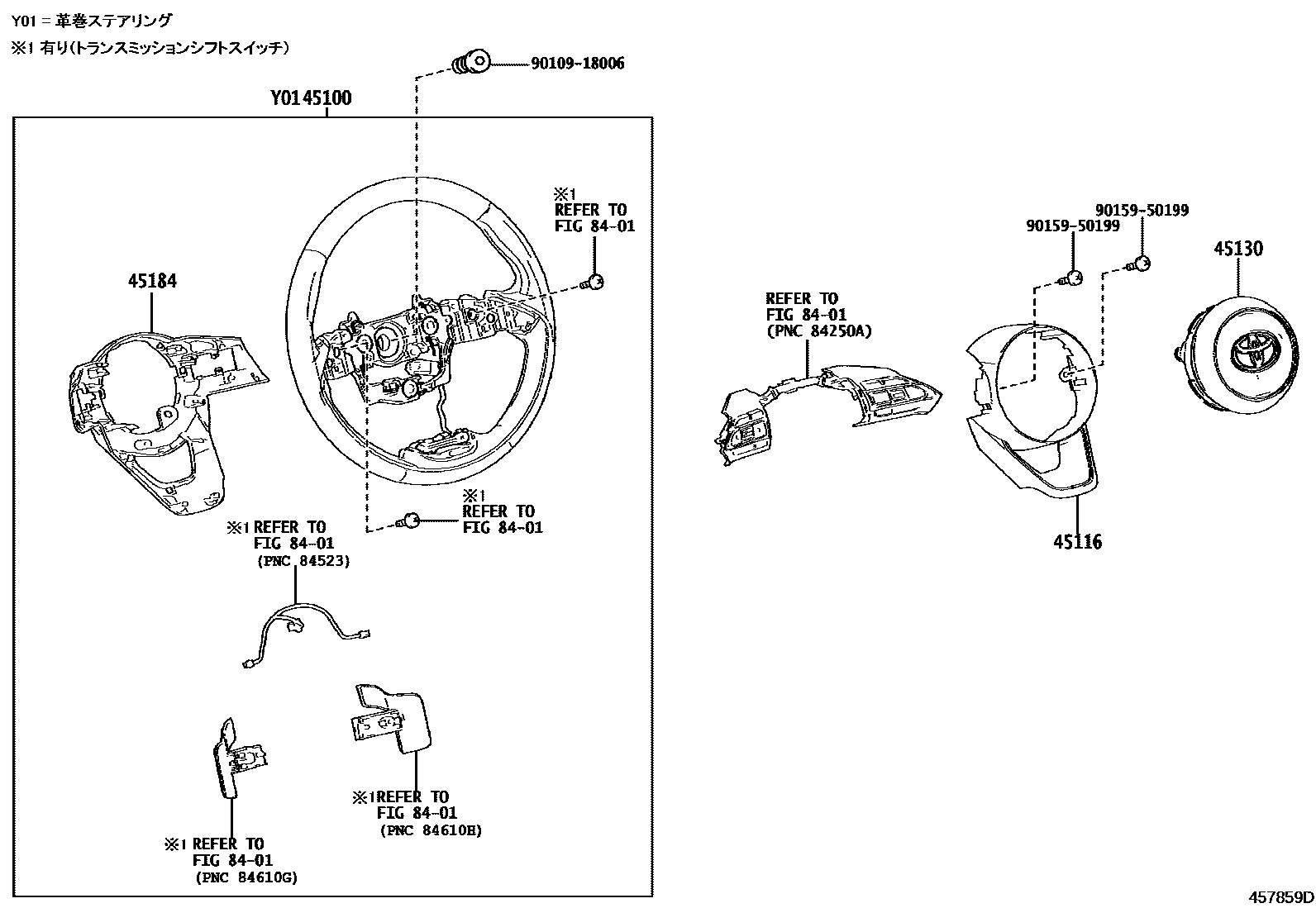

Toyota YARIS CROSS — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-52670-C0iMXPB1#,MXPJ1#..HBDZ,Z202208-202212

sub45100-52671¥61,800

main45100-52671-C0iMXPJ1#..U202301-202401

main45100-52671-C0iMXPB1#,MXPJ1#..G,HBDG202401

main45100-52671-C0iMXPB1#,MXPJ1#..HBDZ,Z202401

main45100-52671-C0iMXPB1#,MXPJ1#..HBDZ,Z202301-202401

main45100-52710-C0iMXPB1#,MXPJ1#..HBDX,X202008-202212

sub45100-52711¥17,500

main45100-52711-C0iMXPB1#,MXPJ1#..HBDX,U,X202301-202401

main45100-52720-C0iMXPB1#,MXPJ1#..HBDZ,Z202008-202208

sub45100-52721¥40,100

main45100-52720-C0iMXPB1#,MXPJ1#..G,HBDG202008-202212

sub45100-52721¥40,100

main45100-52721-C0iMXPB1#,MXPJ1#..G,HBDG202401

main45100-52721-C0iMXPB1#,MXPJ1#..G,HBDG202301-202401

main45100-52800-C0iMXPJ10..GRS202208-202212

sub45100-52801¥40,100

main45100-52801-C0iMXPJ10..GRS202301-202401

main45100-52820-C0iMXPB10..GRS202208-202212

sub45100-52821¥44,200

main45100-52821-C0iMXPB10..GRS202301-202401

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-52200-C0iMXPB1#,MXPJ1#..HBDX,X202008-202401

BLACK,TRIM2#

main45116-52220-C0iMXPB10,MXPJ10..GRS202208-202401

BLACK & SILVER METALLIC,TRIM2#

main45116-K0020-C1iMXPB1#,MXPJ1#..G,HBDG202008-202401

BLACK,TRIM4#

main45116-K0020-C1iMXPB1#,MXPJ1#..HBDZ,Z202008-202401

BLACK,TRIM41

main45116-K0020-C2iMXPB1#,MXPJ1#..G,HBDG202008-202401

SILVER,TRIM6#

main45116-K0020-C2iMXPB1#,MXPJ1#..HBDZ,Z202008-202401

SILVER,TRIM2#,40

main45116-K0020-C6iMXPB1#,MXPJ1#..HBDZ,Z202401

BLACK/DK.SILVER,TRIM2#,4#

main45116-K0020-C6iMXPB1#,MXPJ1#..HBDZ,Z202401

BLACK/DK.SILVER,TRIM2#

45130BUTTON ASSY, HORN

main45130-52860-C0iMXPB1#,MXPJ1#..G,HBDG202008-202401

BLACK,TRIM2#,4#

sub45130-52861¥53,500

main45130-52860-C0iMXPB1#,MXPJ1#..HBDZ,Z202008-202401

BLACK,TRIM4#,6#

sub45130-52861¥53,500

main45130-52860-C0iMXPB1#,MXPJ1#..HBDZ,Z202008-202401

BLACK,TRIM2#

sub45130-52861¥53,500

main45130-52A20-C0iMXPB1#,MXPJ1#..HBDZ,Z202401-202404

BLACK,TRIM2#

main45130-52A20-C0iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDX,U,X202401-202404

BLACK,TRIM2#,4#

main45130-52A21-C0iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDX,U,X202405

BLACK,TRIM2#

main45130-52A21-C0iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDX,U,X202405

BLACK,TRIM2#,4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-52210-C0iMXPJ10..GRS,HBDX;MXPB1#,MXPJ15..HBDX,X202008-202401

BLACK,TRIM2#,4#

main45184-52210-C0iMXPJ10..GRS,HBDX;MXPB1#,MXPJ15..HBDX,X202008-202401

BLACK,TRIM4#,6#

main45184-52210-C0iMXPJ10..GRS,HBDX;MXPB1#,MXPJ15..HBDX,X202008-202401

BLACK,TRIM2#

main45184-K0020-C0iMXPB10..GRS202208-202401

BLACK,TRIM2#

8401

9010918006

main90109-18006¥240

9015950199

main90159-50199¥70

7 parts on this diagram · 1 diagram in section
