Toyota YARIS CROSS — STANDARD TOOL

0001 1 0002 1

09105BOX SET, JACK

main09105-52020¥4,300

09110JACK ASSY

main09111-47050¥5,900

main09111-47051¥5,900

09113HANDLE, JACK

main09113-42030¥550

09120BAG, TOOL

main09120-16030¥450

main09120-37030¥860

09120CBAG,TOOL, NO.2

09130PLIERS

main99913-11500¥400

09135DRIVER, SCREW

main99915-10700¥460

09141SPANNER

main99914-11214¥400

main99914-10810¥240

09150WRENCH, HUB NUT BOX

main09150-42010¥1,150

09184STOPPER, WHEEL

main09184-00010¥770

42683SEAL, TIRE REPAIR

main42606-F4040iMXPB1#,MXPJ1#¥2,800202008-202012

sub42606-F4041¥2,800

main42606-F4041iMXPB1#,MXPJ1#¥2,800202101-202401

main42606-F4041iMXPB1#,MXPJ1#¥2,800202401

44890DCOMPRESSOR ASSY, AIR

main42680-F4011iMXPB1#,MXPJ1#¥9,500202008-202012

sub42680-F4012¥9,500

main42680-F4012iMXPB1#,MXPJ1#¥9,500202101-202109

sub42680-F4013¥9,500

main42680-F4013iMXPB1#,MXPJ1#¥9,500202110-202401

51960HOOK ASSY, FRONT

main51960-12110iMXPB1#,MXPJ1#¥1,800202008-202401

58791DCARRIER, JACK

58792HSUPPORT, JACK CARRIER

64766FBEZEL, JACK COVER, LOWER

9167380616

main91673-80616¥60

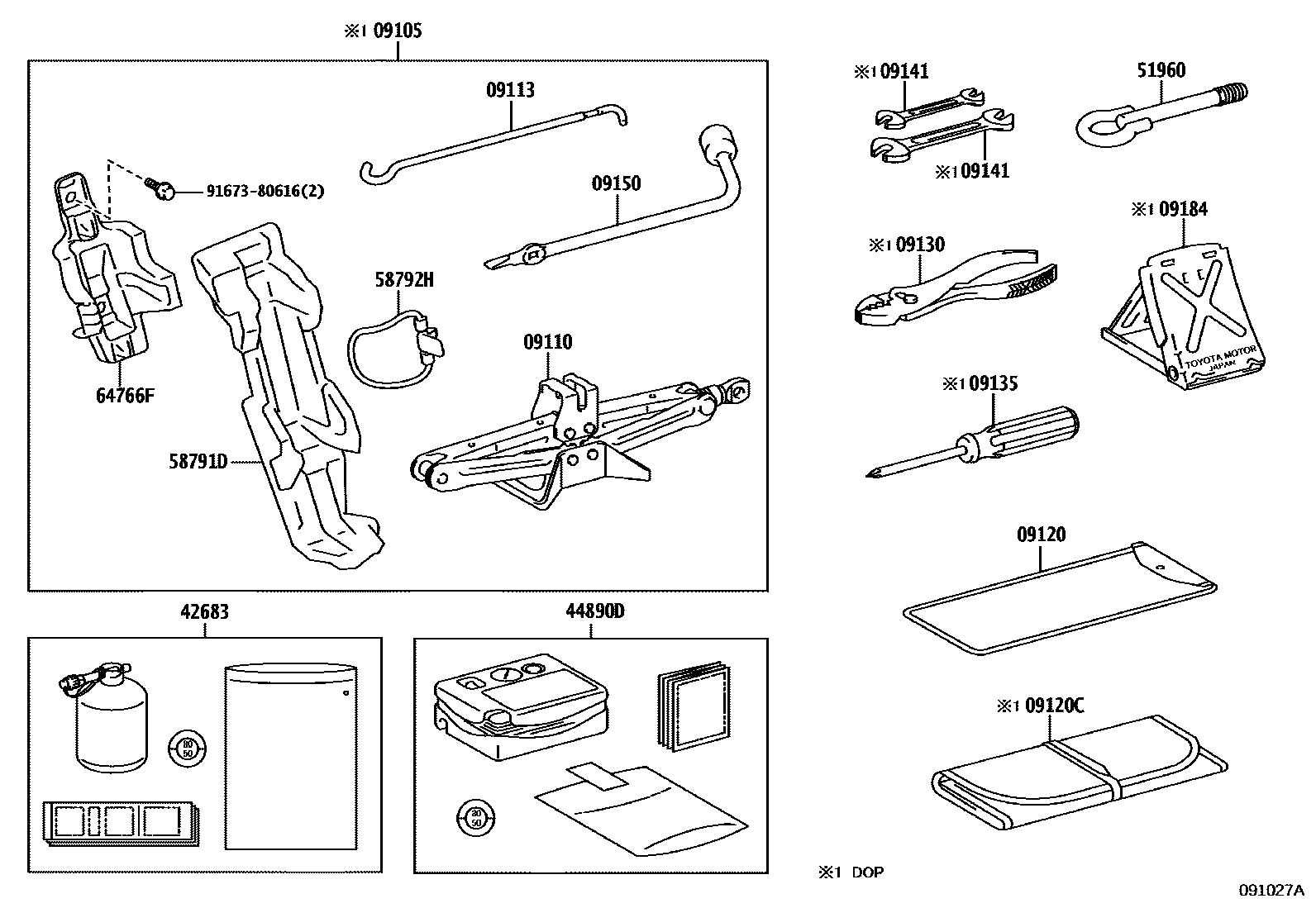

17 parts on this diagram · 2 diagrams in section
