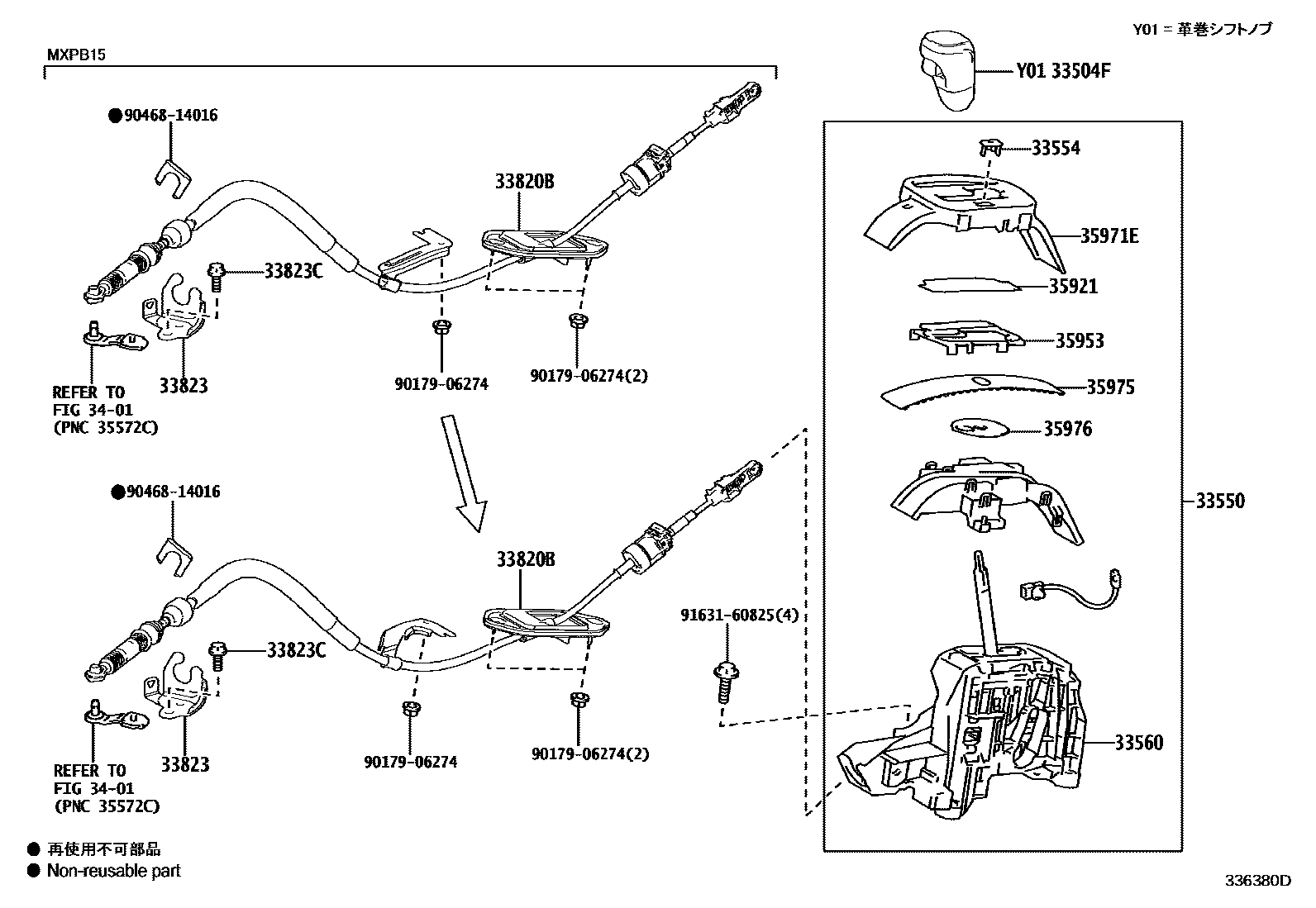

Toyota YARIS CROSS — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM4#,6#
BLACK,TRIM2#,4#
BLACK,TRIM2#
33550FLOOR SHIFT ASSY, TRANSMISSION
33554CAP, SHIFT LEVER
33560UNIT ASSY, SHIFT LOCK CONTROL
33820BCABLE ASSY, TRANSMISSION CONTROL
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
3401
35921PLATE, CONTROL POSITION INDICATOR
35953GUIDE, POSITION INDICATOR LIGHT
35971EHOUSING, POSITION INDICATOR
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
9017906274
9046814016
9163160825
16 parts on this diagram · 2 diagrams in section
