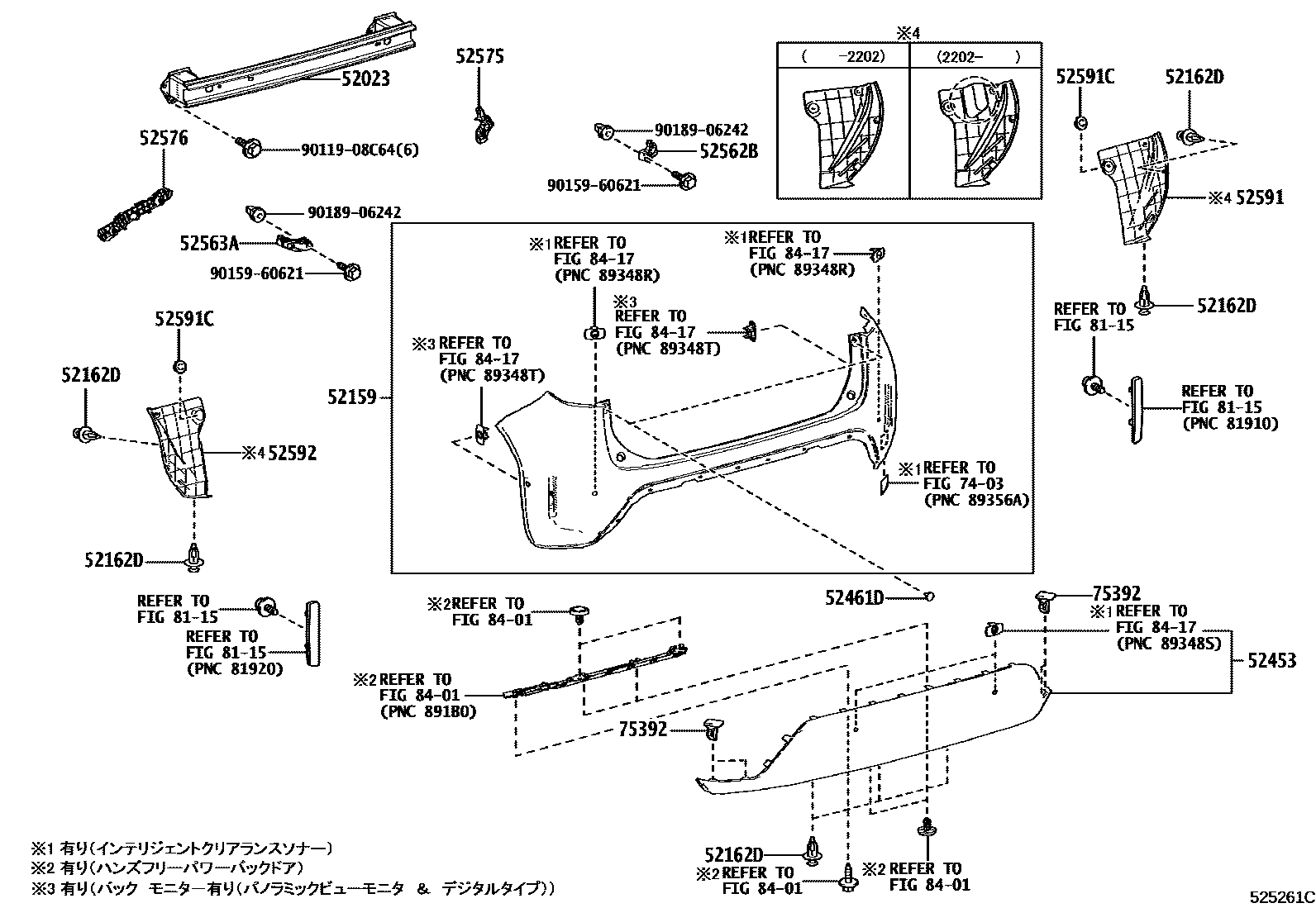

Toyota YARIS CROSS — REAR BUMPER & BUMPER STAY

0001 1 0002 1������������� 0003 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0W010iMXPJ15¥9,200202008-202401

main52023-0W010iMXPJ15¥9,200202401

52159COVER, REAR BUMPER

main52159-52999-A1iMXPB1#,MXPJ1#202008-202010

WHITE PEARL CS.,070 ,2KR

sub52159-5C905¥34,600

main52159-52999-B2iMXPB10,MXPJ10..GRS202208-202401

SILVER ME.,1L0

sub52159-5C905¥34,600

main52159-52999-B2iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X,Z202008-202401

SILVER ME.,1L0 ,2TX

sub52159-5C905¥34,600

main52159-52999-B2iMXPB1#,MXPJ1#202401

SILVER ME.,1L0

sub52159-5C905¥34,600

main52159-52999-C0iMXPB1#,MXPJ1#202008-202010

BLACK MC.,209 ,2UB

sub52159-5C905¥34,600

main52159-52999-D4iMXPB1#,MXPJ1#202008-202010

RED MC.,2PN ,3T3

sub52159-5C905¥34,600

main52159-52999-E5iMXPB1#,MXPJ1#..HBDX,X202401

BEIGE,2SG ,4V6

sub52159-5C905¥34,600

main52159-52999-E5iMXPB1#,MXPJ1#..G,HBDG,HBDZ,U,Z202401

BEIGE,4V6

sub52159-5C905¥34,600

main52159-52999-E5iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X,Z202008-202401

BEIGE,2SG ,4V6

sub52159-5C905¥34,600

main52159-52999-F2iMXPB1#,MXPJ1#202008-202208

BRASS GOLD ME.,2TY ,5C2

sub52159-5C905¥34,600

main52159-52999-J3iMXPB1#,MXPJ1#202008-202010

GRAYISH BLUE,2UR ,8W2

sub52159-5C905¥34,600

main52159-52999-J4iMXPB1#,MXPJ1#202008-202010

DK.BLUE M.M.,8W7

sub52159-5C905¥34,600

main52159-5C905-A0iMXPB1#,MXPJ1#..HBDX,X202010-202208

WHITE PEARL CS.,070 ,2KR

main52159-5C905-A0iMXPB1#,MXPJ1#..G,HBDG,HBDZ,Z202010-202208

WHITE PEARL CS.,070

main52159-5C905-A1iMXPB1#,MXPJ1#..HBDX,X202208-202401

PLATINUM WHITE PEARL MC.,089

main52159-5C905-A1iMXPB1#,MXPJ1#..HBDX,X202208-202401

PLATINUM WHITE PEARL MC.,089 ,2PU

main52159-5C905-A1iMXPB1#,MXPJ1#..HBDX,X202401

PLATINUM WHITE PEARL MC.,089

main52159-5C905-A1iMXPB1#,MXPJ1#..HBDX,X202401

PLATINUM WHITE PEARL MC.,089 ,2PU

main52159-5C905-B2iMXPB1#,MXPJ1#..G,HBDG,HBDZ,U,Z202401

MASSIVE GRAY,1L6 ,M23

main52159-5C905-B2iMXPB1#,MXPJ1#..G,HBDG,HBDZ,U,Z202401

MASSIVE GRAY,1L6

main52159-5C905-C0iMXPB1#,MXPJ1#..GRS,HBDX,X202010-202401

BLACK MC.,209

main52159-5C905-C0iMXPB1#,MXPJ1#..G,HBDG,HBDZ,Z202010-202401

BLACK MC.,209 ,2UB

main52159-5C905-C0iMXPB1#,MXPJ1#202401

BLACK MC.,209

main52159-5C905-D0iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202010-202401

RED MC.,3T3

main52159-5C905-D0iMXPB1#,MXPJ1#..HBDX,X202010-202401

RED MC.,2PN ,3T3

main52159-5C905-D0iMXPB1#,MXPJ1#..HBDX,X202401

RED MC.,3T3

main52159-5C905-D0iMXPB1#,MXPJ1#..HBDX,X202401

RED MC.,2PN ,3T3

main52159-5C905-F0iMXPB1#,MXPJ1#..G,HBDG,HBDZ,Z202208-202401

BRASS GOLD ME.,5C2

main52159-5C905-F0iMXPB1#,MXPJ1#..G,HBDG,HBDZ,Z202208-202401

BRASS GOLD ME.,2TY ,5C2

main52159-5C905-J0iMXPB1#,MXPJ1#..G,HBDG,HBDZ,Z202010-202401

GRAYISH BLUE,8W2

main52159-5C905-J0iMXPB1#,MXPJ1#..HBDX,X202010-202401

GRAYISH BLUE,2UR ,8W2

main52159-5C905-J0iMXPB1#,MXPJ1#..HBDX,X202401

GRAYISH BLUE,2UR ,8W2

main52159-5C905-J0iMXPB1#,MXPJ1#..G,HBDG,HBDZ,U,Z202401

GRAYISH BLUE,8W2

main52159-5C905-J1iMXPB1#,MXPJ1#202010-202401

DK.BLUE M.M.,8W7

52162DPIECE, REAR BUMPER

main52161-16010iMXPB1#,MXPJ1#¥120202401

main52161-16010iMXPB1#,MXPJ1#¥120202008-202401

52453GUARD, REAR BUMPER, CENTER

main52453-52902iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X,Z¥17,500202008-202401

main52453-52902iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,U,X,Z¥17,500202401

52461DCUSHION, REAR BUMPER

main52461-52020iMXPB1#,MXPJ1#¥590202008-202401

main52461-52020iMXPB1#,MXPJ1#¥590202401

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-52100iMXPB1#,MXPJ1#¥1,480202008-202401

main52562-52100iMXPB1#,MXPJ1#¥1,480202401

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-52060iMXPB1#,MXPJ1#¥1,480202008-202401

main52563-52060iMXPB1#,MXPJ1#¥1,480202401

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52230iMXPB1#,MXPJ1#¥2,450202008-202401

main52575-52230iMXPB1#,MXPJ1#¥2,450202401

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52210iMXPB1#,MXPJ1#¥2,450202008-202401

main52576-52210iMXPB1#,MXPJ1#¥2,450202401

52591SEAL, REAR BUMPER SIDE, RH

main52591-52420iMXPB1#,MXPJ1#¥3,200202008-202202

main52591-52422iMXPB1#,MXPJ1#¥2,910202202-202401

main52591-52422iMXPB1#,MXPJ1#¥2,910202401

52591CCLIP, REAR BUMPER SIDE SEAL

main90467-06121iMXPB1#,MXPJ1#¥220202008-202012

main90467-06206-C0iMXPB1#,MXPJ1#202101-202401

BLACK

main90467-06206-C0iMXPB1#,MXPJ1#202401

BLACK

52592SEAL, REAR BUMPER SIDE, LH

main52592-52410iMXPB1#,MXPJ1#¥3,200202008-202202

main52592-52412iMXPB1#,MXPJ1#¥2,910202202-202401

main52592-52412iMXPB1#,MXPJ1#¥2,910202401

7403

75392RETAINER, OUTSIDE MOULDING

main75392-35220iMXPB1#,MXPJ1#¥130202008-202401

main75392-35220iMXPB1#,MXPJ1#¥130202401

8115

8401

8417

9011908C64

main90119-08C64¥90

9015960621

main90159-60621¥60

9018906242

main90189-06242¥70

20 parts on this diagram · 3 diagrams in section
