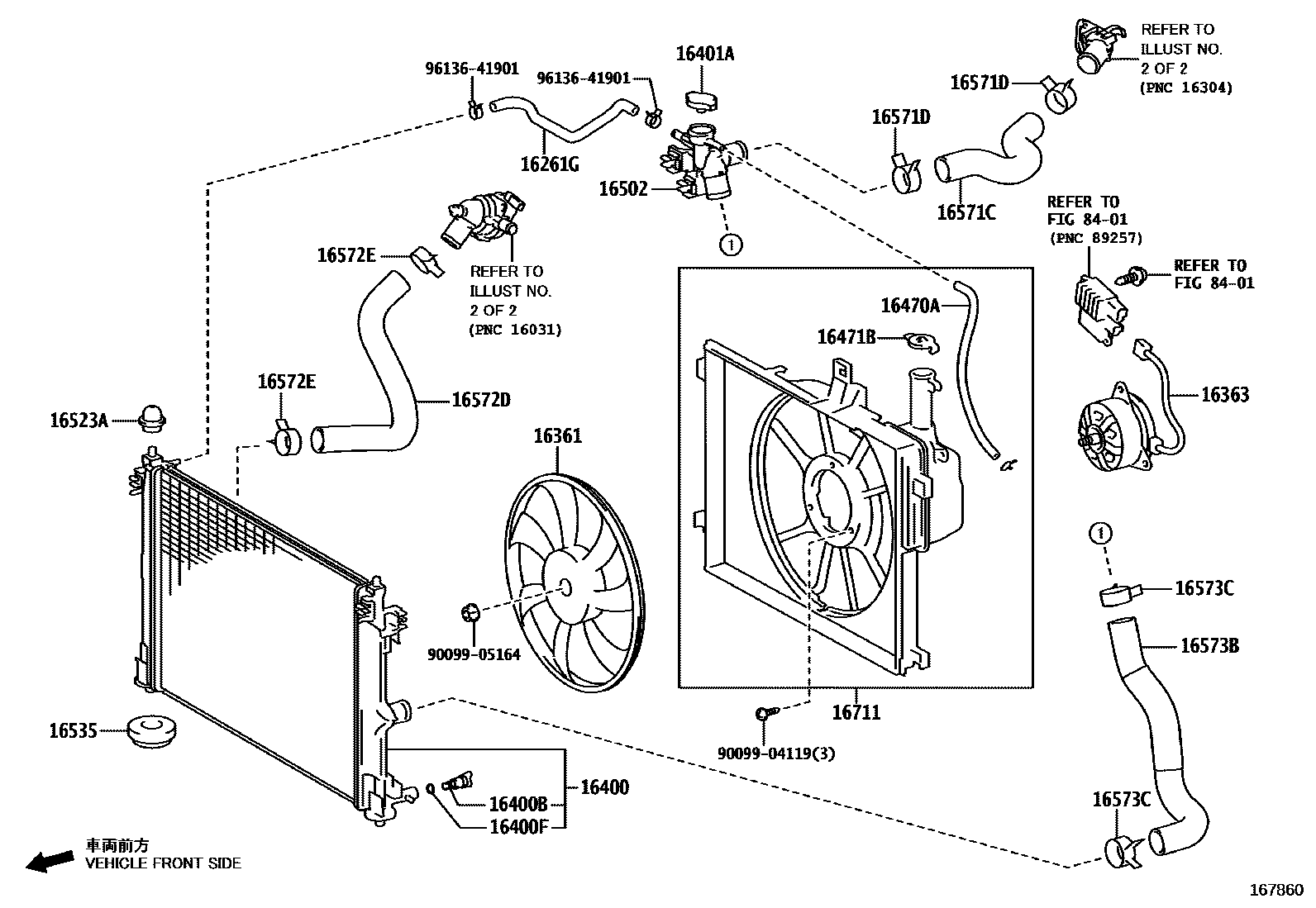

Toyota YARIS CROSS — RADIATOR & WATER OUTLET

0001 1��������� 0002 1�������� 0003 1��������� 0004 1��������

16261GHOSE, WATER BY-PASS, NO.1

main16261-15030iM15AFXE..MXPJ1#¥1,010202008-202401

main16261-15030iM15AFXE..MXPJ1#¥1,010202401

main16261-15040iM15AFKS..MXPB1#¥790202008-202401

main16261-15040iM15AFKS..MXPB1#¥790202401

16361FAN

main16361-15100iM15AFXE..MXPJ1#¥5,600202008-202401

main16361-15100iM15AFXE..MXPJ1#¥5,600202401

main16361-21120iM15AFKS..MXPB1#¥4,330202008-202401

main16361-21120iM15AFKS..MXPB1#¥4,330202401

16363MOTOR, COOLING FAN

main16363-K0020iM15#..MXPB1#,MXPJ1#¥15,900202008-202401

main16363-K0020iM15#..MXPB1#,MXPJ1#¥15,900202401

16400RADIATOR ASSY

main16400-15620iM15AFKS..MXPB1#¥27,600202008-202401

main16400-15620iM15AFKS..MXPB1#¥27,600202401

main16400-15630iM15AFXE..MXPJ1#¥32,500202401

main16400-15630iM15AFXE..MXPJ1#¥32,500202008-202401

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280iM15AFKS..MXPB1#¥360202008-202401

main16417-21280iM15AFKS..MXPB1#¥360202401

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050iM15AFKS..MXPB1#¥210202401

main16492-21050iM15AFKS..MXPB1#¥210202008-202401

16401ACAP SUB-ASSY, RADIATOR RESERVE TANK

main16401-36020iM15#..MXPB1#,MXPJ1#¥910202008-202401

main16401-36020iM15#..MXPB1#,MXPJ1#¥910202401

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-K0010iM15AFKS..MXPB1#202008-202401

main16377-K0010iM15AFKS..MXPB1#202401

main16377-K0020iM15AFXE..MXPJ1#202008-202401

main16377-K0020iM15AFXE..MXPJ1#202401

16471BCAP, RESERVE TANK

main16471-15020iM15AFXE..MXPJ1#202008-202301

sub16471-15030

main16471-15030iM15AFXE..MXPJ1#202302-202401

main16471-15030iM15AFXE..MXPJ1#202401

main16471-23010iM15AFKS..MXPB1#202008-202401

main16471-23010iM15AFKS..MXPB1#202401

16502FILLER SUB-ASSY, WATER

main16502-15020iM15AFKS..MXPB1#¥1,670202008-202401

main16502-15020iM15AFKS..MXPB1#¥1,670202401

main16502-15030iM15AFXE..MXPJ1#¥1,670202401

main16502-15030iM15AFXE..MXPJ1#¥1,670202008-202401

16523ACUSHION, RADIATOR SUPPORT

main16523-37010iM15#..MXPB1#,MXPJ1#¥400202401

main16523-37010iM15#..MXPB1#,MXPJ1#¥400202008-202401

16535SUPPORT, RADIATOR, LOWER

main90480-40021iM15#..MXPB1#,MXPJ1#¥220202008-202401

main90480-40021iM15#..MXPB1#,MXPJ1#¥220202401

16571CHOSE, RADIATOR, NO.1

main16571-15190iM15AFKS..MXPB1#¥1,010202401

main16571-15190iM15AFKS..MXPB1#¥1,010202008-202401

main16571-15200iM15AFXE..MXPJ1#¥1,080202401

main16571-15200iM15AFXE..MXPJ1#¥1,080202008-202401

16571DCLIP, RADIATOR HOSE, NO.1

main90466-40001iM15#..MXPB1#,MXPJ1#¥240202008-202401

main90466-40001iM15#..MXPB1#,MXPJ1#¥240202401

16572DHOSE, RADIATOR, NO.2

main16572-15220iM15AFKS..MXPB1#¥1,150202008-202401

main16572-15220iM15AFKS..MXPB1#¥1,150202401

main16572-15230iM15AFXE..MXPJ1#¥1,010202008-202401

main16572-15230iM15AFXE..MXPJ1#¥1,010202401

16572ECLIP, RADIATOR HOSE, NO.2

main90466-40001iM15#..MXPB1#,MXPJ1#¥240202401

main90466-40001iM15#..MXPB1#,MXPJ1#¥240202008-202401

16573BHOSE, RADIATOR, NO.3

main16573-15010iM15AFKS..MXPB1#¥1,150202008-202401

main16573-15010iM15AFKS..MXPB1#¥1,150202401

main16573-15020iM15AFXE..MXPJ1#¥1,150202008-202401

main16573-15020iM15AFXE..MXPJ1#¥1,150202401

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-43002iM15#..MXPB1#,MXPJ1#¥240202008-202401

main90466-43002iM15#..MXPB1#,MXPJ1#¥240202401

16711SHROUD, FAN

main16711-15290iM15AFKS..MXPB1#¥5,100202008-202401

main16711-15290iM15AFKS..MXPB1#¥5,100202401

main16711-15300iM15AFXE..MXPJ1#¥5,900202008-202401

main16711-15300iM15AFXE..MXPJ1#¥5,900202401

8401

9009904119

main90099-04119

9009905164

main90099-05164¥0

9613641901

main96136-41901¥120

23 parts on this diagram · 4 diagrams in section
