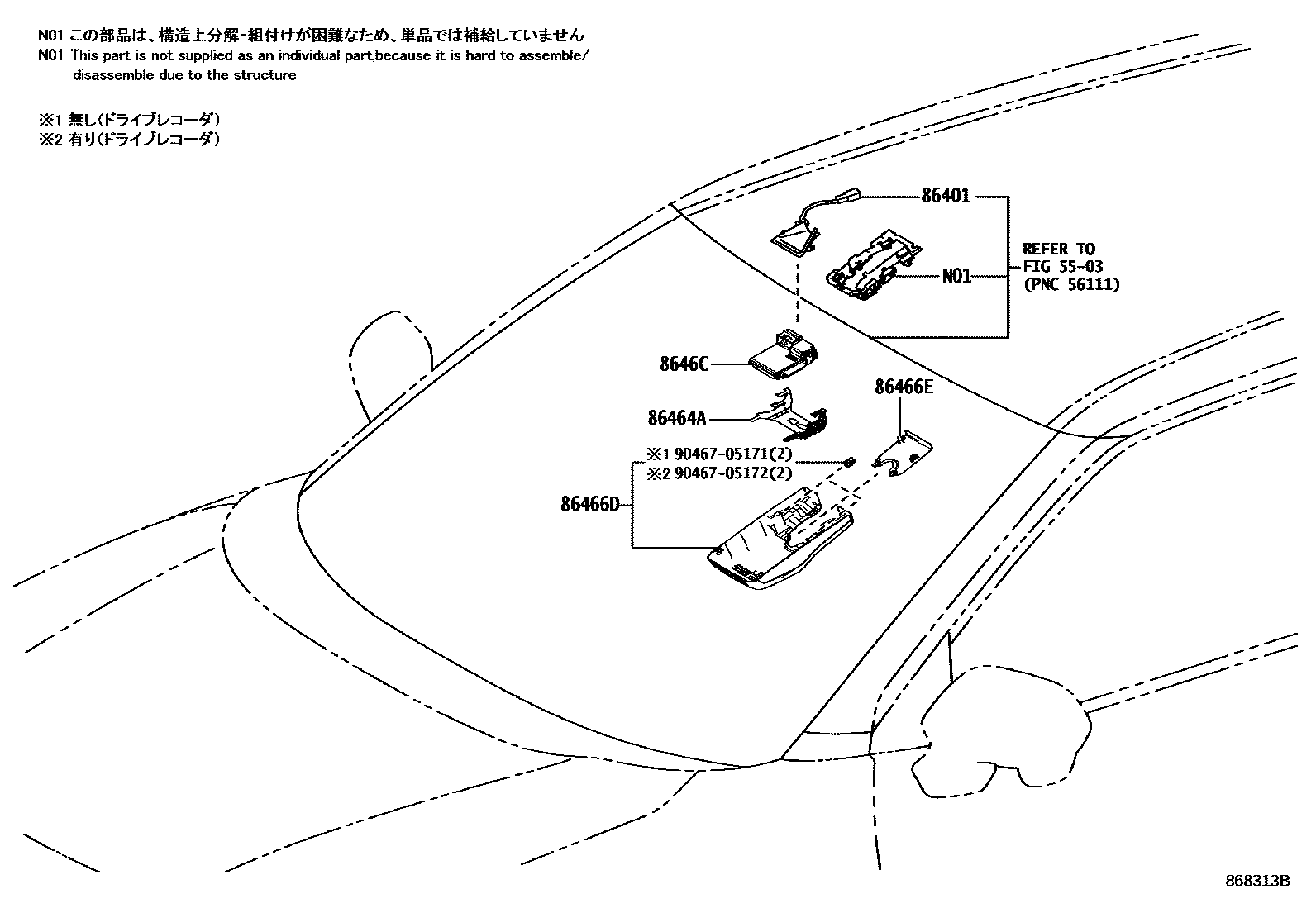

Toyota YARIS CROSS — PRE-COLLISION SYSTEM

0001 1 0002 1

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-K0010iMXPB1#,MXPJ1#¥6,400202008-202401

86464ALATCH, FORWARD RECOGNITION

main86464-K0010iMXPB1#,MXPJ1#¥550202008-202401

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-52200iMXPB1#,MXPJ1#¥2,870202401

main86466-K0010iMXPB1#,MXPJ1#¥2,560202008-202401

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-K0020iMXPB1#,MXPJ1#¥630202008-202401

main86467-52080iMXPB1#,MXPJ1#¥750202401

8646CCAMERA, FORWARD RECOGNITION

main8646C-0D010iMXPB1#,MXPJ1#¥47,300202008-202102

main8646C-52050iMXPB1#,MXPJ1#¥47,300202103-202401

main8646C-52290iMXPB1#,MXPJ1#¥43,000202401

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

8 parts on this diagram · 2 diagrams in section
