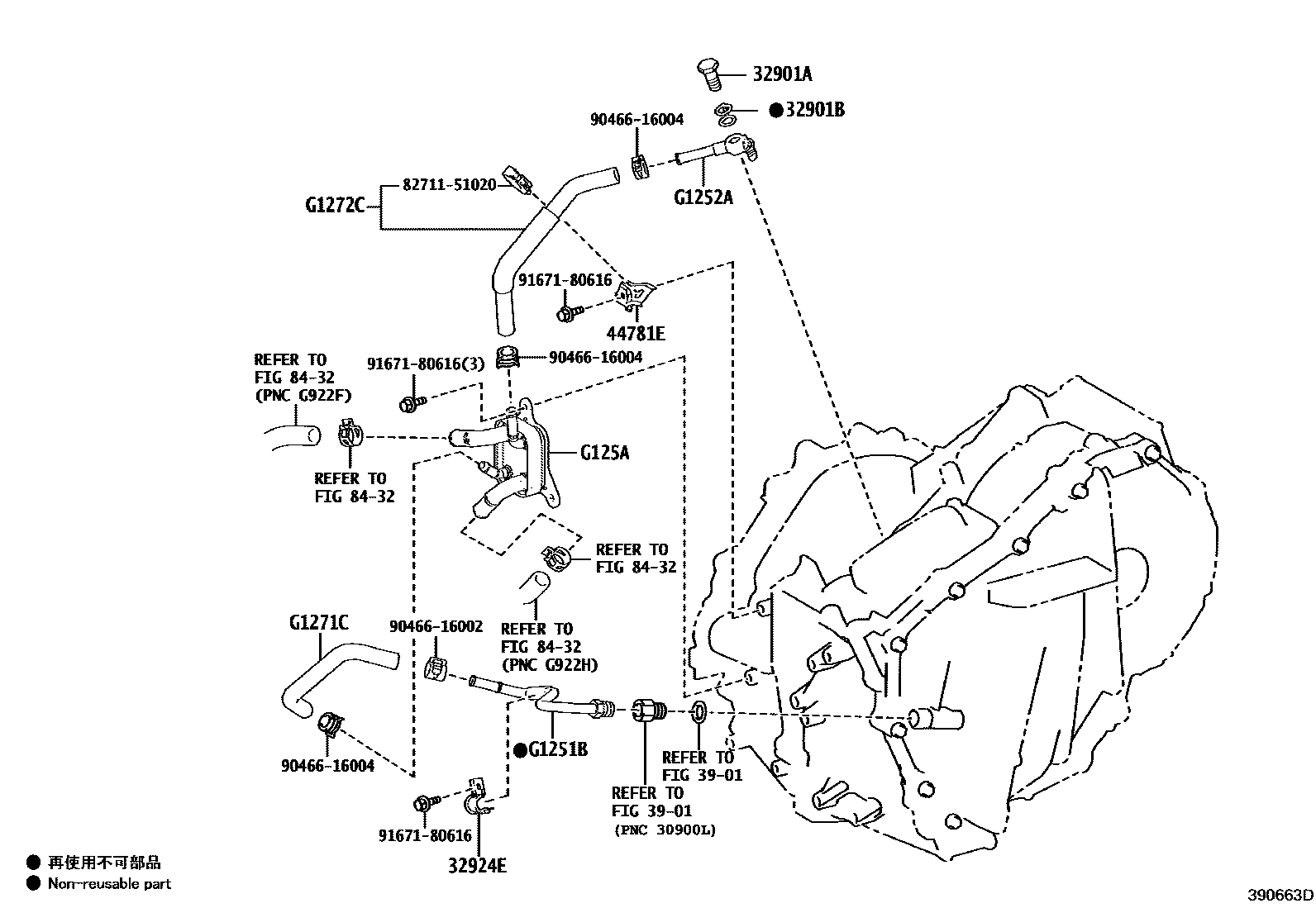

Toyota YARIS CROSS — OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iMXPJ1#¥390202008-202401

main90401-12039iMXPJ1#¥390202401

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iMXPJ1#¥80202008-202401

main90430-12037iMXPJ1#¥80202401

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010iMXPJ1#¥200202008-202401

main32924-48010iMXPJ1#¥200202401

3901

44781EBRACKET, HOSE

main44781-K0010iMXPJ1#¥210202008-202401

main44781-K0010iMXPJ1#¥210202401

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG1251K0010iMXPJ1#202008-202401

mainG1251K0010iMXPJ1#202401

G1252APIPE, MOTOR COOLING, NO.2

mainG1252K0010iMXPJ1#202008-202401

mainG1252K0010iMXPJ1#202401

G125ACOOLER, MOTOR COOLING

mainG125AK0010iMXPJ1#202008-202401

mainG125AK0010iMXPJ1#202401

G1271CHOSE, MOTOR COOLING, NO.1

mainG1271K0010iMXPJ1#202008-202401

mainG1271K0010iMXPJ1#202401

G1272CHOSE, MOTOR COOLING, NO.2

mainG1272K0010iMXPJ1#202008-202401

mainG1272K0010iMXPJ1#202401

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020¥160

9046616002

main90466-16002¥220

9046616004

main90466-16004¥180

9167180616

main91671-80616¥60

15 parts on this diagram · 1 diagram in section
