Toyota YARIS CROSS — METER

0001 1������������ 0002 1����������������

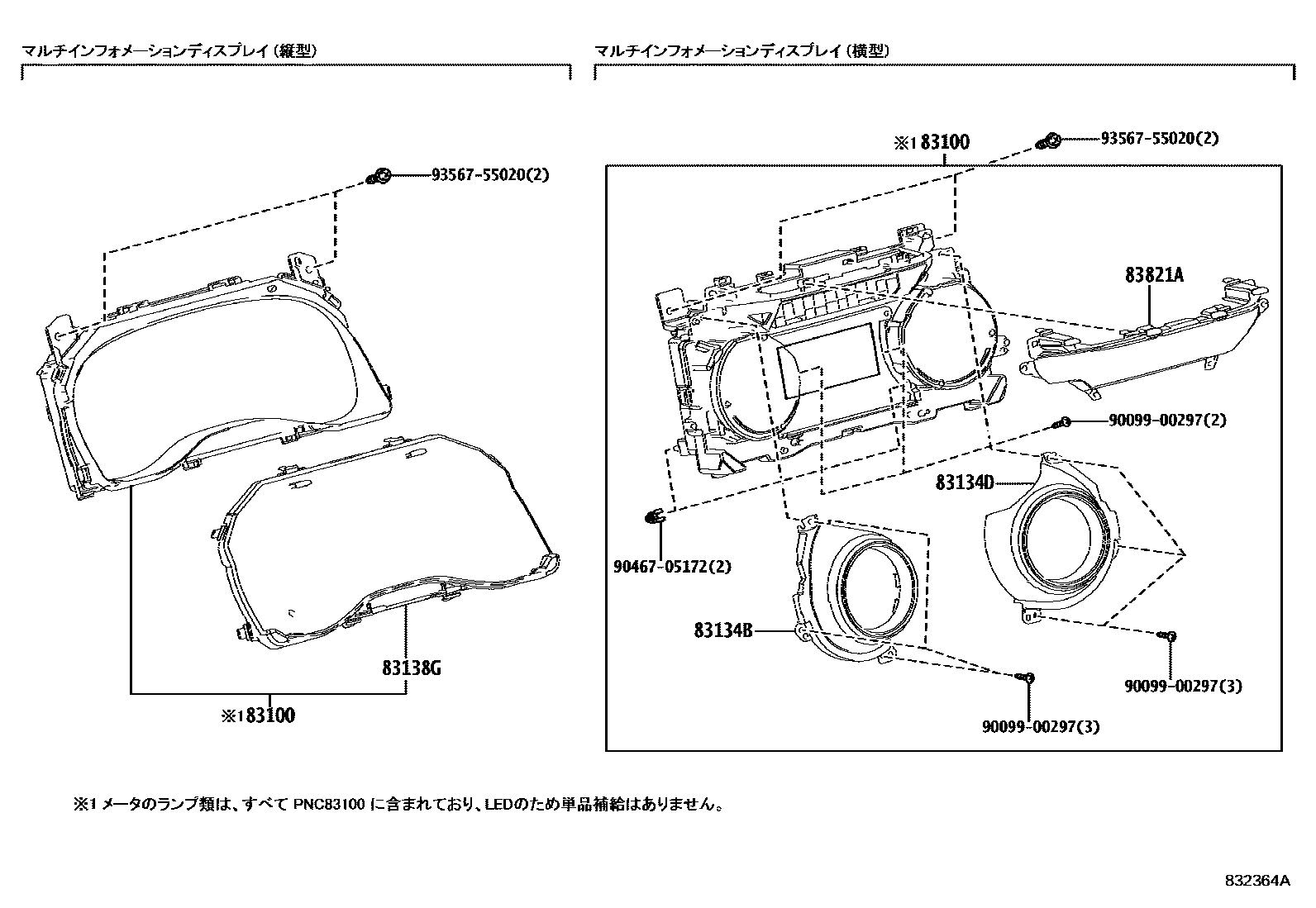

83100METER ASSY, COMBINATION

main83800-5CZ30iMXPB10..G,GRS,X¥61,400202008-202401

main83800-5CZ40iMXPB15..G,X¥61,400202008-202401

main83800-5D110iMXPJ1#..GRS,HBDG,HBDX¥61,400202008-202401

main83800-5D130iMXPB10..Z¥61,400202008-202401

main83800-5D140iMXPB15..Z¥61,400202008-202401

main83800-5D150iMXPJ1#..HBDZ¥61,400202008-202401

main83800-5D761iMXPB10¥46,000202401-202406

main83800-5D762iMXPB10¥41,800202407

main83800-5D771iMXPB15¥46,000202401-202406

main83800-5D772iMXPB15¥41,800202407

main83800-5D780iMXPJ1#¥46,000202401-202406

sub83800-5D781¥41,800

main83800-5D781iMXPJ1#¥41,800202407

83134BCOVER, COMBINATION METER, NO.2

main83822-K0030iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDX,X202008-202401

83134DCOVER, COMBINATION METER, NO.3

main83823-K0030iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDX,X202008-202401

83138GGLASS, COMBINATION METER

main83852-5D130iMXPB1#,MXPJ1#..HBDZ,Z202008-202401

main83852-5D840iMXPB1#,MXPJ1#¥2,220202401

83821ACOVER, COMBINATION METER, NO.1

main83821-K0030iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDX,X202008-202401

9009900297

main90099-00297

9046705172

main90467-05172¥60

9356755020

main93567-55020¥70

8 parts on this diagram · 2 diagrams in section
