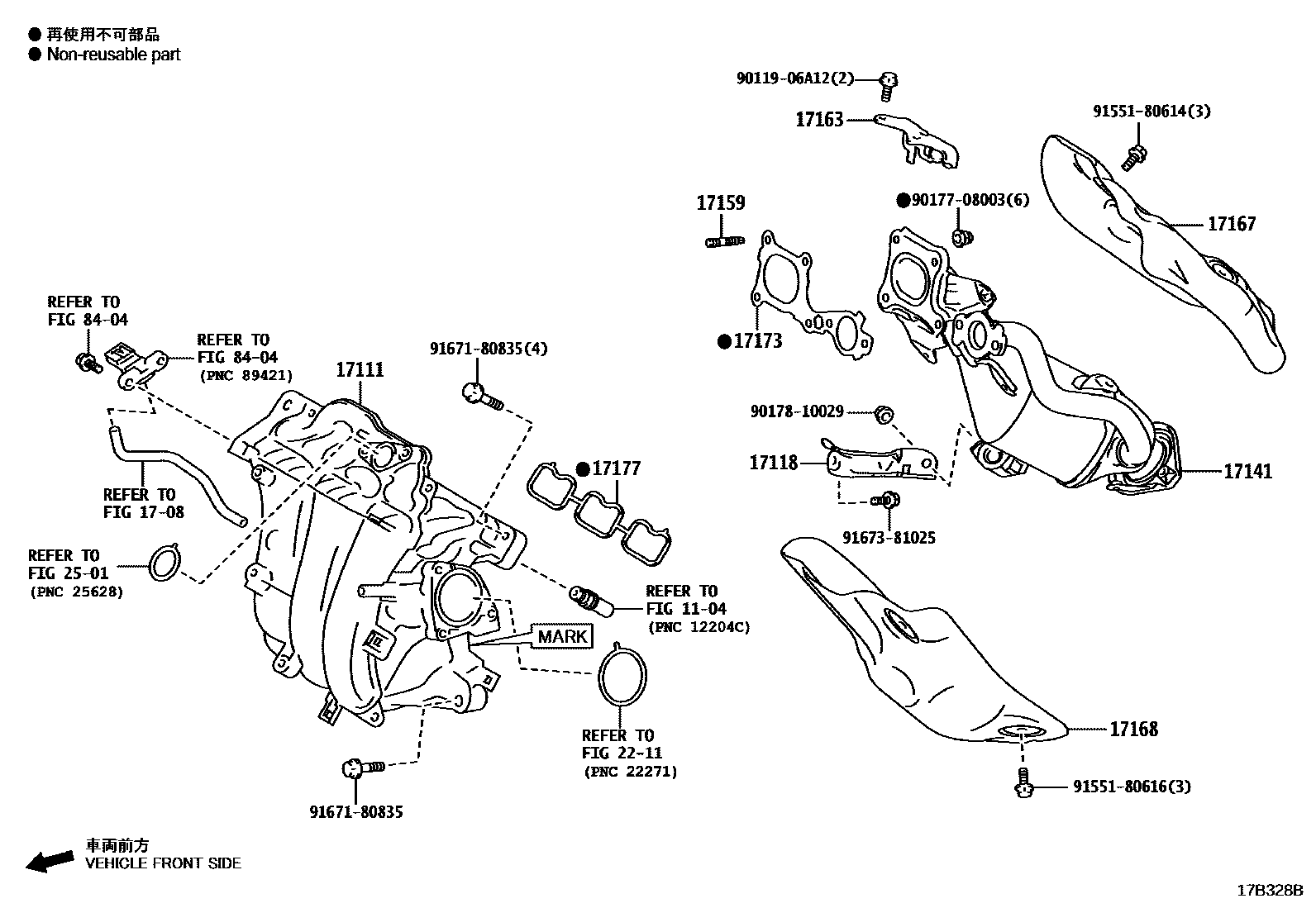

Toyota YARIS CROSS — MANIFOLD
1104
1708
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17163BRACKET, HEAT INSULATOR, NO.1
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
2501
8404
9011906A12
9017708003
9017810029
9155180614
9155180616
9167180835
9167381025
21 parts on this diagram · 2 diagrams in section
