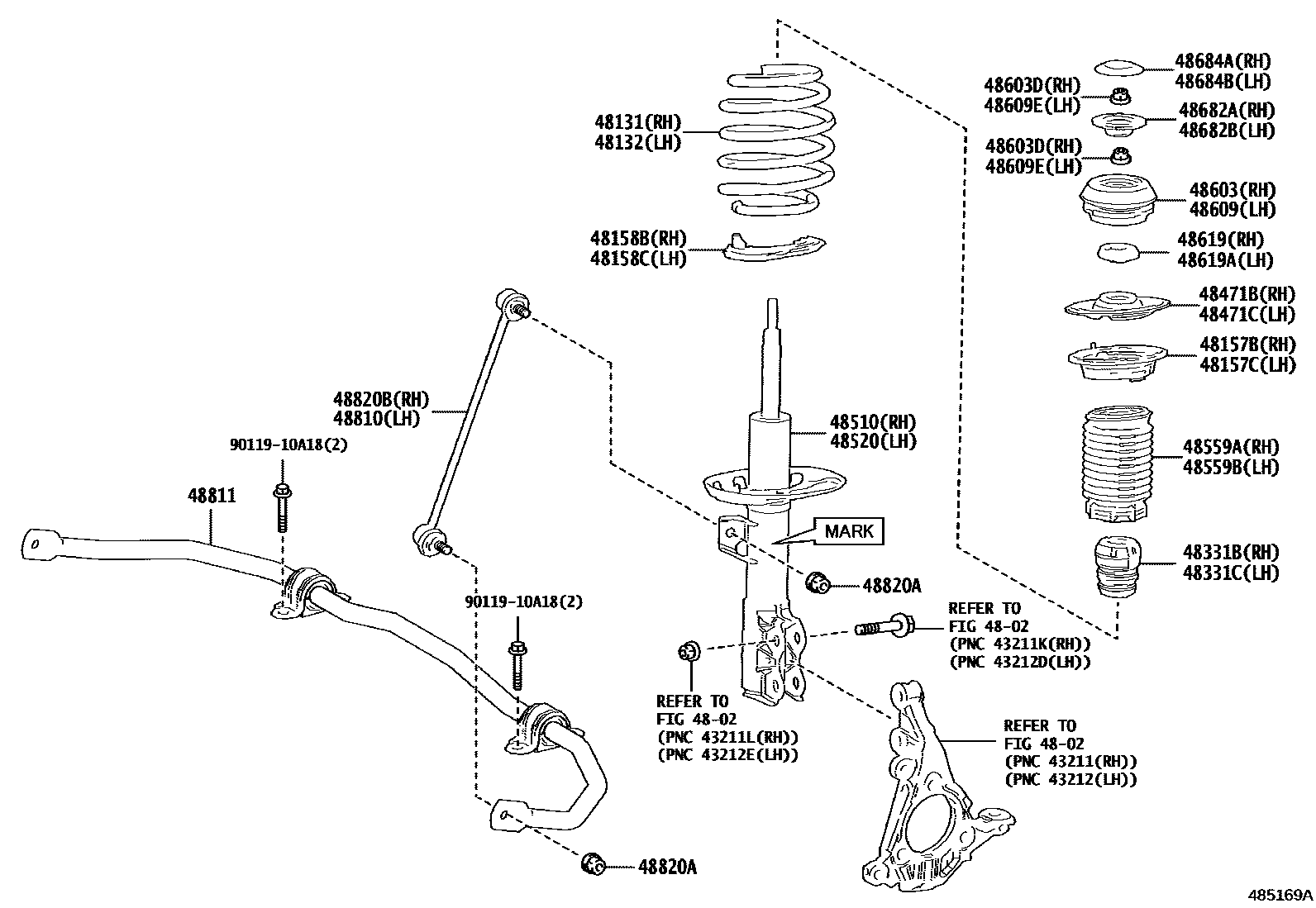

Toyota YARIS CROSS — FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-52Q40iMXPB10..G,X,Z¥4,160202008-202401

main48131-52Q50iMXPB15,MXPJ1#..G,HBDG,HBDX,HBDZ,U,X,Z¥4,720202008-202401

main48131-52S30iMXPB10..GRS¥4,160202208-202401

main48131-52S40iMXPJ10..GRS¥4,160202208-202401

48132SPRING, FRONT COIL, LH

main48131-52Q40iMXPB10..G,X,Z¥4,160202008-202401

main48131-52Q50iMXPB15,MXPJ1#..G,HBDG,HBDX,HBDZ,X,Z¥4,720202008-202401

main48131-52S30iMXPB10..GRS¥4,160202208-202401

main48131-52S40iMXPJ10..GRS¥4,160202208-202401

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-K0010iMXPB1#,MXPJ1#¥620202008-202401

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-K0010iMXPB1#,MXPJ1#¥620202008-202401

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-K0011iMXPB1#,MXPJ1#¥580202008-202401

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-K0011iMXPB1#,MXPJ1#¥580202008-202401

48331BBUMPER, FRONT SPRING, RH

main48331-K0010iMXPB10,MXPJ10..GRS¥300202208-202401

main48331-K0020iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,U,X,Z¥540202008-202401

48331CBUMPER, FRONT SPRING, LH

main48331-K0010iMXPB10,MXPJ10..GRS¥300202208-202401

main48331-K0020iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X,Z¥540202008-202401

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-K0010iMXPB1#,MXPJ1#¥880202008-202401

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-K0010iMXPB1#,MXPJ1#¥880202008-202401

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-52U00iMXPB1#..G,X,Z¥17,600202008-202401

main48510-52U10iMXPJ1#..HBDG,HBDX,HBDZ¥17,600202008-202401

main48510-52V60iMXPB10..GRS¥16,000202208-202401

main48510-52V70iMXPJ10..GRS¥16,000202208-202401

main48510-52W80iMXPB1#..G,X,Z¥16,000202401

main48510-52W90iMXPJ1#..HBDG,HBDX,HBDZ,U¥16,000202401

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-52J00iMXPB1#..G,X,Z¥17,600202008-202401

main48520-52J10iMXPJ1#..HBDG,HBDX,HBDZ¥17,600202008-202401

main48520-52K60iMXPB10..GRS¥16,000202208-202401

main48520-52K70iMXPJ10..GRS¥16,000202208-202401

main48520-52L80iMXPB1#..G,X,Z¥16,000202401

main48520-52L90iMXPJ1#..HBDG,HBDX,HBDZ,U¥16,000202401

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-K0010iMXPB1#,MXPJ1#¥910202008-202401

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-K0010iMXPB1#,MXPJ1#¥910202008-202401

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-K0011iMXPB1#,MXPJ1#¥1,690202008-202401

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145iMXPB1#,MXPJ1#¥100202008-202401

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-K0011iMXPB1#,MXPJ1#¥1,690202008-202401

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145iMXPB1#,MXPJ1#¥100202008-202401

48619BEARING, STRUT MOUNTING, RH

main48619-K0010iMXPB1#,MXPJ1#¥840202008-202401

48619ABEARING, STRUT MOUNTING, LH

main48619-K0010iMXPB1#,MXPJ1#¥840202008-202401

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-K0010iMXPB1#,MXPJ1#¥410202008-202401

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-K0010iMXPB1#,MXPJ1#¥410202008-202401

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52020iMXPB1#,MXPJ1#¥500202008-202401

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52020iMXPB1#,MXPJ1#¥500202008-202401

48810LINK ASSY, FRONT STABILIZER, LH

main48820-K0020iMXPB1#,MXPJ1#¥4,350202008-202401

48811BAR, STABILIZER, FRONT

main48804-52010iMXPB1#,MXPJ1#¥7,700202008-202401

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iMXPB1#,MXPJ1#¥100202008-202401

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-K0020iMXPB1#,MXPJ1#¥4,350202008-202401

9011910A18

main90119-10A18¥160

30 parts on this diagram · 1 diagram in section
