Toyota YARIS CROSS — CLEARANCE & BACK SONAR

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010iMXPB1#,MXPJ1#¥90202008-202401

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-52090iMXPB1#,MXPJ1#..HBDX,X¥16,200202008-202105

main89340-52090iMXPB1#,MXPJ1#¥16,200202008-202105

main89340-52230iMXPB1#,MXPJ1#¥16,200202105-202401

main89340-52390iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,U,Z¥14,700202401

main89340-52440iMXPB1#,MXPJ1#..HBDX,X¥14,700202401-202502

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-K0060-A1iMXPB1#,MXPJ1#202008-202208

WHITE PEARL CS.,070 ,2KR

sub89341-50080¥6,000

main89341-K0060-A4iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202208-202401

PLATINUM WHITE PEARL MC.,089 ,2PU

sub89341-50080¥6,000

main89341-K0060-A4iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202208-202401

PLATINUM WHITE PEARL MC.,089

sub89341-50080¥6,000

main89341-K0060-B5iMXPB1#,MXPJ1#202008-202401

SILVER ME.,1L0 ,2TX

sub89341-50080¥6,000

main89341-K0060-B5iMXPB1#,MXPJ1#202401

SILVER ME.,1L0

sub89341-50080¥6,000

main89341-K0060-C2iMXPB10,MXPJ10..GRS202208-202401

BLACK MC.,209

sub89341-50080¥6,000

main89341-K0060-C2iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X,Z202008-202401

BLACK MC.,209 ,2UB

sub89341-50080¥6,000

main89341-K0060-D1iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,U,Z202008-202401

RED MC.,2PN ,3T3

sub89341-50080¥6,000

main89341-K0060-D1iMXPB1#,MXPJ1#..HBDX,X202401

RED MC.,3T3

sub89341-50080¥6,000

main89341-K0060-E1iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X202008-202401

BEIGE,2KP ,2SG ,2TV ,4V6

sub89341-50080¥6,000

main89341-K0060-E1iMXPB1#..Z202008-202401

BEIGE,2SG ,4V6

sub89341-50080¥6,000

main89341-K0060-E1iMXPB1#,MXPJ1#..G,HBDG,HBDZ,U,Z202401

BEIGE,4V6

sub89341-50080¥6,000

main89341-K0060-F0iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X,Z202008-202401

BRASS GOLD ME.,2TY ,5C2

sub89341-50080¥6,000

main89341-K0060-J0iMXPB1#,MXPJ1#202008-202401

DK.BLUE M.M.,8W7

sub89341-50080¥6,000

main89341-K0060-J2iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X202008-202401

GRAYISH BLUE,2TU ,2UR ,8W2

sub89341-50080¥6,000

main89341-K0060-J2iMXPB1#..Z202008-202401

GRAYISH BLUE,2UR ,8W2

sub89341-50080¥6,000

main89341-K0060-J2iMXPB1#,MXPJ1#..HBDX,X202401

GRAYISH BLUE,8W2

sub89341-50080¥6,000

main89341-K0060-S0iMXPB1#,MXPJ1#..G,HBDG,HBDZ,U,Z202401

MASSIVE GRAY,1L6 ,M23

sub89341-50080¥6,000

main89341-K0060-S0iMXPB1#,MXPJ1#..GRS,HBDX,X202401

MASSIVE GRAY,1L6

sub89341-50080¥6,000

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-50080-C0iMXPB1#,MXPJ1#..G,HBDG,HBDX,X202305-202401

DUMMY-MAT BLACK

main89341-K0060-C0iMXPB1#,MXPJ1#..G,HBDG,HBDX,X202008-202304

DUMMY-MAT BLACK

sub89341-50080¥6,000

main89341-K0060-C2iMXPB1#,MXPJ1#..HBDZ,Z202008-202401

sub89341-50080¥6,000

89341MSENSOR, ULTRASONIC, FRONT SIDE

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-K0060-A1iMXPB1#,MXPJ1#202008-202208

WHITE PEARL CS.,070 ,2KR

sub89341-50080¥6,000

main89341-K0060-A4iMXPB1#,MXPJ1#..HBDX,X202208-202401

PLATINUM WHITE PEARL MC.,089

sub89341-50080¥6,000

main89341-K0060-A4iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202208-202401

PLATINUM WHITE PEARL MC.,089 ,2PU

sub89341-50080¥6,000

main89341-K0060-B5iMXPB1#,MXPJ1#202401

SILVER ME.,1L0

sub89341-50080¥6,000

main89341-K0060-B5iMXPB1#,MXPJ1#202008-202401

SILVER ME.,1L0 ,2TX

sub89341-50080¥6,000

main89341-K0060-C2iMXPB10,MXPJ10..GRS202208-202401

BLACK MC.,209

sub89341-50080¥6,000

main89341-K0060-C2iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X,Z202008-202401

BLACK MC.,209 ,2UB

sub89341-50080¥6,000

main89341-K0060-D1iMXPB1#,MXPJ1#..HBDX,X202401

RED MC.,3T3

sub89341-50080¥6,000

main89341-K0060-D1iMXPB1#,MXPJ1#..HBDX,X202008-202401

RED MC.,2PN ,3T3

sub89341-50080¥6,000

main89341-K0060-E1iMXPB1#,MXPJ1#..HBDX,X202401

BEIGE,4V6

sub89341-50080¥6,000

main89341-K0060-E1iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X202008-202401

BEIGE,2SG ,4V6

sub89341-50080¥6,000

main89341-K0060-E1iMXPB1#..Z202008-202401

BEIGE,2KP ,2SG ,2TV ,4V6

sub89341-50080¥6,000

main89341-K0060-F0iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X,Z202008-202401

BRASS GOLD ME.,2TY ,5C2

sub89341-50080¥6,000

main89341-K0060-J0iMXPB1#,MXPJ1#202008-202401

DK.BLUE M.M.,8W7

sub89341-50080¥6,000

main89341-K0060-J2iMXPB1#,MXPJ1#..G,HBDG,HBDZ,U,Z202008-202401

GRAYISH BLUE,2UR ,8W2

sub89341-50080¥6,000

main89341-K0060-J2iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X202008-202401

GRAYISH BLUE,2TU ,2UR ,8W2

sub89341-50080¥6,000

main89341-K0060-J2iMXPB1#,MXPJ1#..HBDX,X202401

GRAYISH BLUE,8W2

sub89341-50080¥6,000

main89341-K0060-S0iMXPB1#,MXPJ1#..G,HBDG,HBDZ,U,Z202401

MASSIVE GRAY,1L6

sub89341-50080¥6,000

main89341-K0060-S0iMXPB1#,MXPJ1#..GRS,HBDX,X202401

MASSIVE GRAY,1L6 ,M23

sub89341-50080¥6,000

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-50080-C0iMXPJ10..GRS202401

main89341-50080-C0iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X,Z202305-202401

DUMMY-MAT BLACK

main89341-K0060-C0iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X,Z202008-202304

DUMMY-MAT BLACK

sub89341-50080¥6,000

main89341-K0060-C2iMXPB10,MXPJ10..GRS202008

BLACK MC.

sub89341-50080¥6,000

89342BSENSOR, ULTRASONIC, REAR SIDE

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iMXPB1#,MXPJ1#¥1,850202008-202401

89347BRETAINER, ULTRASONIC SENSOR, FRONT CORNER

main89348-K0230iMXPB1#,MXPJ1#¥0202008-202107

sub89348-K0231¥0

main89348-K0231iMXPB1#,MXPJ1#¥0202108-202401

89347DRETAINER, ULTRASONIC SENSOR, FRONT SIDE

89348DCLIP, ULTRASONIC SENSOR

main89348-58130iMXPB1#,MXPJ1#¥0202008-202401

main89348-58130iMXPB1#,MXPJ1#¥0202401

main89348-58130iMXPB1#,MXPJ1#¥0202401

89348RRETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-K0230iMXPB1#,MXPJ1#¥0202008-202107

sub89348-K0231¥0

main89348-K0231iMXPB1#,MXPJ1#¥0202108-202401

89348SRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-K0230iMXPB1#,MXPJ1#¥0202008-202107

sub89348-K0231¥0

main89348-K0231iMXPB1#,MXPJ1#¥0202108-202401

89348TRETAINER, ULTRASONIC SENSOR, REAR SIDE

9017906274

main90179-06274¥70

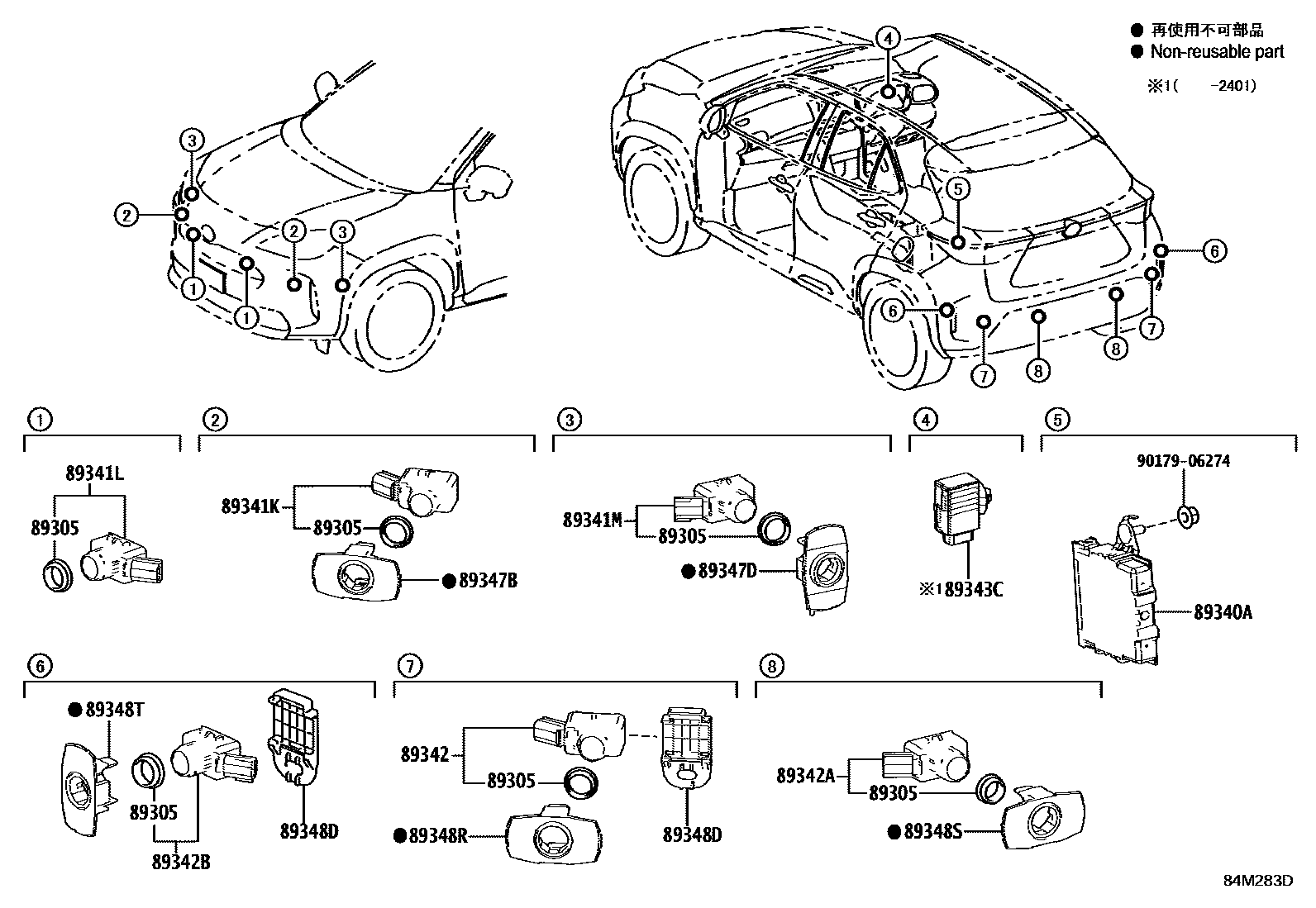

16 parts on this diagram · 1 diagram in section
