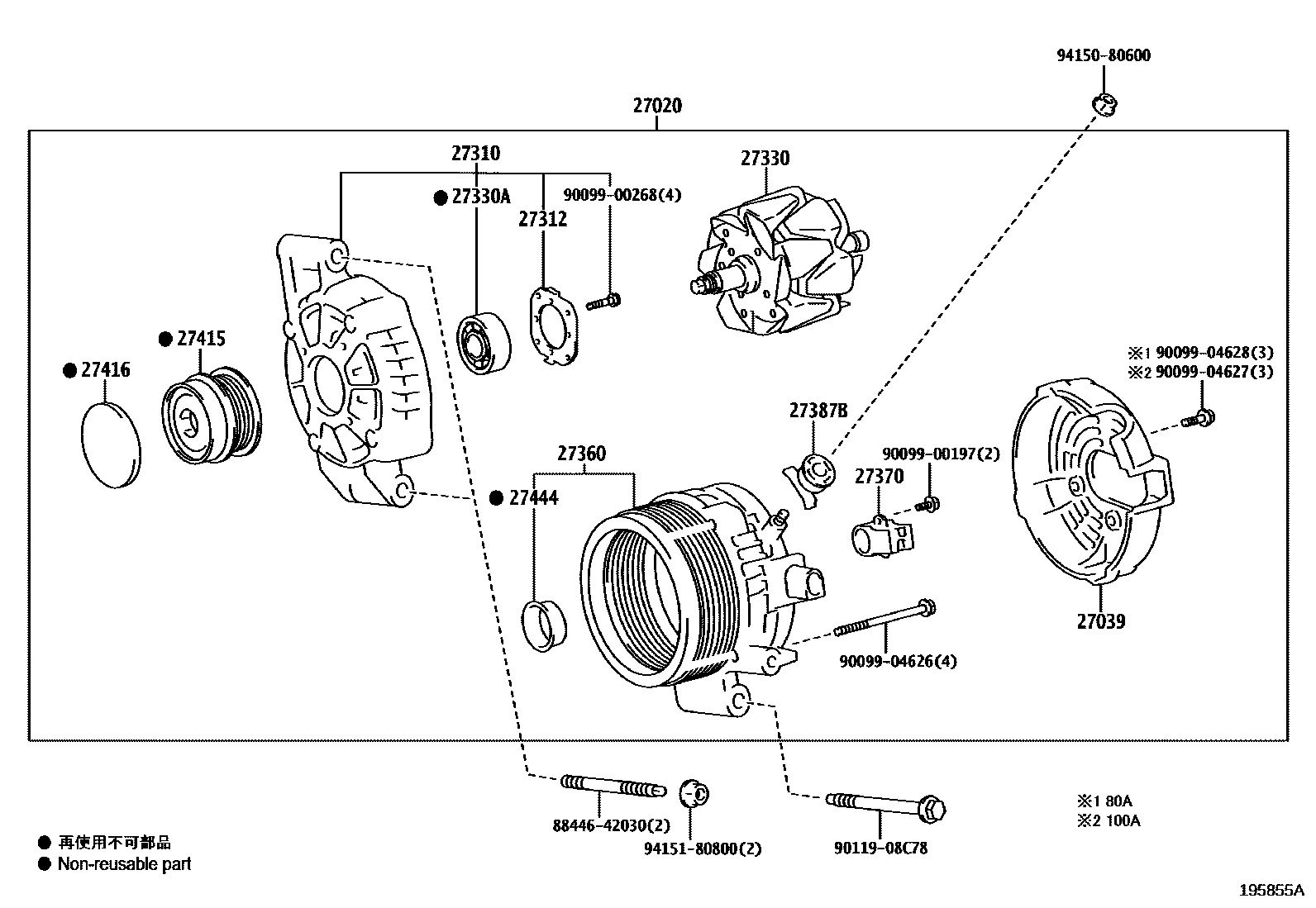

Toyota YARIS CROSS — ALTERNATOR

27020ALTERNATOR ASSY

main27060-K0040iM15AFKS..MXPB1#¥84,700202008-202307

sub27060-K0041¥76,900

main27060-K0041iM15AFKS..MXPB1#¥76,900202308-202401

27039COVER, ALTERNATOR REAR END

main27039-21211iM15AFKS..MXPB1#202308-202401

main27039-47310iM15AFKS..MXPB1#202008-202308

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-K0010iM15AFKS..MXPB1#202008-202308

main27310-K0011iM15AFKS..MXPB1#202308-202401

27312PLATE, RETAINER

main27312-72100iM15AFKS..MXPB1#¥0202008-202401

27330ROTOR ASSY, ALTERNATOR

main27330-21211iM15AFKS..MXPB1#202308-202401

main27330-47310iM15AFKS..MXPB1#202008-202308

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10227iM15AFKS..MXPB1#202008-202401

27360COIL ASSY, ALTERNATOR

main27360-K0010iM15AFKS..MXPB1#202008-202308

main27360-K0011iM15AFKS..MXPB1#202308-202401

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220iM15AFKS..MXPB1#¥0202008-202401

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-47310iM15AFKS..MXPB1#¥0202008-202401

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-15010iM15AFKS..MXPB1#¥5,500202008-202401

27416CAP, ALTERNATOR PULLEY

main27416-47010iM15AFKS..MXPB1#¥340202008-202401

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190iM15AFKS..MXPB1#¥0202008-202401

8844642030BOLT, IDLE PULLEY

main88446-42030¥0

9009900197

main90099-00197

9009900268

main90099-00268¥0

9009904626

main90099-04626¥0

9009904627

main90099-04627¥0

9009904628

main90099-04628¥0

9011908C78

main90119-08C78¥0

9415080600

main94150-80600¥60

9415180800

main94151-80800¥80

21 parts on this diagram · 1 diagram in section
