Toyota YARIS CROSS — TRANSAXLE ASSY(HEV OR BEV OR FCEV)

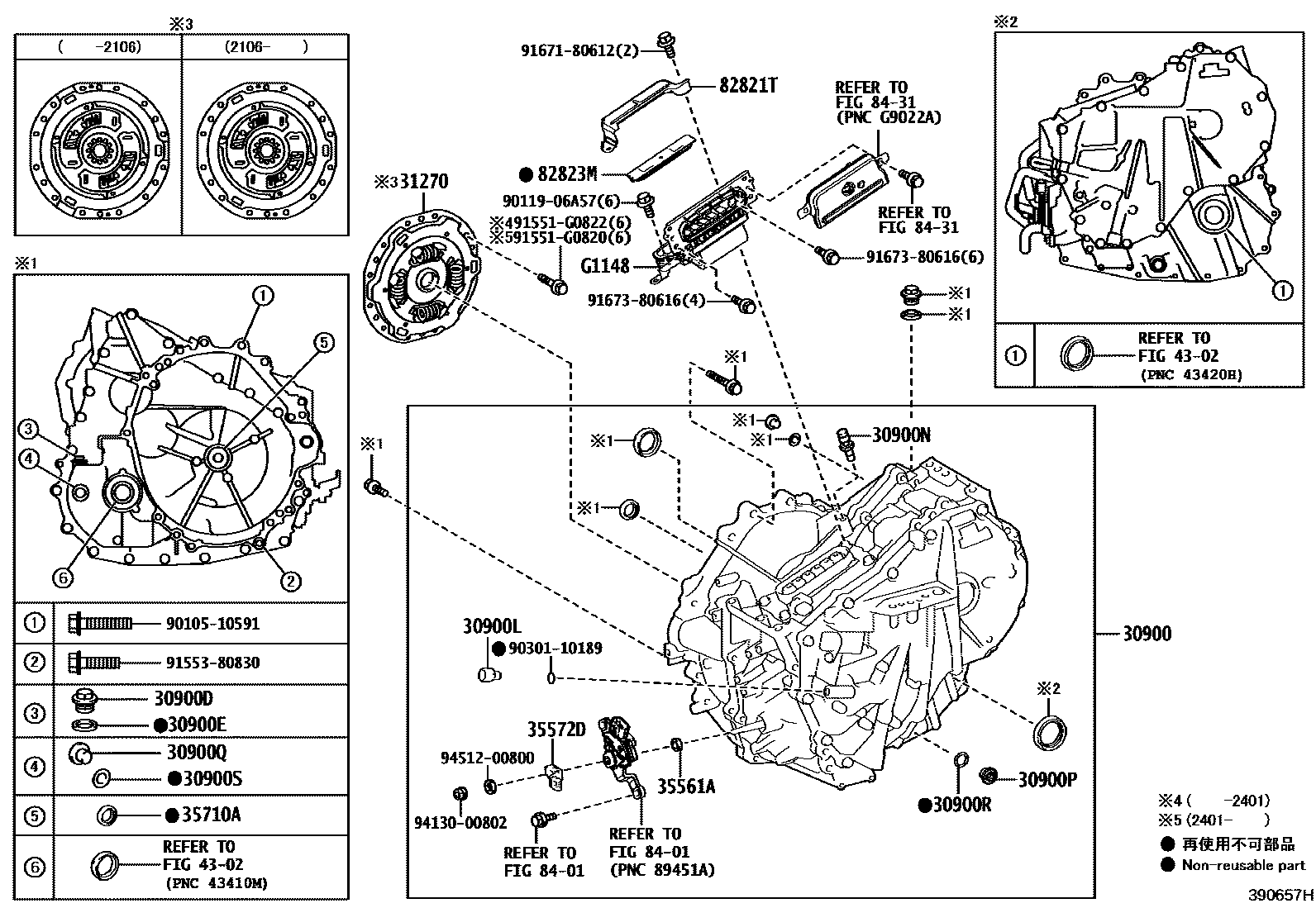

Parts diagram

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-52040i¥270,000202008-202401

main30900-52040i¥270,000202401

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060i¥240202008-202401

main90341-18060i¥240202401

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008i¥110202008-202401

main90430-18008i¥110202401

30900LUNION(FOR TRANSAXLE HOUSING)

main90404-16031i¥340202008-202401

main90404-16031i¥340202401

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201i¥120202008-202401

main90930-03201i¥120202401

30900PPLUG, DRAIN(HEV)

main90341-18016i¥190202008-202401

main90341-18016i¥190202401

30900QPLUG, FILLER(HEV)

main90341-18016i¥190202008-202401

main90341-18016i¥190202401

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008i¥110202008-202401

main90430-18008i¥110202401

30900SGASKET, FILLER PLUG(HEV)

main90430-18008i¥110202008-202401

main90430-18008i¥110202401

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-K0012i¥30,400202008-202106

sub31270-K0H00¥33,500

main31270-K0013i¥27,600202106-202401

main31270-K0013i¥27,600202401

35561ASEAL, TYPE T OIL(FOR PARKING LOCK SHAFT)

main90311-12016i¥190202008-202401

main90311-12016i¥190202401

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-K0010i¥680202008-202401

main35572-K0010i¥680202401

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025i¥270202008-202401

main90311-25025i¥270202401

4302

82821TCOVER, CONNECTOR

main82821-52350i¥1,260202008-202401

main82821-52350i¥1,260202401

82823MCAP, TERMINAL

main82823-47040i¥700202008-202401

main82823-47040i¥700202401

8401

8431

G1148CABLE, MOTOR

mainG1148K0010i202008-202401

mainG1148K0010i202401

9010510591

main90105-10591¥120

9011906A57

main90119-06A57¥60

9030110189

main90301-10189¥170

91551G0820

main91551-G0820¥80

91551G0822

main91551-G0822¥80

9155380830

main91553-80830¥80

9167180612

main91671-80612¥60

9167380616

main91673-80616¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

29 parts on this diagram · 3 diagrams in section
