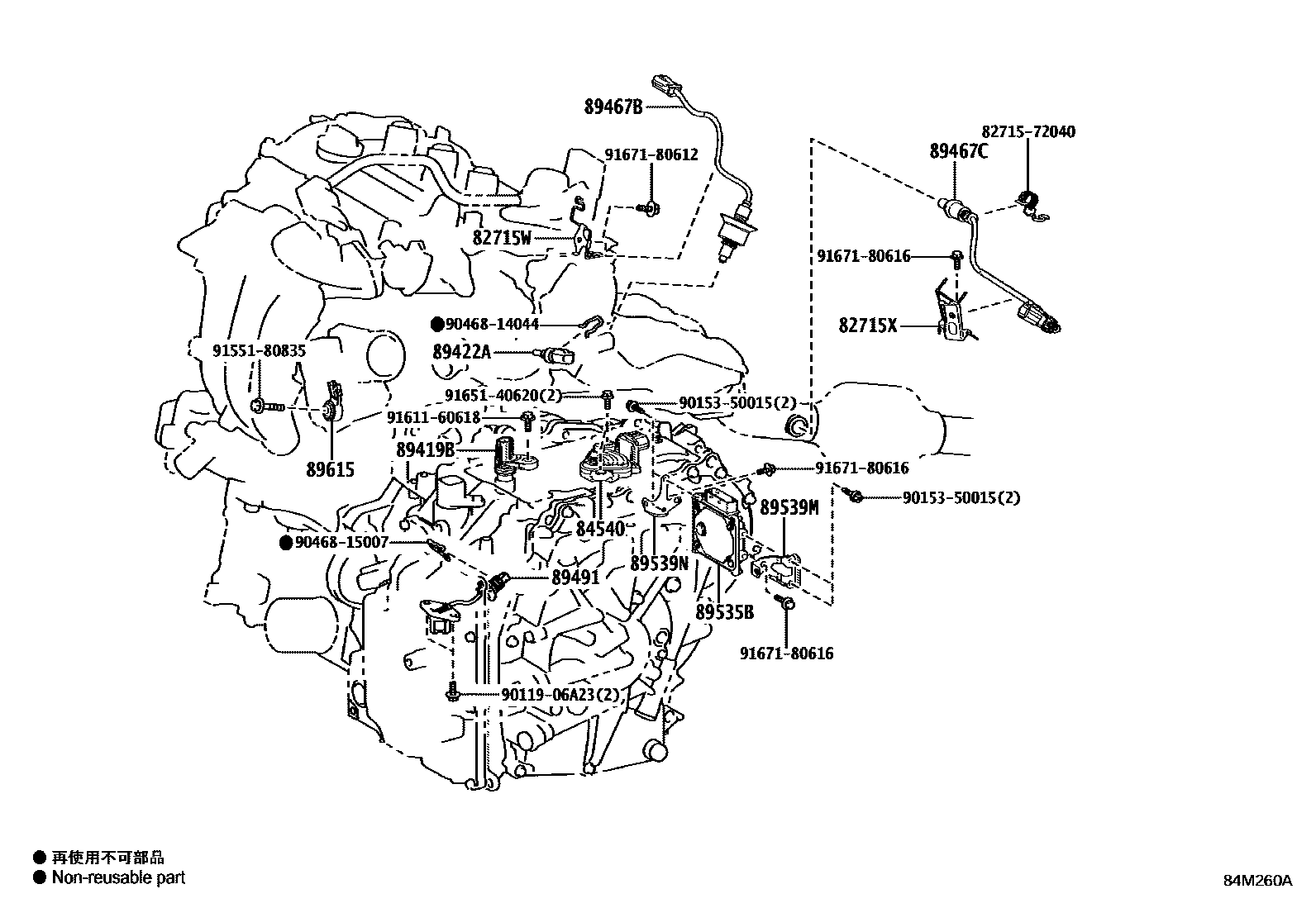

Toyota YARIS CROSS — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1DOOR & ROOF 0011 1FLOOR & BACK DOOR 1/2 0012 1FLOOR & BACK DOOR 2/2

82715WBRACKET, WIRING HARNESS CLAMP

main82715-K0030iMXPB10,MXPJ1#¥200202008-202401

main82715-K0030iMXPJ1#¥200202401

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main8946A-52030iMXPJ1#¥770202401

main8946A-52030iMXPB10,MXPJ1#¥770202008-202401

84540SWITCH ASSY, NEUTRAL START

main84540-K0010iMXPB10¥7,600202008-202401

89419BSENSOR, SHIFT STROKE

main89419-K2010iMXPB10¥4,100202008-202401

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMXPB10,MXPJ1#¥2,410202008-202401

main89422-33040iMXPJ1#¥2,410202401

89467BSENSOR, AIR FUEL RATIO

main89467-K0020iMXPB10,MXPJ1#¥9,900202008-202401

main89467-K0020iMXPJ1#¥9,900202401

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-52370iMXPJ1#¥9,900202401

main89467-K0030iMXPB10,MXPJ1#¥10,900202008-202401

89491SENSOR, ENGINE OIL LEVEL

main89491-50081iMXPB10,MXPJ1#¥3,670202008-202204

sub89491-50082¥3,330

main89491-50082iMXPB10,MXPJ1#¥3,330202205-202401

main89491-50082iMXPJ1#¥3,330202401

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-52030iMXPB10202208-202401

*614

main89535-52040iMXPB10202008-202208

*614

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-K0010iMXPB10¥280202008-202401

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-K0020iMXPB10¥300202008-202401

89615SENSOR, KNOCK CONTROL

main89615-20090iMXPJ1#¥2,370202401

main89615-20090iMXPB10,MXPJ1#¥2,370202008-202401

8271572040BRACKET,WIRING HARNESS CLAMP

main82715-72040¥220

9011906A23

main90119-06A23¥60

9015350015

main90153-50015¥60

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180835

main91551-80835¥80

9161160618

main91611-60618¥120

9165140620

main91651-40620¥70

9167180612

main91671-80612¥60

9167180616

main91671-80616¥60

22 parts on this diagram · 12 diagrams in section
