Toyota YARIS CROSS — STEERING WHEEL

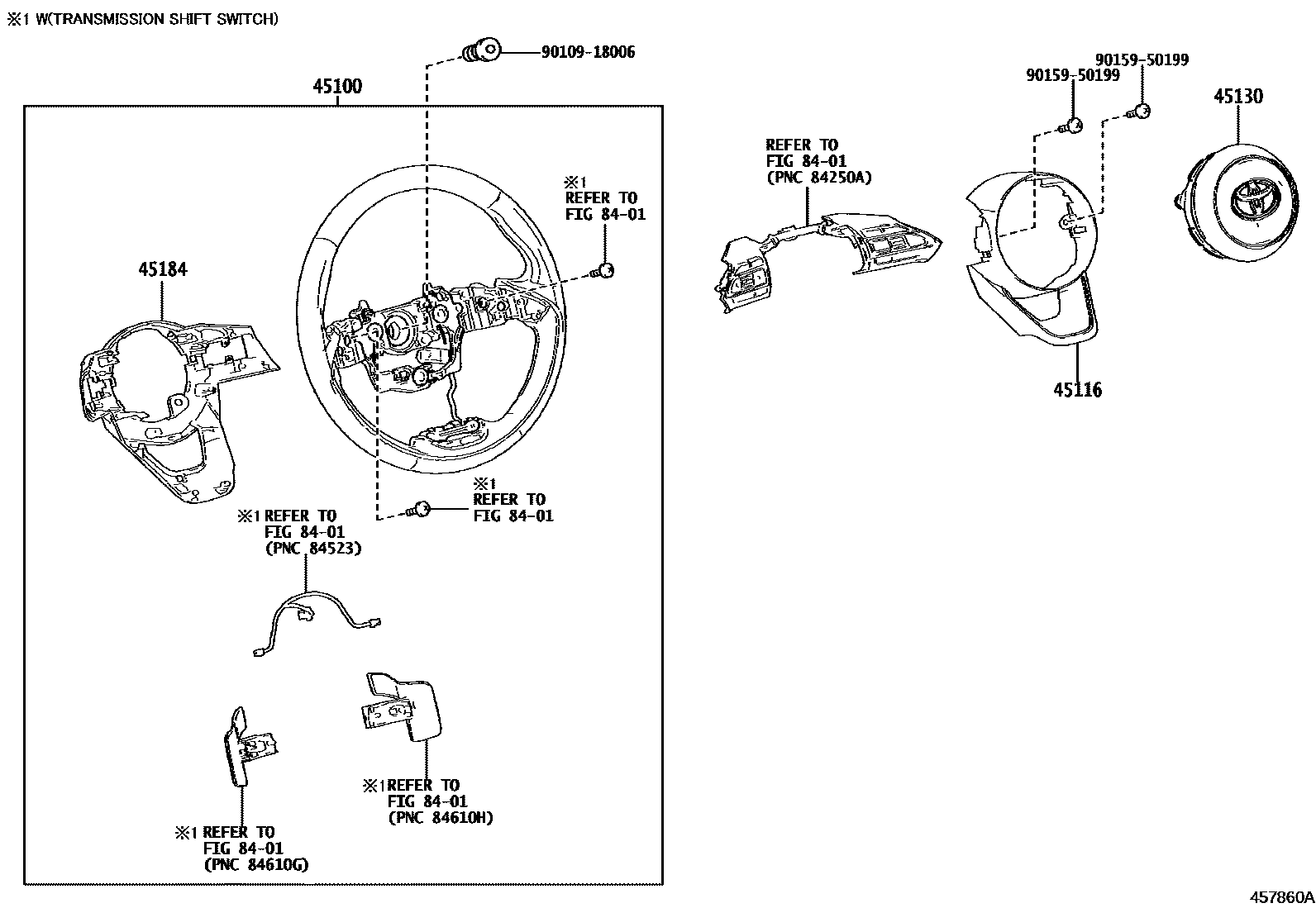

Parts diagram

45100WHEEL ASSY, STEERING

main45100-52680-C0i202208-202212

3-SPOKE,LEATHER,BLACK,TRIM2#,4#,6#

main45100-52681-C0i202301-202401

3-SPOKE,LEATHER,BLACK,TRIM2#,4#,6#

main45100-52721-C0i202401

3-SPOKE,LEATHER,BLACK,TRIM2#,4#

main45100-52730-C0i202008-202212

3-SPOKE,URETHANE,BLACK,TRIM2#,4#,6#

main45100-52731-C0i202301-202401

3-SPOKE,URETHANE,BLACK,TRIM2#,4#,6#

main45100-52731-C0i202301-202401

3-SPOKE,URETHANE,SHIFT LEVER & KNOB-KNOB=PVC&STEERING WHEEL-URETHANE, WITH(STEERING VIBRATION),BLACK,TRIM2#,4#,6#

main45100-52801-C0i202401

3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#

main45100-52840-C0i202210-202212

3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#

main45100-52841-C0i202301-202401

3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-52220-C0i202210-202401

BLACK & SILVER METALLIC,TRIM2#

main45116-K0020-C1i202008-202401

BLACK,TRIM41

main45116-K0020-C2i202008-202401

SILVER,TRIM2#,40,6#

main45116-K0020-C6i202401

BLACK/DK.SILVER,TRIM2#,4#

45130BUTTON ASSY, HORN

main45130-52890-C0i202210-202401

BLACK,TRIM2#

main45130-52890-C0i202008-202401

BLACK,TRIM2#,4#,6#

main45130-52A30-C0i202401-202404

BLACK,TRIM2#,4#

main45130-52A30-C0i202401-202404

BLACK,TRIM2#

main45130-52A31-C0i202405

BLACK,TRIM2#

main45130-52A31-C0i202405

BLACK,TRIM2#,4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-52210-C0i202401

BLACK,TRIM2#,4#

main45184-52210-C0i202210-202401

BLACK,TRIM2#

main45184-52210-C0i202008-202401

BLACK,TRIM2#,4#,6#

main45184-K0020-C0i202208-202401

BLACK,TRIM2#,4#,6#

8401

9010918006

main90109-18006¥240

9015950199

main90159-50199¥70

7 parts on this diagram · 1 diagram in section
