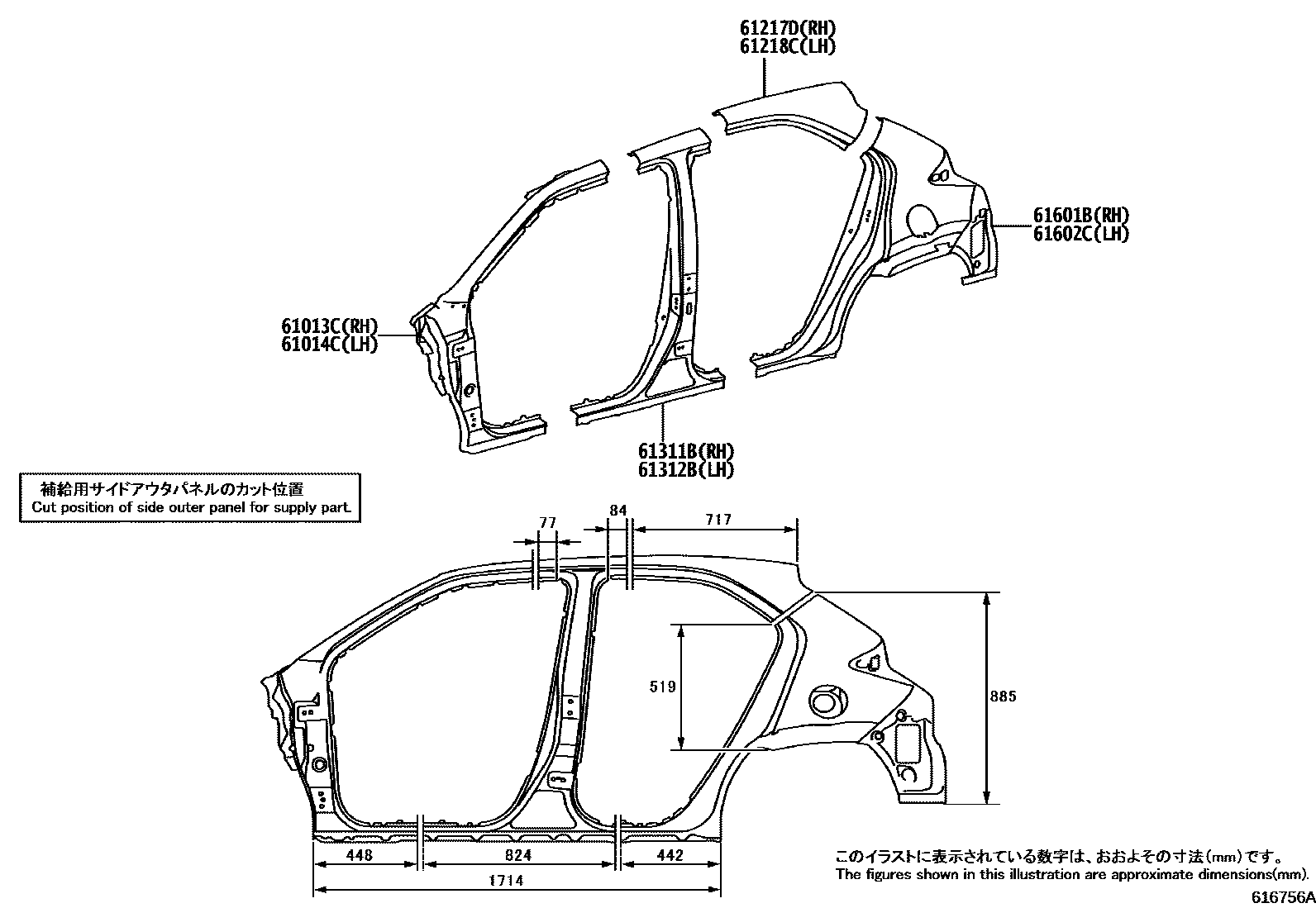

Toyota YARIS CROSS — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-52100iMXPB10,MXPJ1#¥13,000202008-202401

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-52090iMXPB10,MXPJ1#¥13,000202008-202401

61217DRAIL, ROOF SIDE, OUTER NO.4 RH

main61217-52040iMXPB10,MXPJ1#¥4,150202008-202401

61218CRAIL, ROOF SIDE, OUTER NO.4 LH

main61218-52040iMXPB10,MXPJ1#¥4,150202008-202401

61311BPILLAR, CENTER BODY, OUTER RH

main61311-52120iMXPB10,MXPJ1#¥12,700202008-202401

61312BPILLAR, CENTER BODY, OUTER LH

main61312-52110iMXPB10,MXPJ1#¥12,700202008-202401

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-52740iMXPB10,MXPJ1#¥38,400202008-202401

main61601-52790iMXPJ1#¥34,900202401

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-52880iMXPB10,MXPJ1#¥36,000202008-202401

8 parts on this diagram · 3 diagrams in section
